Central Door Locking System

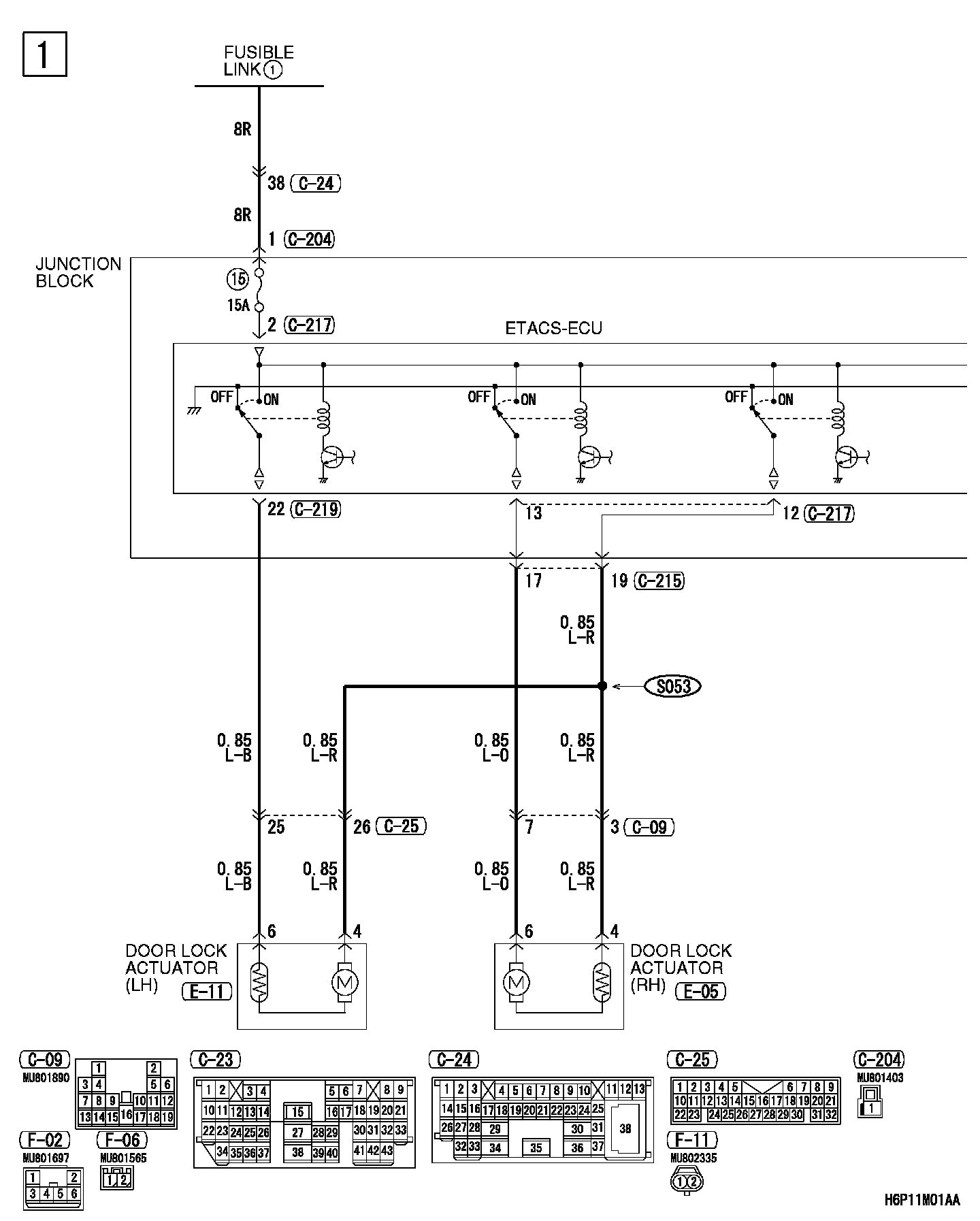

Central Door Locking System Part 1:

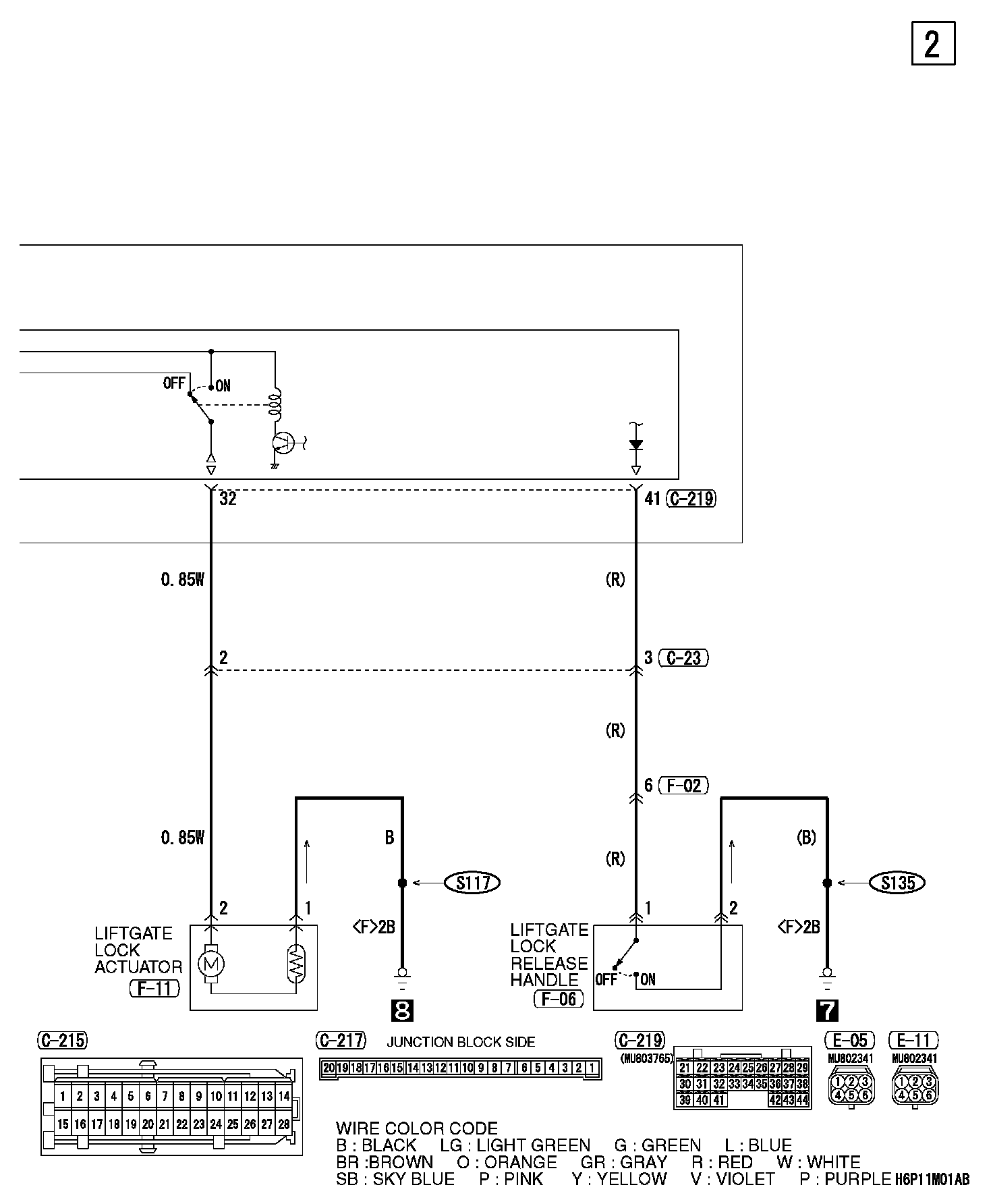

Central Door Locking System Part 2:

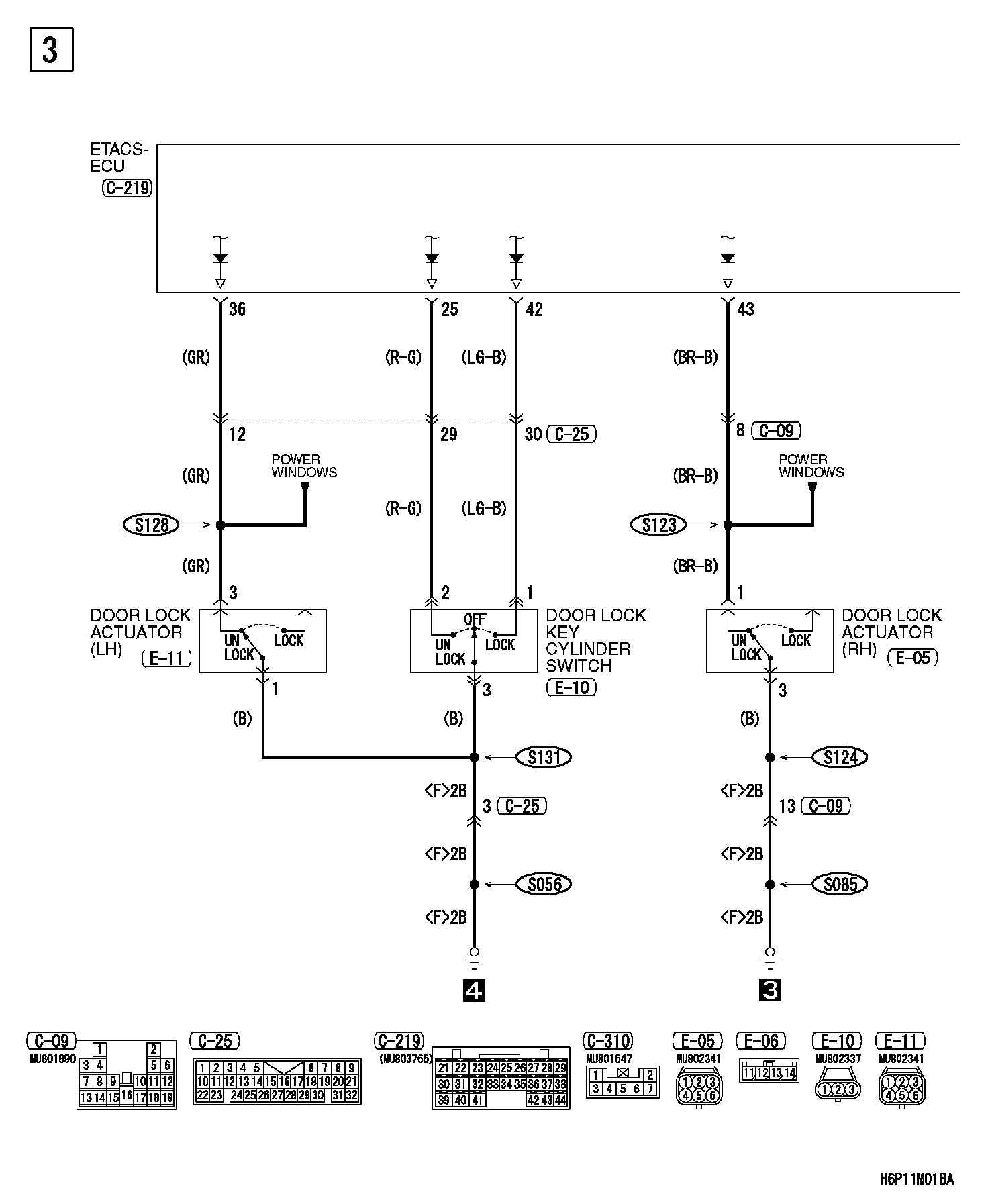

Central Door Locking System Part 3:

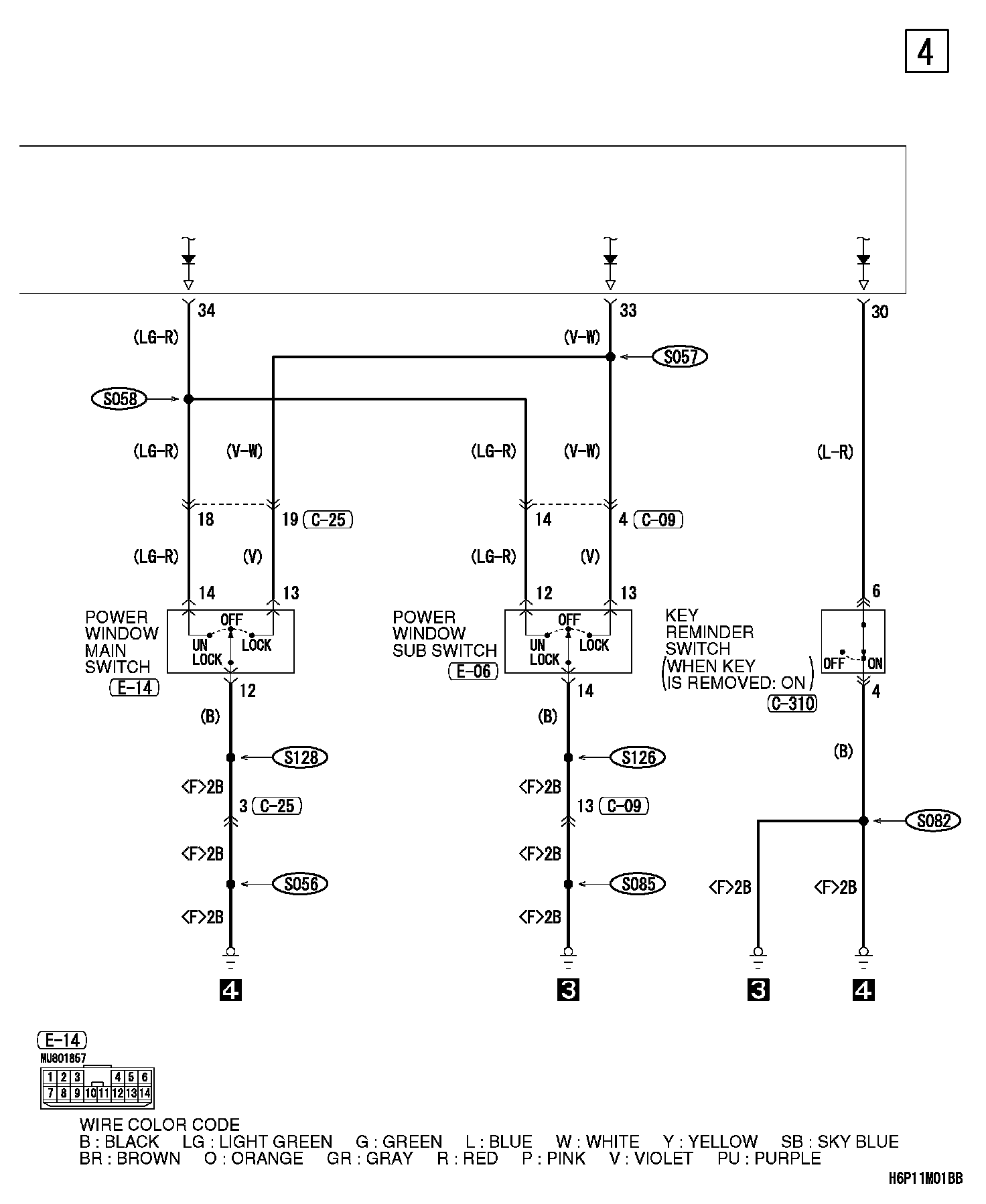

Central Door Locking System Part 4:

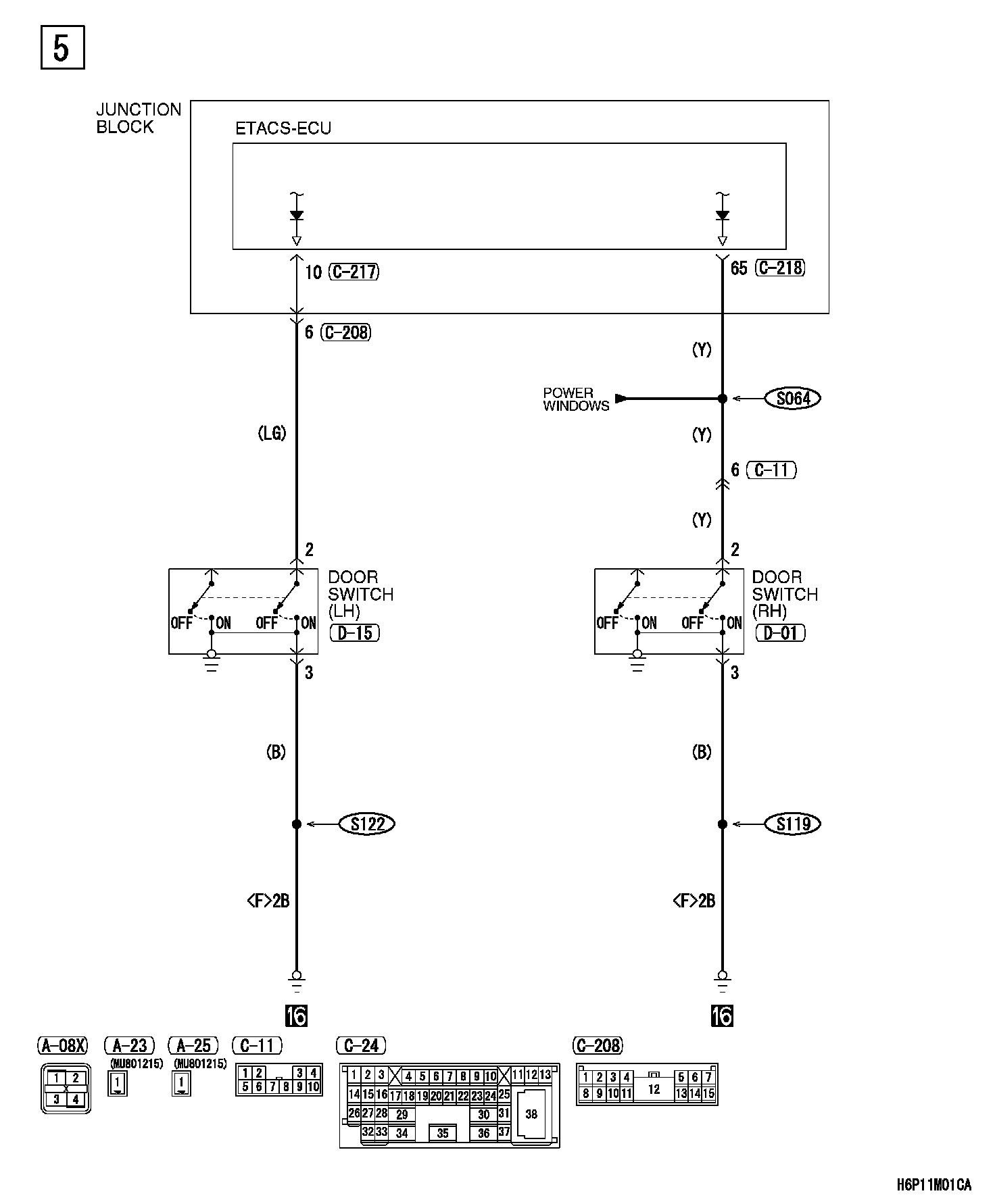

Central Door Locking System Part 5:

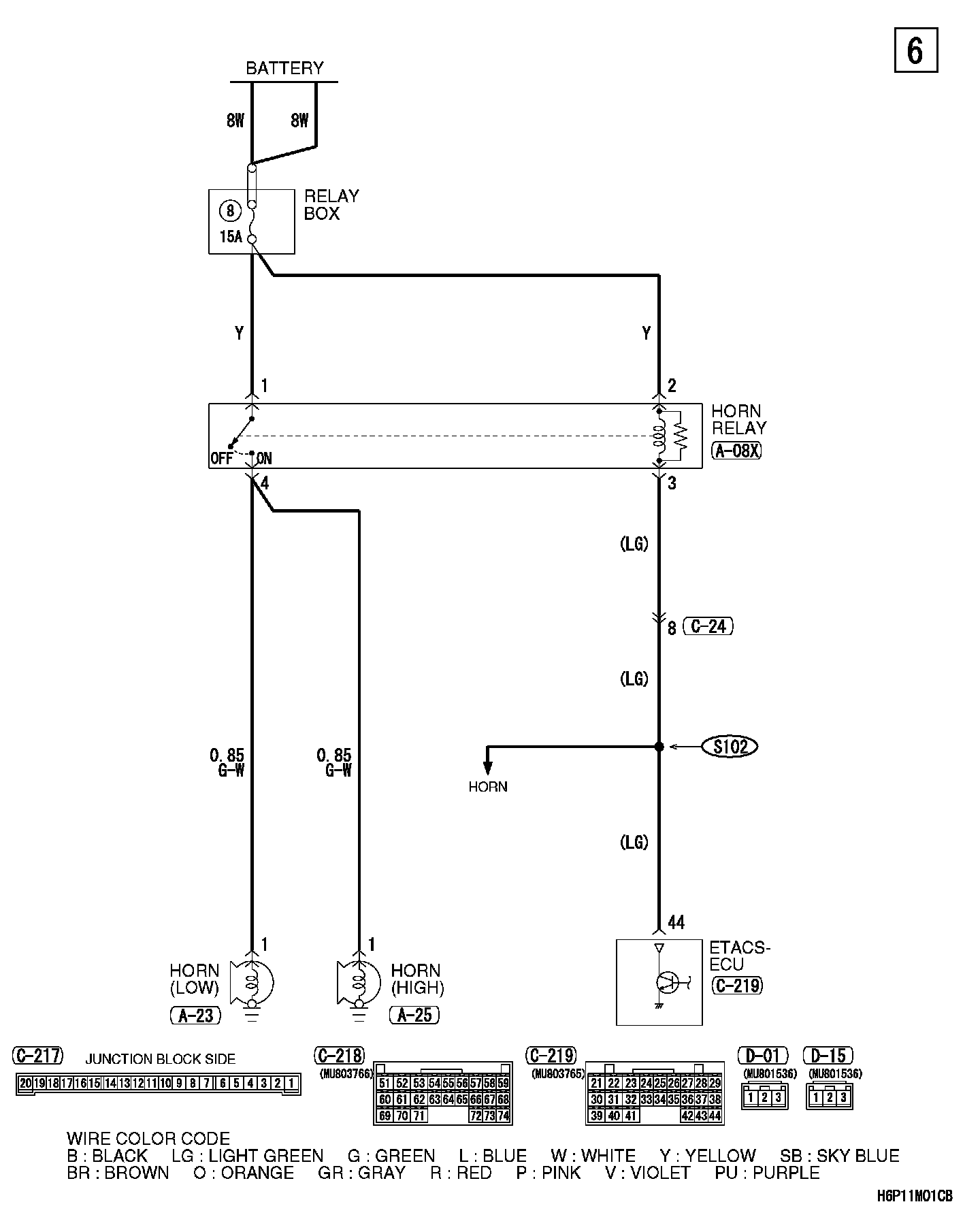

Central Door Locking System Part 6:

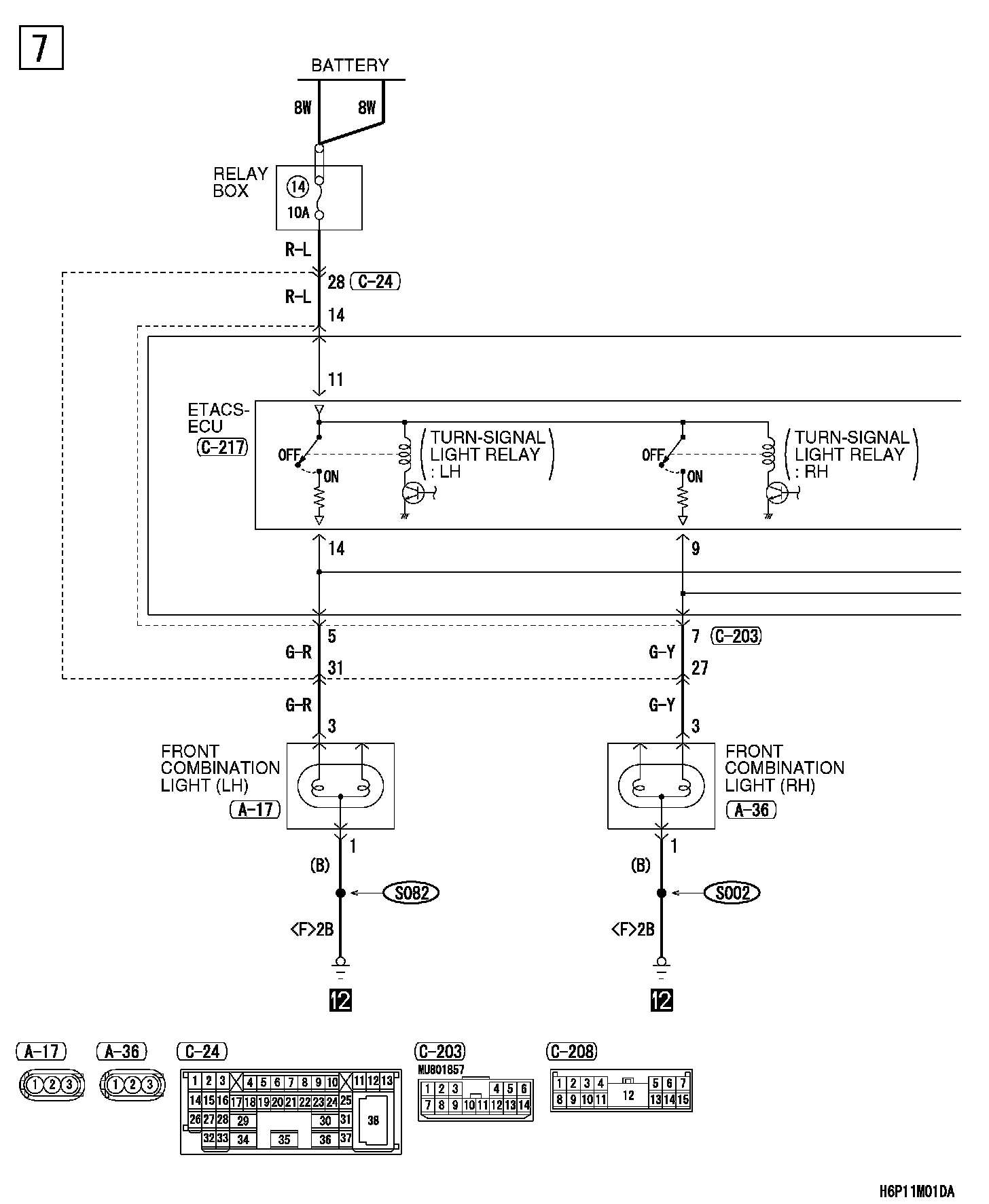

Central Door Locking System Part 7:

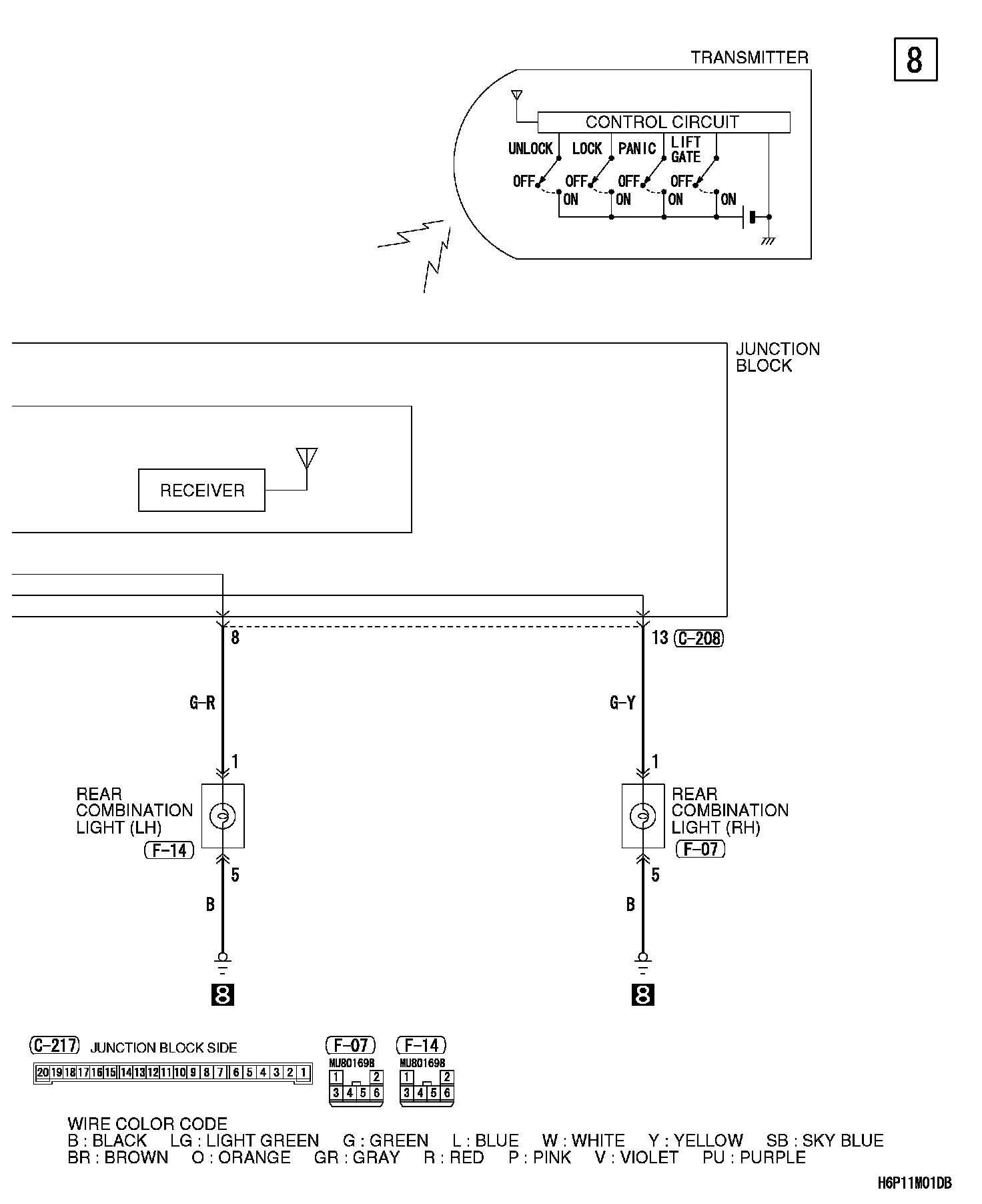

Central Door Locking System Part 8:

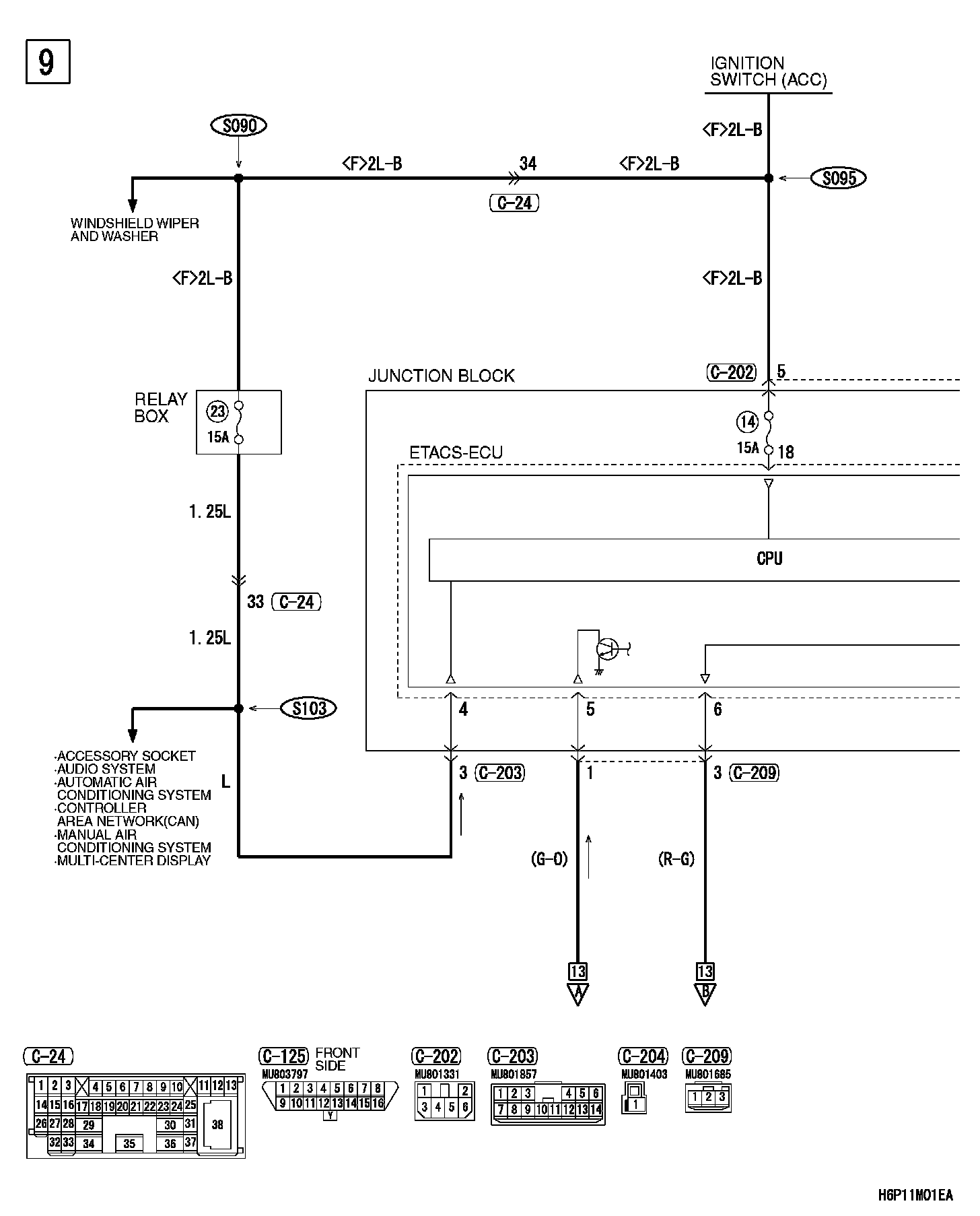

Central Door Locking System Part 9:

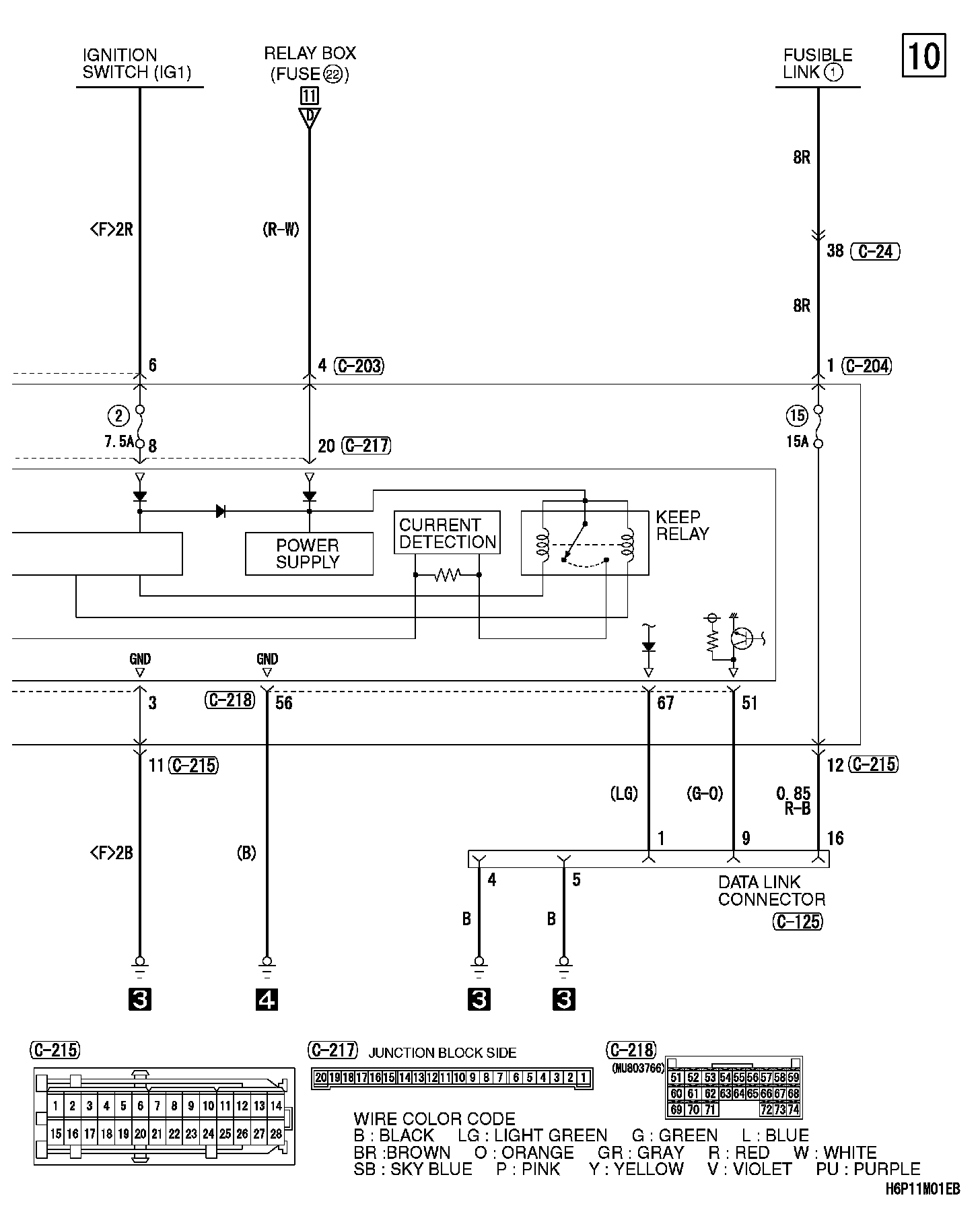

Central Door Locking System Part 10:

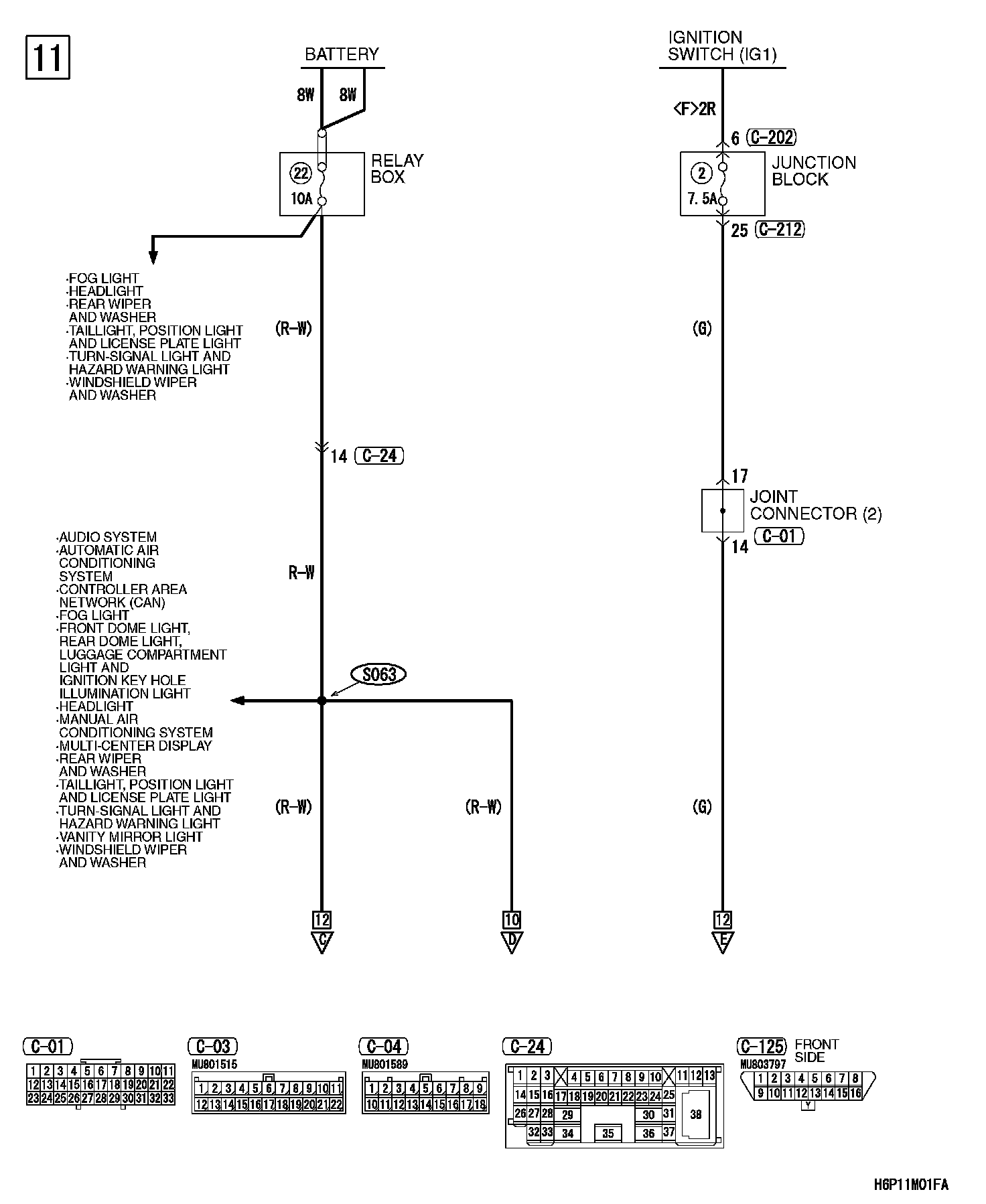

Central Door Locking System Part 11:

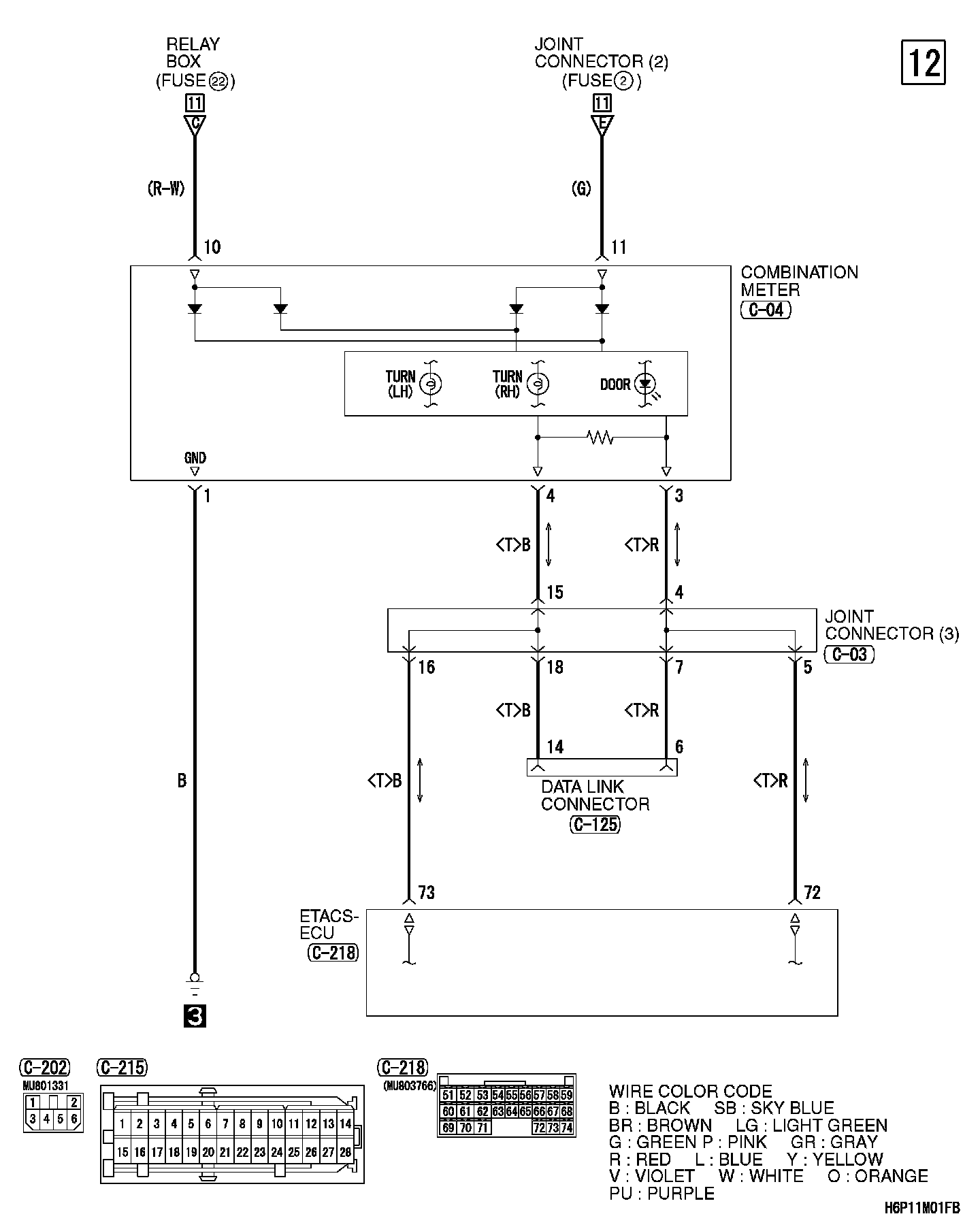

Central Door Locking System Part 12:

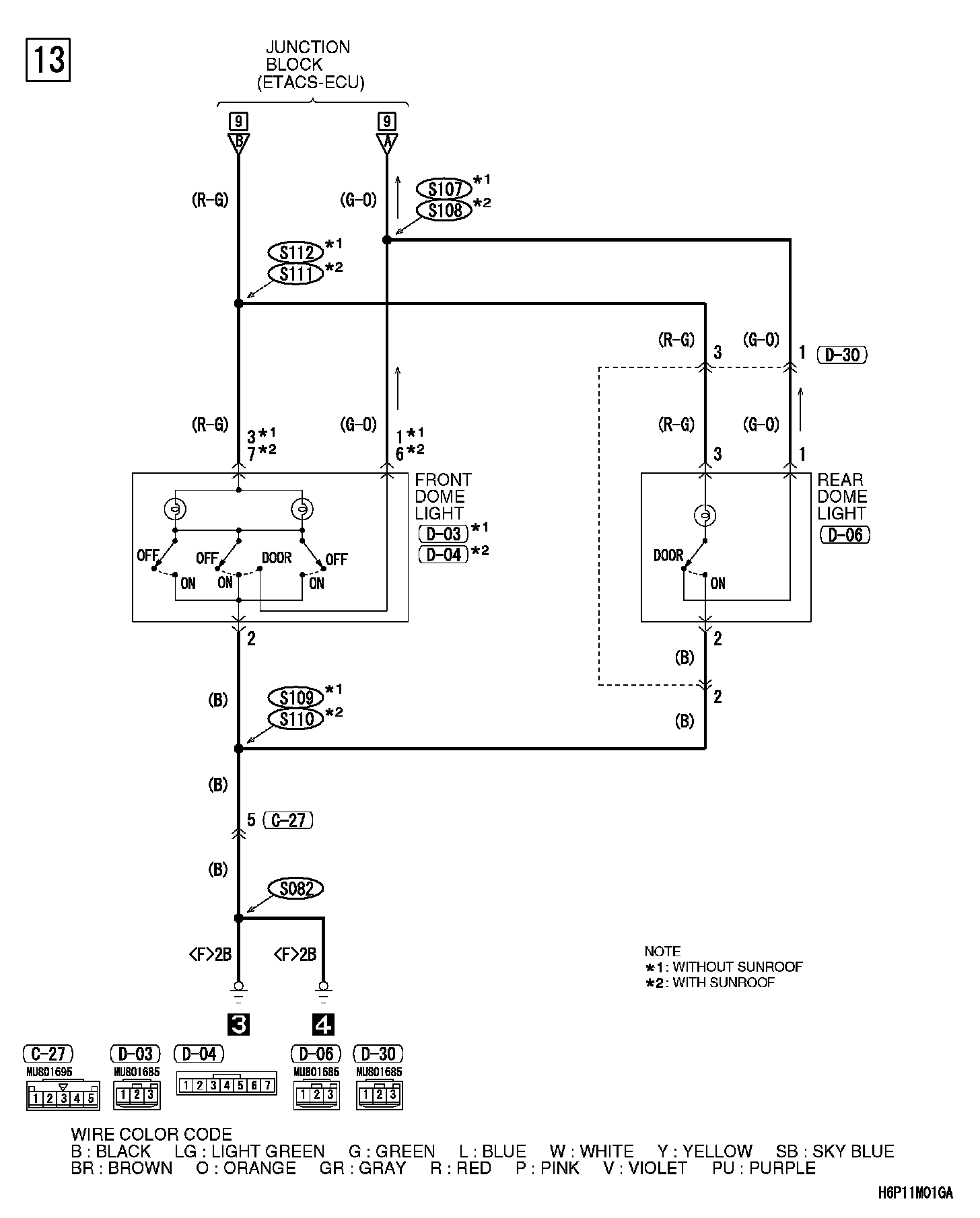

Central Door Locking System Part 13:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
