Garnishes and Moldings

GARNISHES AND MOLDINGS

REMOVAL AND INSTALLATION

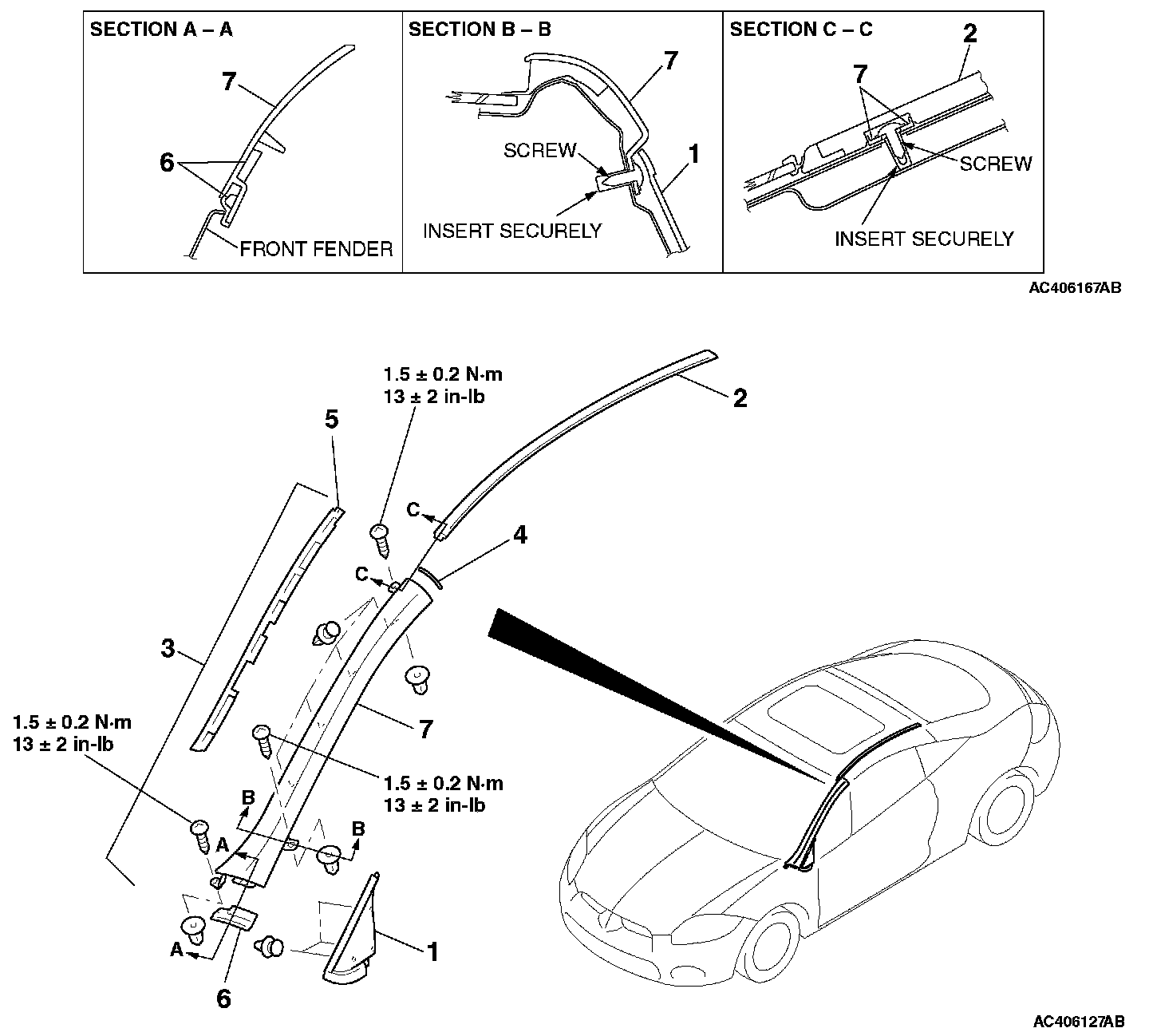

Removal Steps 1-7 (Part 1):

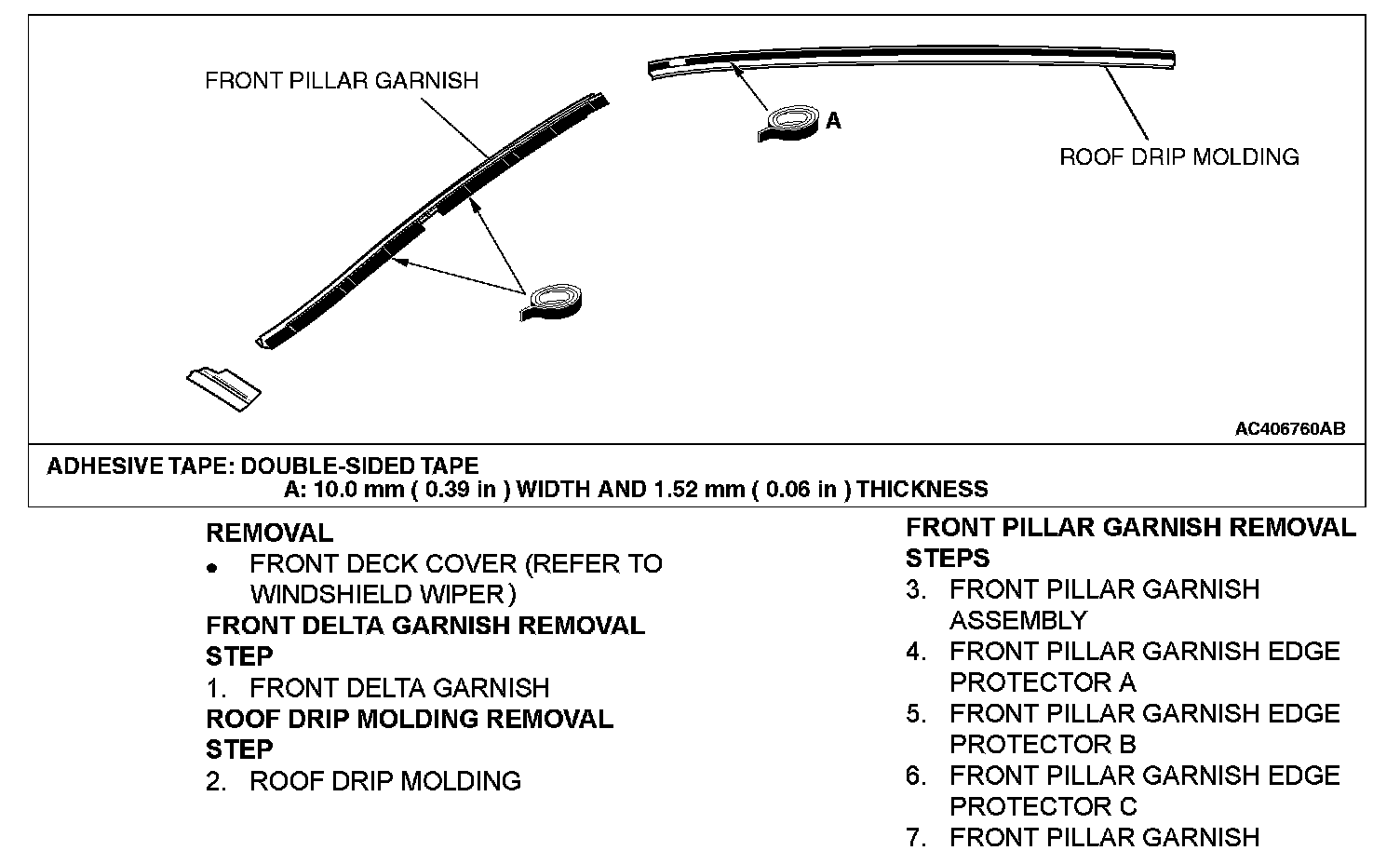

Removal Steps 1-7 (Part 2):






Required Special Tools:
- MB990784: Ornament Remover
