Home >> Mitsubishi >> 2006 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Interior Trim Panel >> Service and Repair

Trunk / Liftgate Interior Trim Panel: Service and Repair

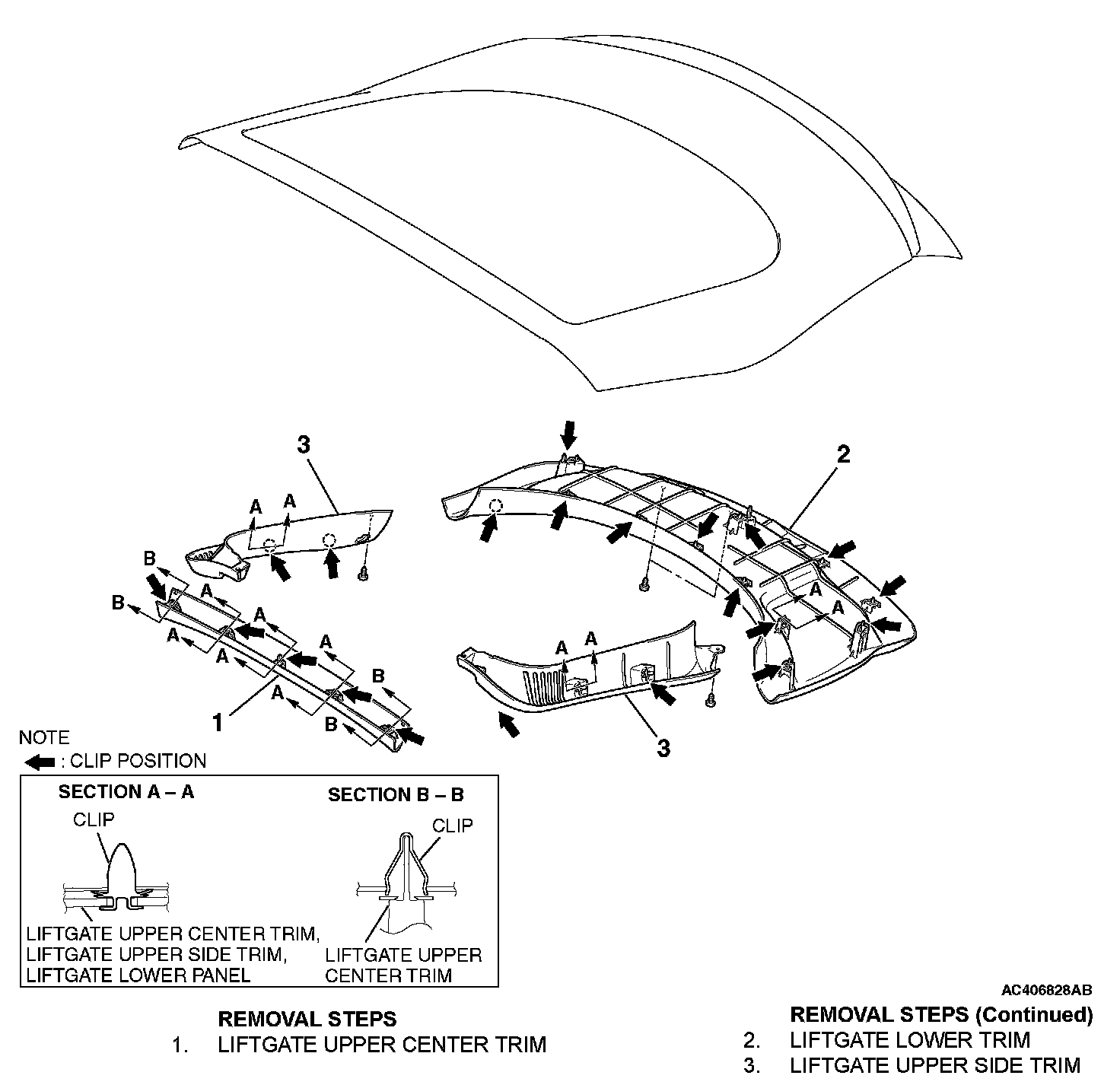

Removal Steps 1-3:
