Hood: Service and Repair

HOOD

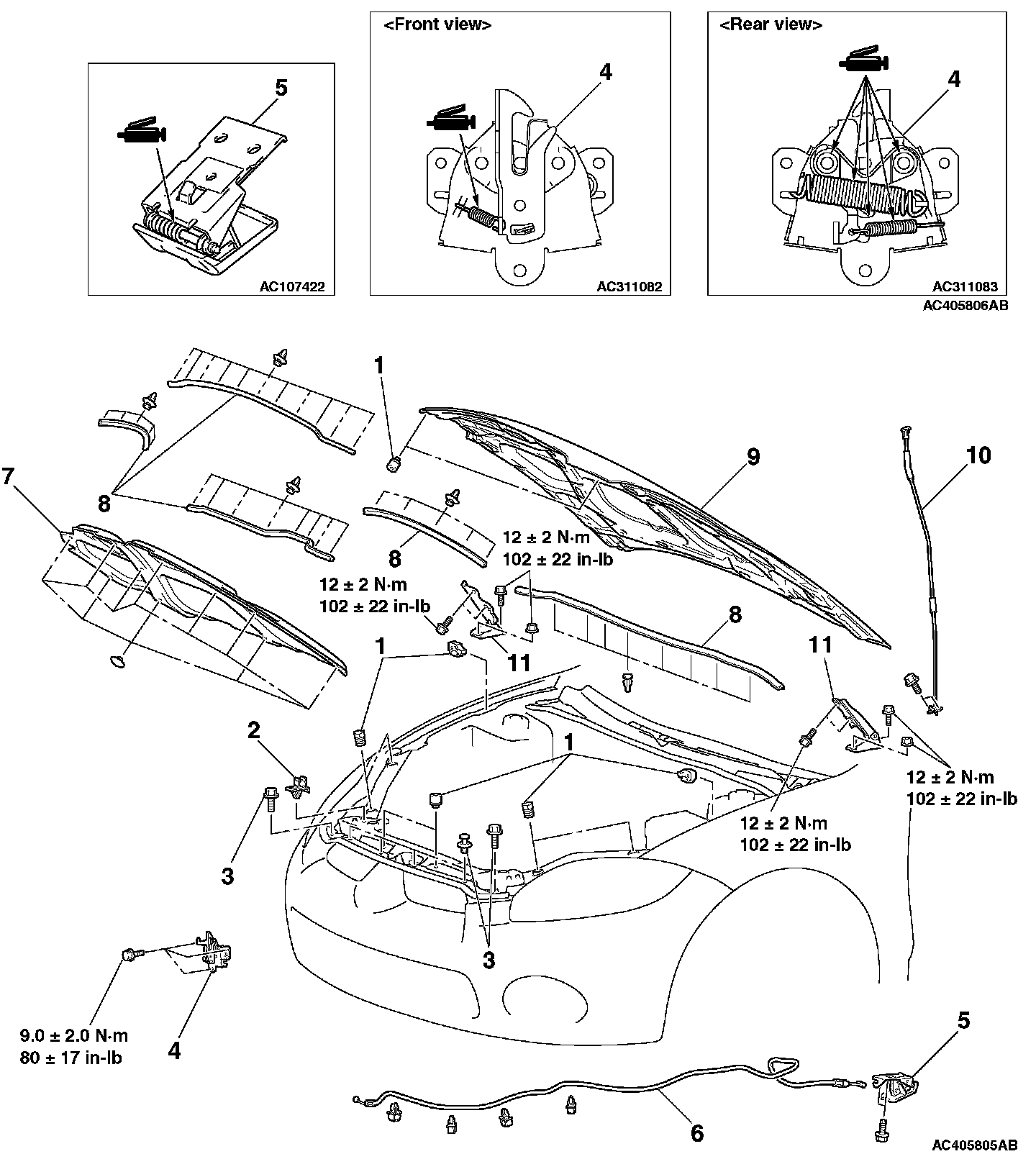

REMOVAL AND INSTALLATION

Post-installation Operation:

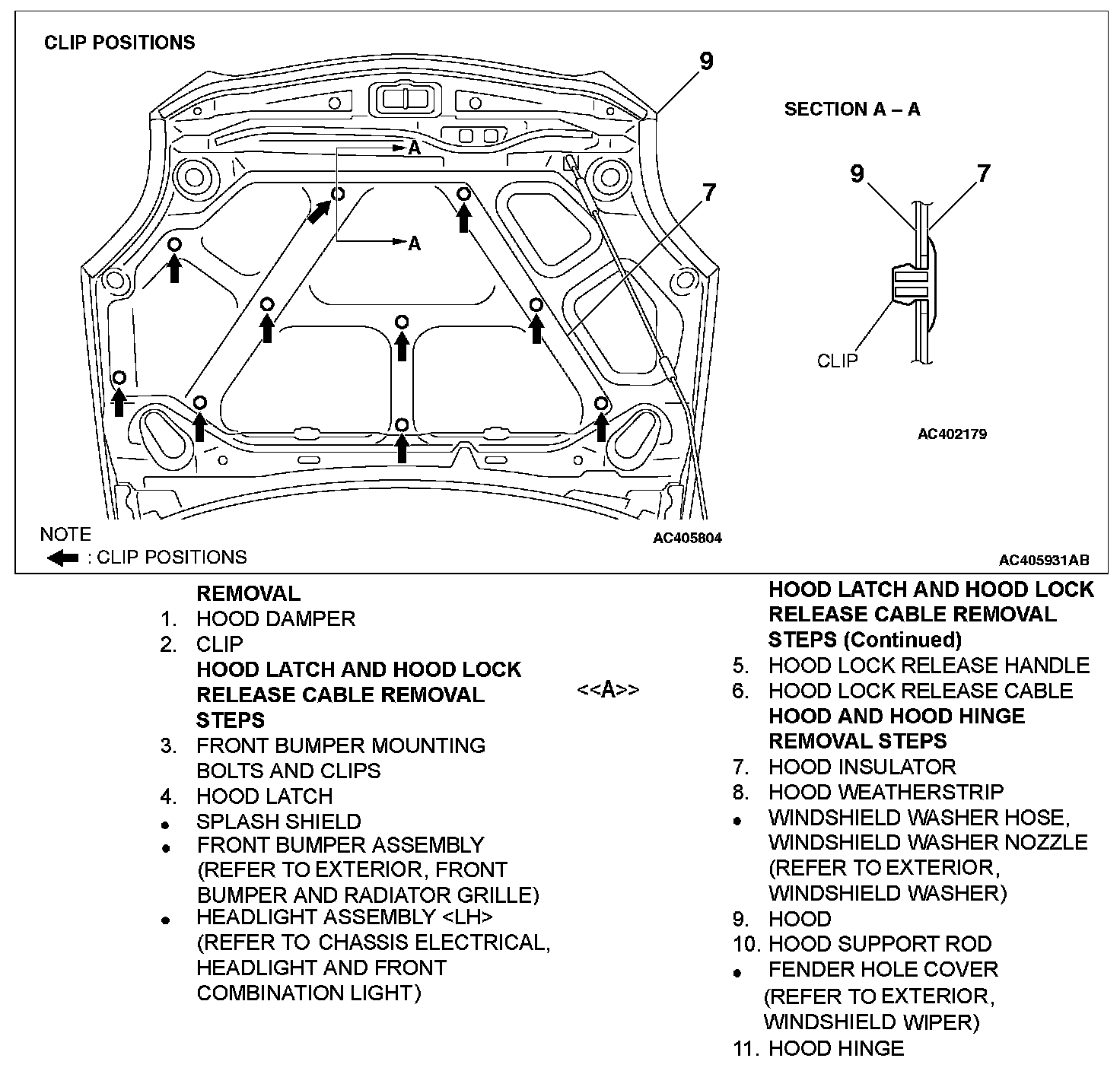

Removal Steps 1-11 (Part 1):

Removal Steps 1-11 (Part 2):

REMOVAL SERVICE POINT

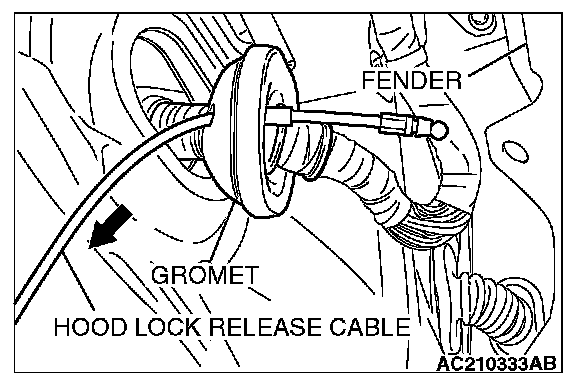

[[A]] HOOD LOCK RELEASE CABLE REMOVAL






Release the grommet as shown, and pull out the hood lock release cable in the arrow direction (passenger compartment side).

NOTE: If you attempt to pull out the hood lock release cable in the opposite direction, the end of the hood lock release cable will engage the grommet and prevent cable removal.
