Front Door: Service and Repair

DOOR ASSEMBLY

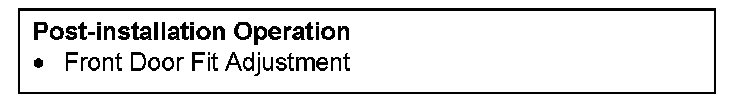

Post-installation Operation:

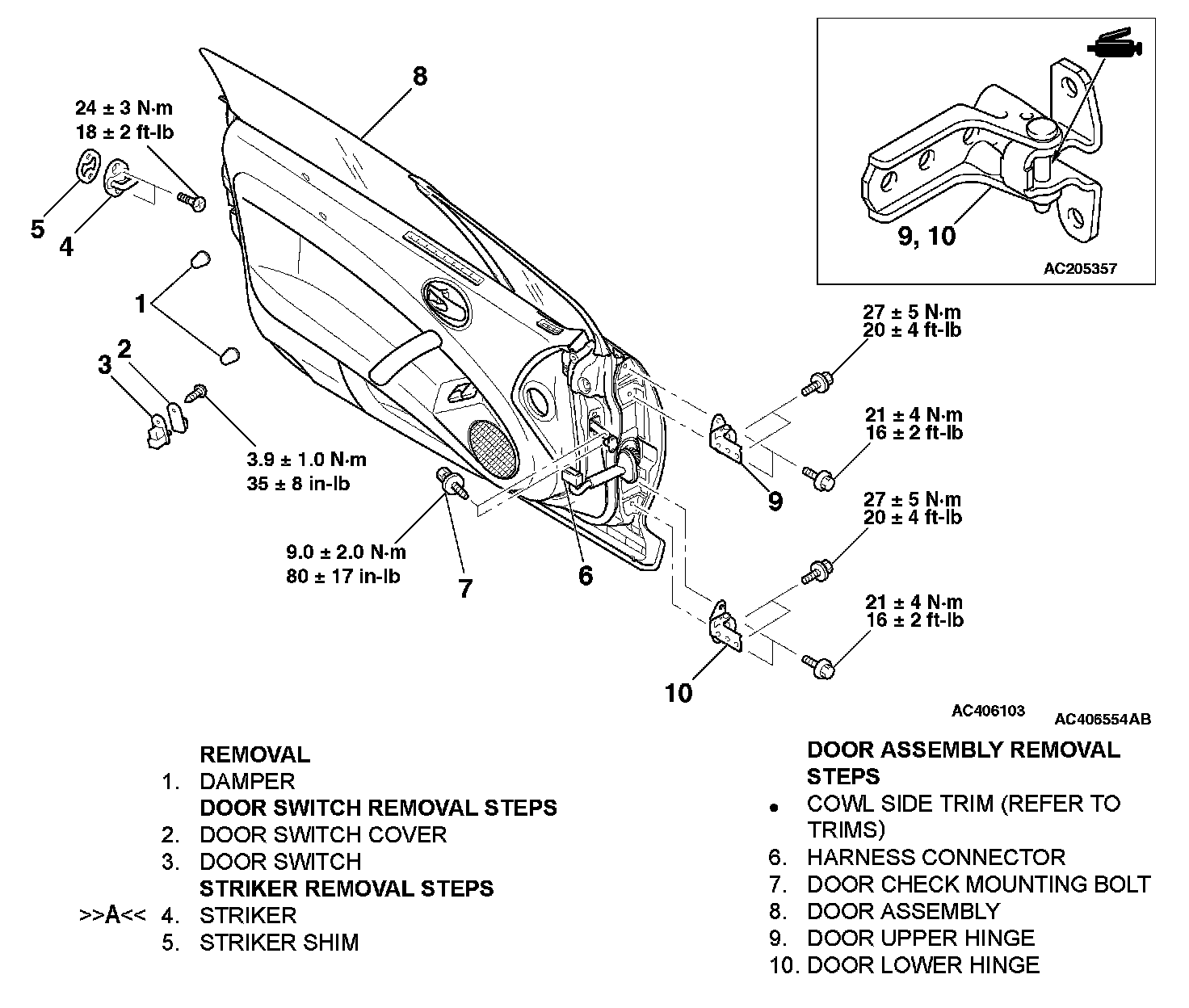

Removal Steps 1-10:

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

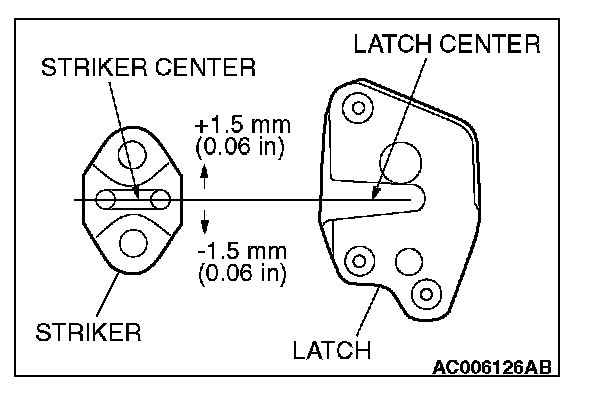

]]A[[ STRIKER INSTALLATION




Align the center of the striker and latch within ± 1.5 mm (0.06 inch), and install.
