Front Door Latch: Service and Repair

DOOR HANDLE AND LATCH

Pre-removal & Post-installation Operation:

Removal Steps 1-6:

REMOVAL AND INSTALLATION

CAUTION:
- When the door lock key cylinder is replaced by key set of illustration [A], register the encrypted code with the bar code on the ignition key in the key set. Refer to Encrypted Code Registration Criteria Table in Antitheft and Alarm Systems.

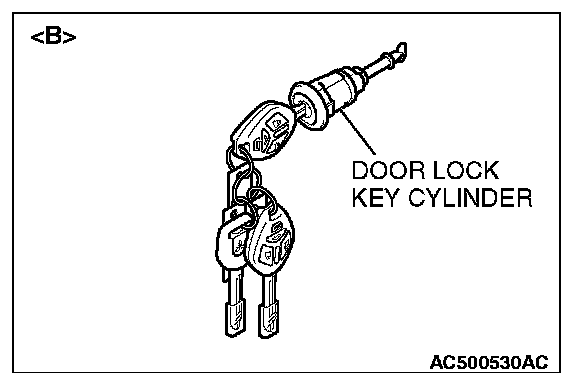

- When replacing by the door lock key cylinder of illustration [B], do not register the encrypted code with the bar code on the ignition key supplied simultaneously.

Required Special Tool:
- MB991223: Harness Set

INSTALLATION SERVICE POINTS

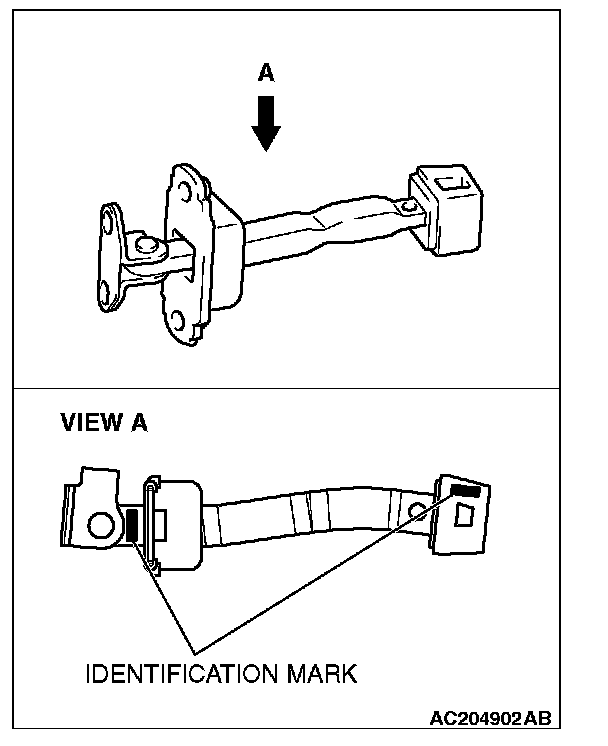

]]A[[ DOOR CHECK INSTALLATION

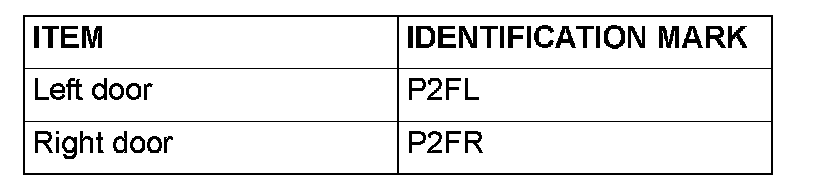

Install the door check so that the identification mark faces upwards.
