Amplifier: Service and Repair

AMPLIFIER

REMOVAL AND INSTALLATION

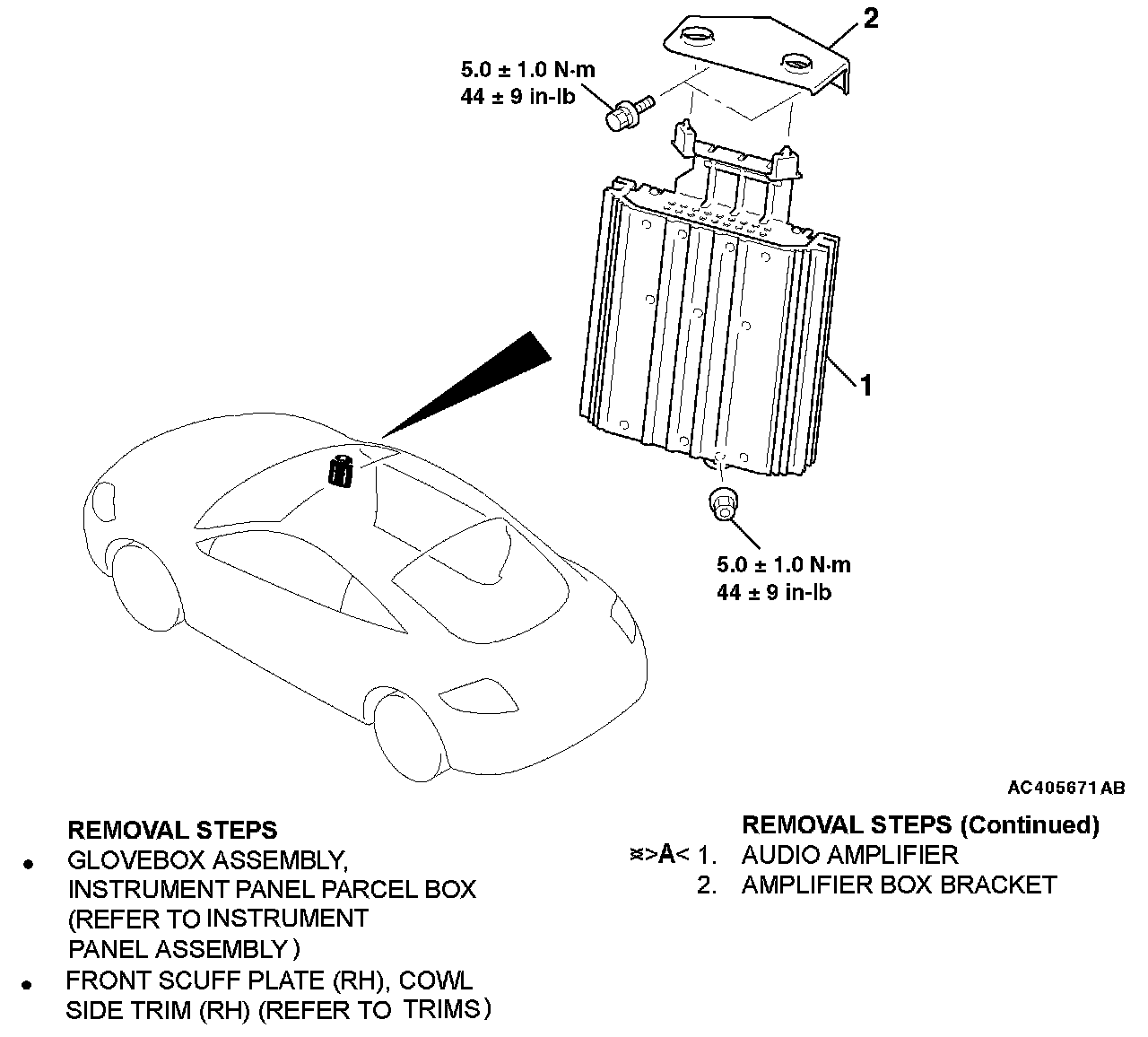

Removal Steps 1-2:






INSTALLATION SERVICE POINTS

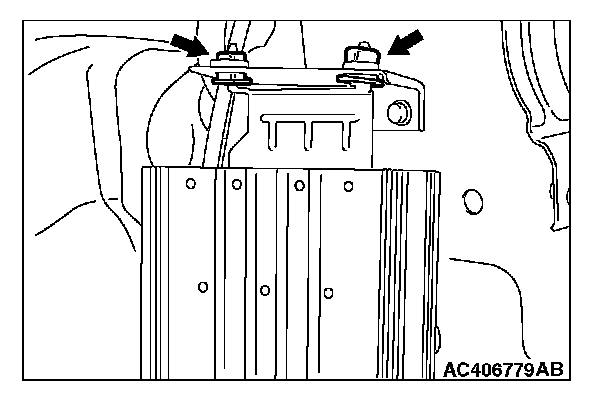

>>A<< AUDIO AMPLIFIER INSTALLATION




Install while aligning with the amplifier mounting hole.
