Instrument Panel, Gauges and Warning Indicators

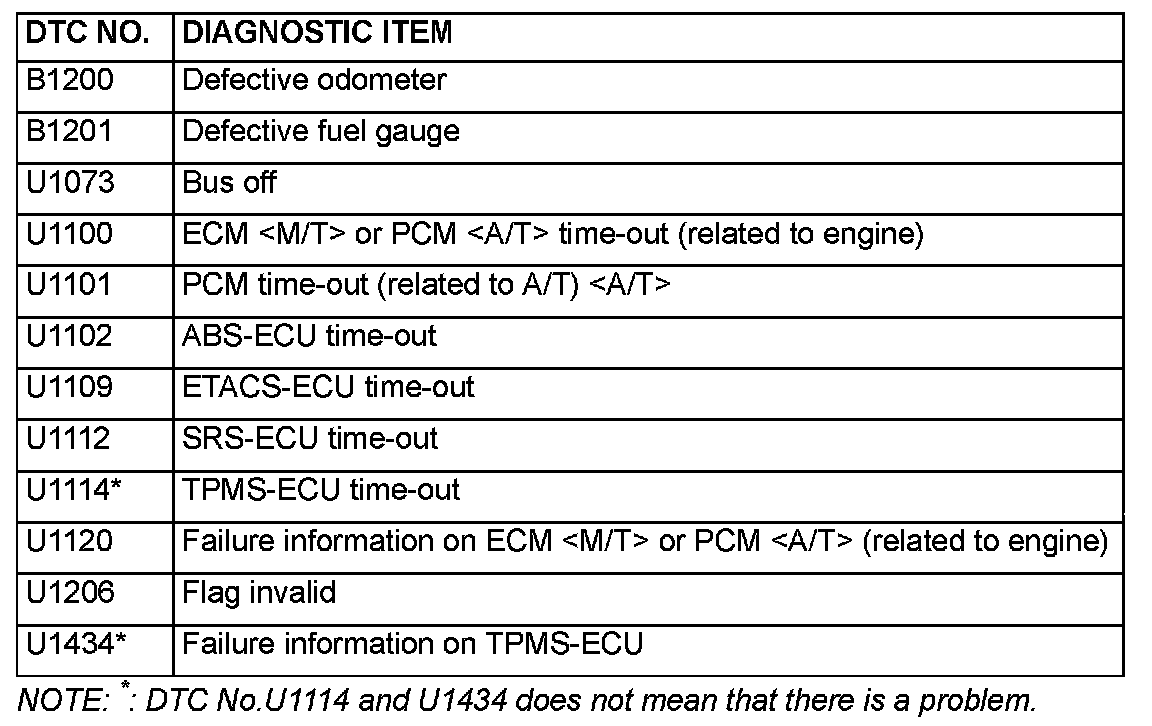

DIAGNOSTIC TROUBLE CODE CHART

B1200 - U1434:

CAUTION: During diagnosis, a DTC associated with other system may be set when the ignition switch is turned "ON" position with connector(s) disconnected. On completion, confirm all systems for DTC(s). If DTC(s) are set, erase them all.
