A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Information Bus
Information Bus

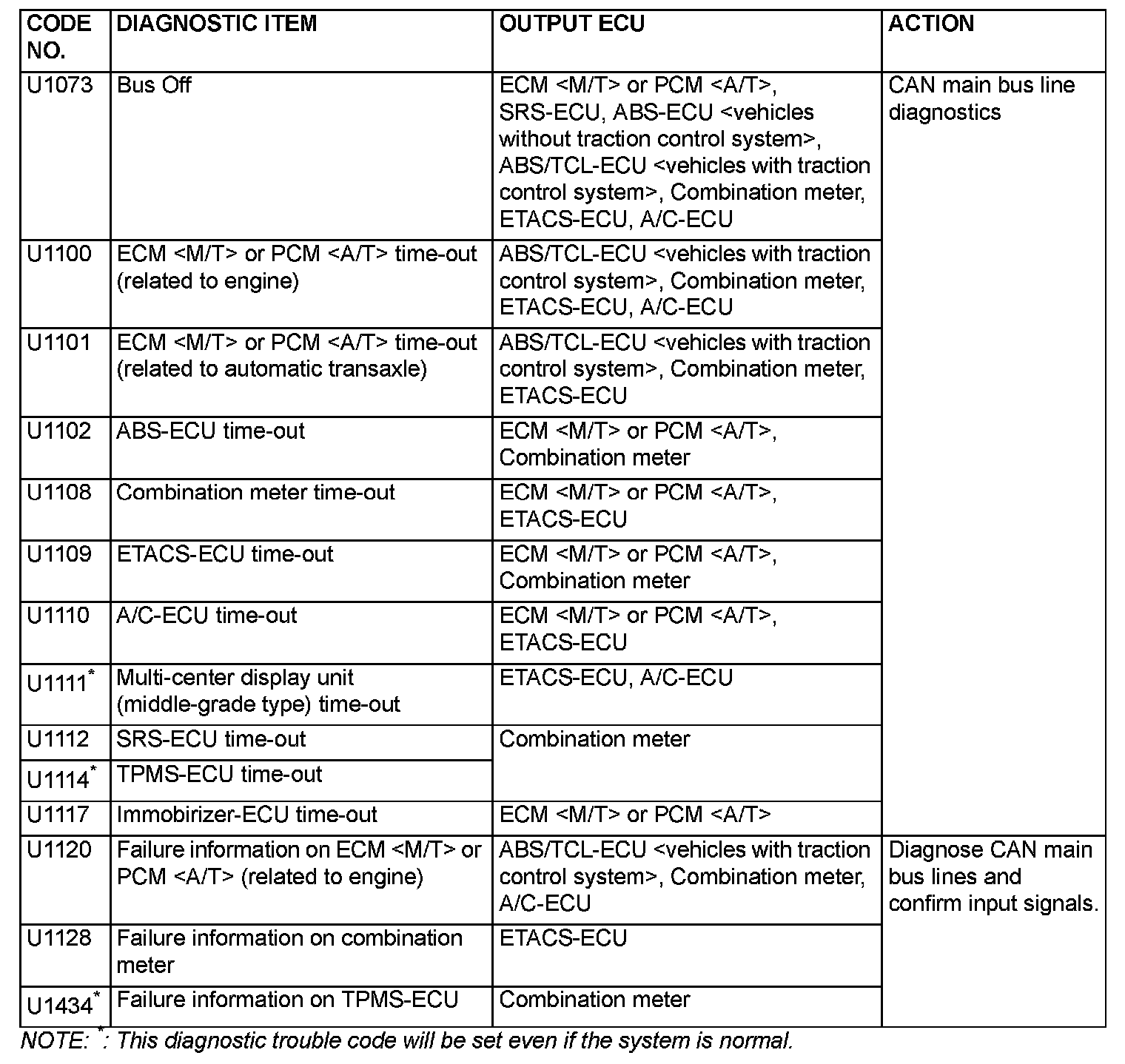

DTC's relating to CAN-BUS (U0121-U1110):
U1073 - U1434:
