Overhaul

Part 1:

Part 2:

DISASSEMBLY AND ASSEMBLY
CLUTCH MASTER CYLINDER

ASSEMBLY SERVICE POINT

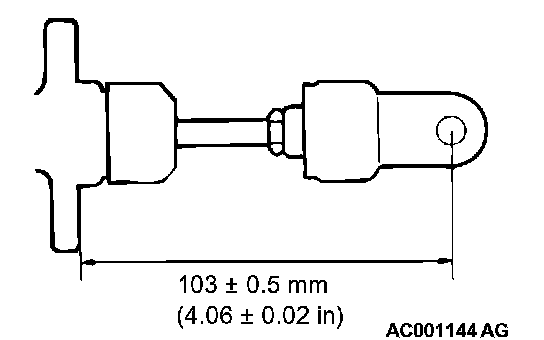

>>A<< PUSHROD ASSEMBLY INSTALLATION





Set the length of the pushrod assembly to the dimension shown to make the adjustment of the clutch pedal easier.

INSPECTION
^ Check inside the cylinder body for rust and scars.
^ Check the piston cup for wear and deformation.
^ Check the piston for rust and scars.
^ Check the pipe connection for clogging.
