Control Arm Bushing: Service and Repair

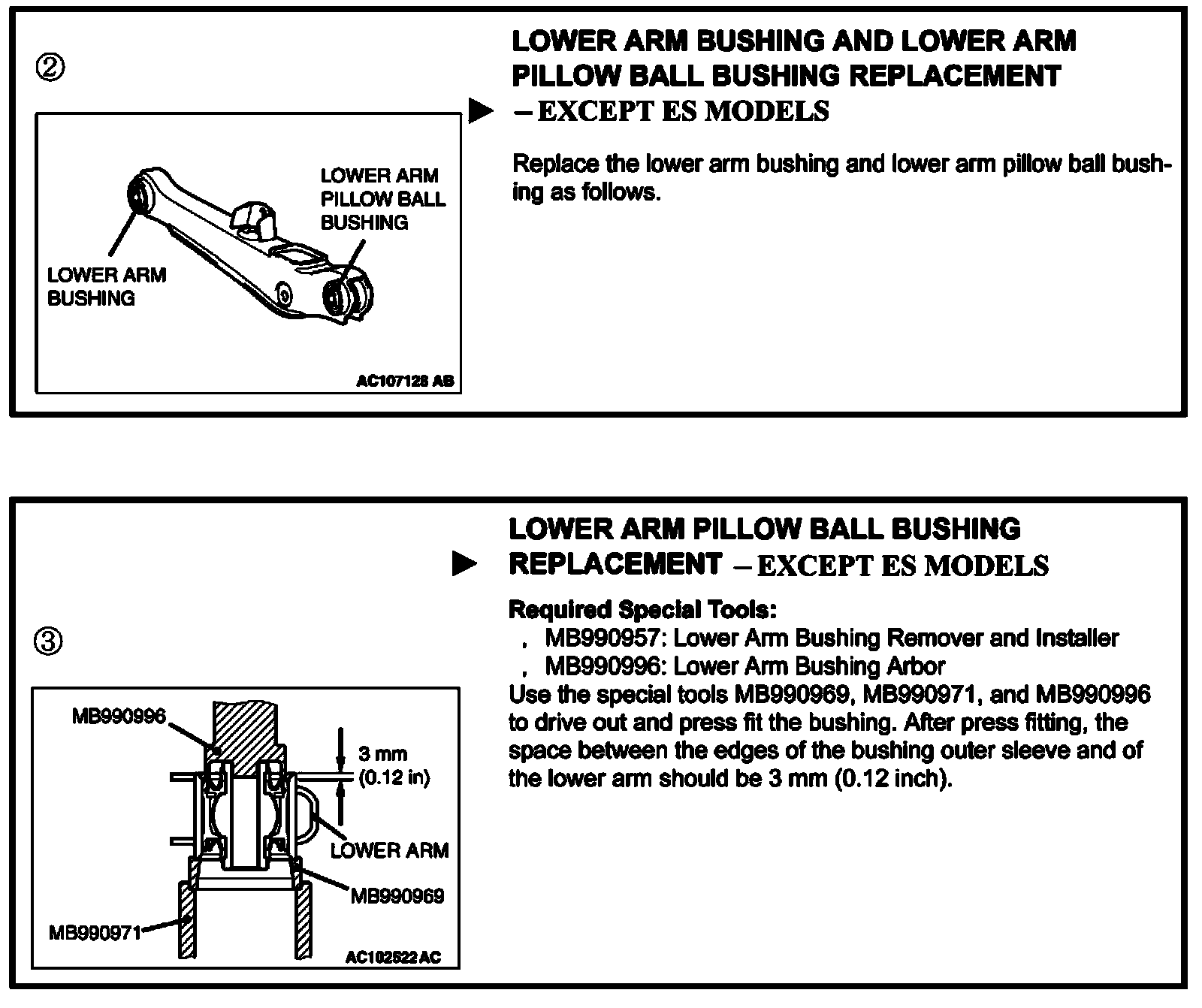

LOWER ARM BUSHING REPLACEMENT





Required Special Tools:

TSB 05-34-002R:

CAUTION: Because the outside of both edges of the bushing are different, be careful not to mistake the direction when driving out and press-fitting.

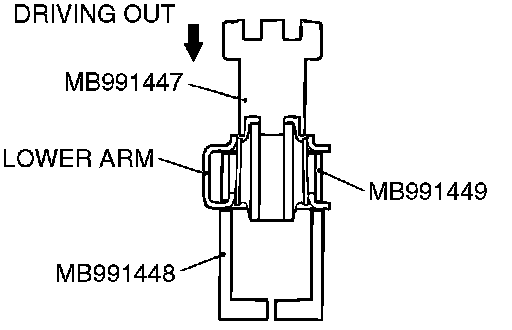

Use the special tools to drive out and press fit the lower arm bushing.
