EGR Valve: Service and Repair

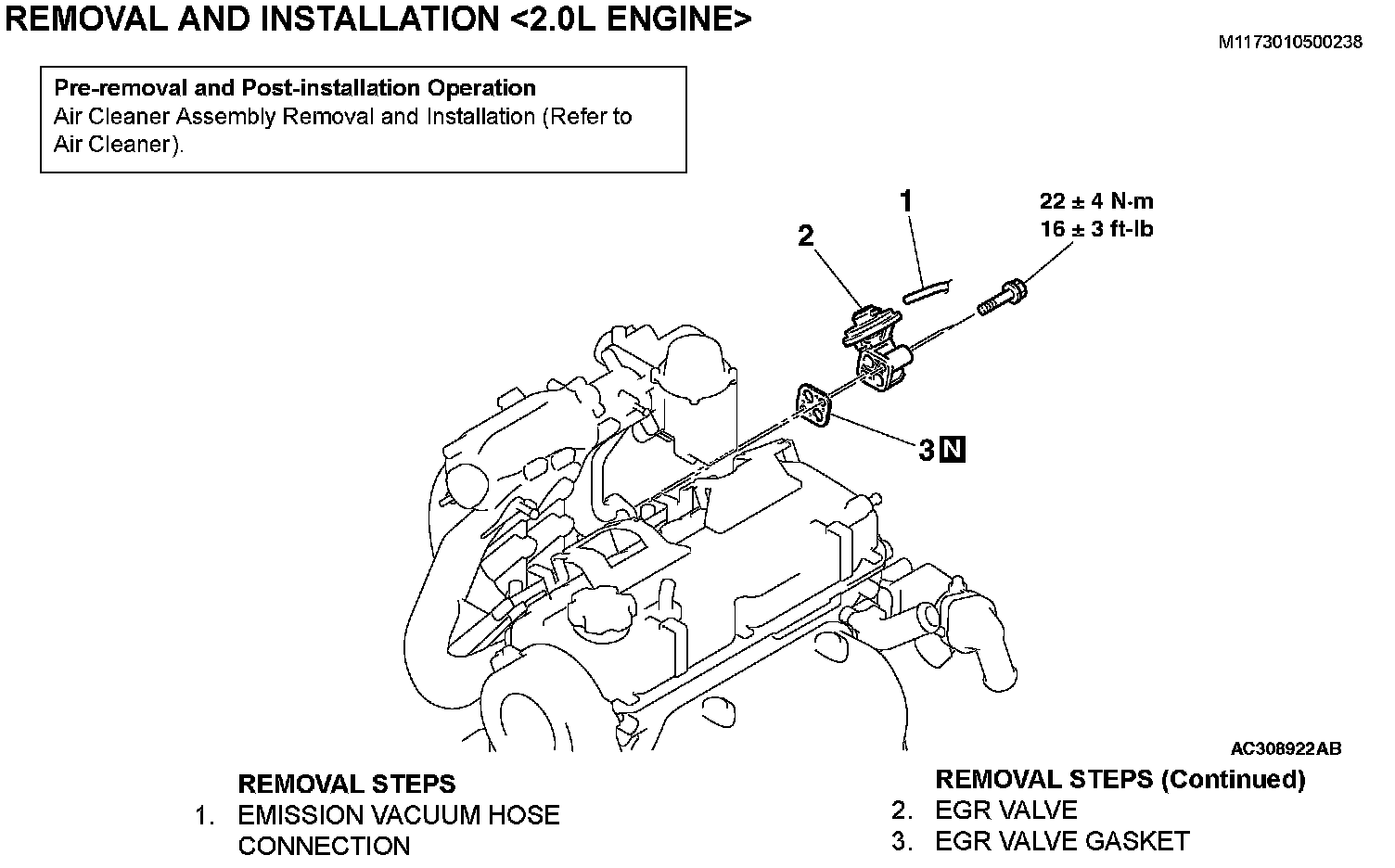

REMOVAL AND INSTALLATION <2.0L ENGINE>

>>A<< EGR VALVE GASKET INSTALLATION

Install the EGR valve gasket as shown in the illustration.
