EATCS-ECU

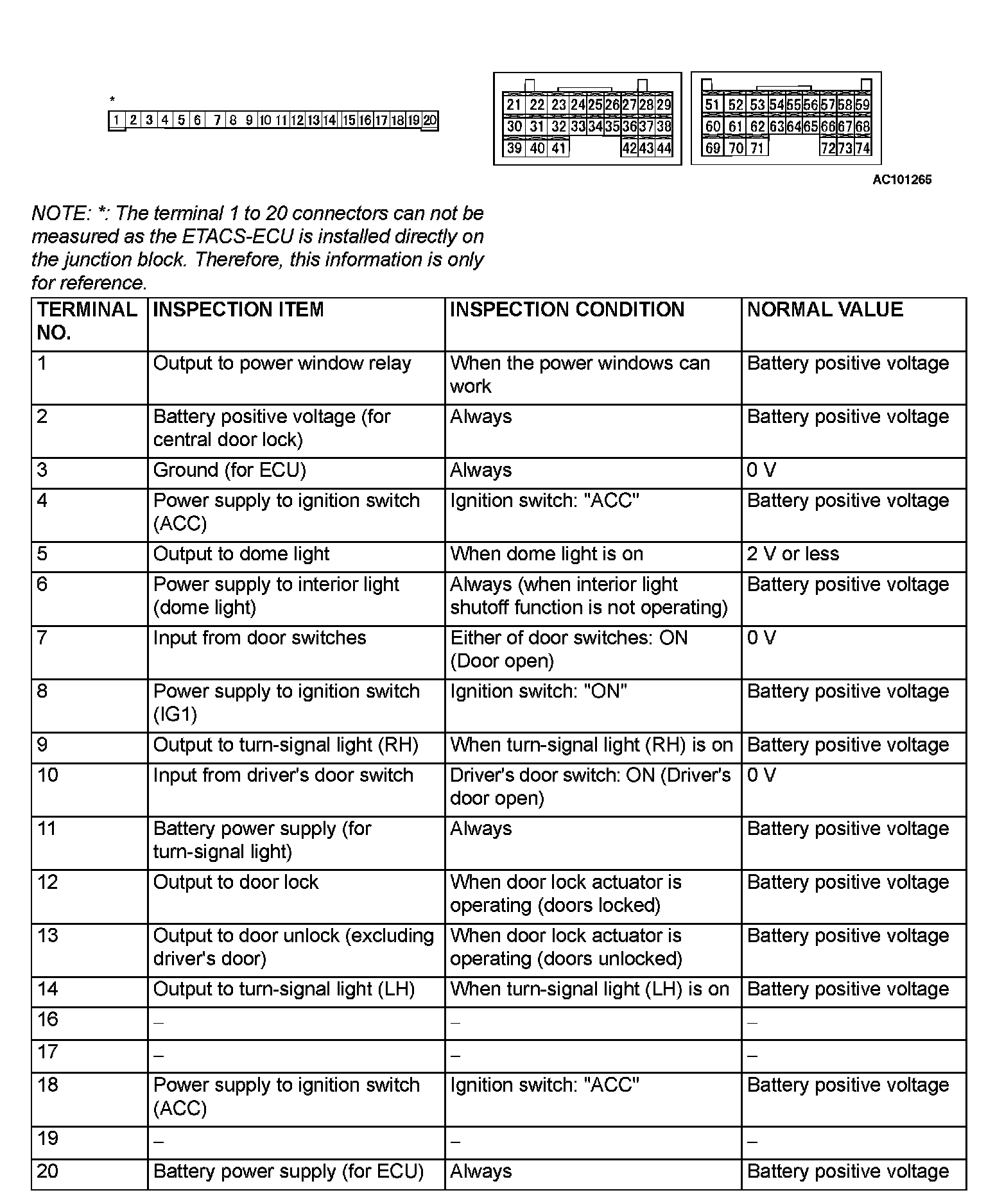

Check At ECU Terminal - ETACS-ECU Part 1:



Check At ECU Terminal - ETACS-ECU Part 2:



Check At ECU Terminal - ETACS-ECU Part 3:
