Turn Signals: Service and Repair

SIDE TURN-SIGNAL LIGHT

Removal And Installation:

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

<> SIDE TURN-SIGNAL LIGHT REMOVAL

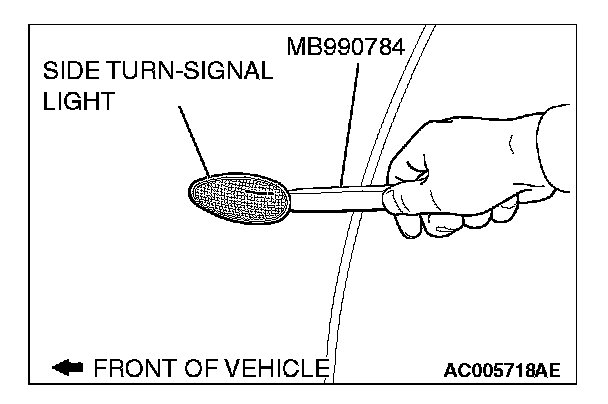

Use special tool MB990784, etc. to press and deflect the hook to vehicle front from fender, and unhook the pawls to remove the side turn-signal light.

INSTALLATION SERVICE POINT

>>A<< SIDE TURN-SIGNAL LIGHT INSTALLATION
Insert the pawls into the fender panel and install the side turn-signal light.
