Removal and Installation

REAR DRUM BRAKE









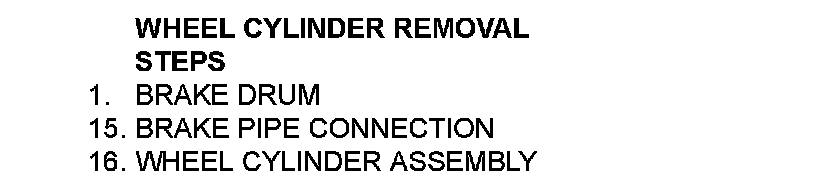

REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
<> RETAINER REMOVAL

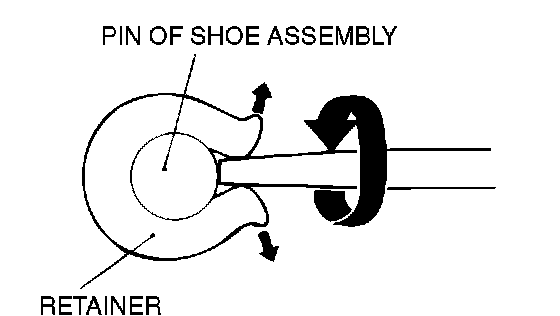

Use a flat-tipped screwdriver or a similar tool to open up the retainer joint. Then remove the retainer.

INSTALLATION SERVICE POINTS
>>A<< WAVE WASHER INSTALLATION

Install the wave washer in the direction shown in the illustration.

>>B<< RETAINER INSTALLATION

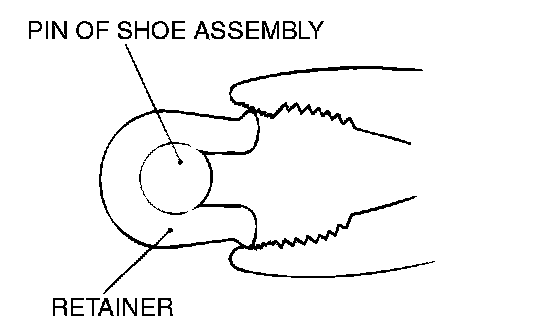

Use pliers or a similar tool to close the retainer end onto the pin.

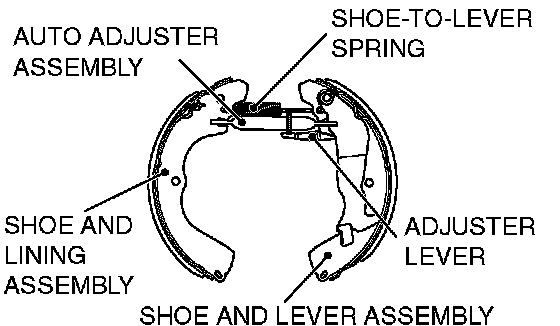

>>C<< SHOE AND LEVER ASSEMBLY/ADJUSTER LEVER/SHOE AND LINING ASSEMBLY/SHOE-TO-LEVER SPRING/AUTO ADJUSTER ASSEMBLY INSTALLATION

1. Assemble the shoe and lever assembly, the adjuster lever, the shoe and lining assembly, the shoe-to-lever spring, the automatic adjuster assembly temporarily.

2. Depress the wheel cylinder piston by hand.





3. Install the assembly to the backing plate carefully.

INSPECTION
BRAKE LINING THICKNESS CHECK
Testing and Inspection

BRAKE DRUM INSIDE DIAMETER CHECK
Brake Drum Inside Diameter Check

BRAKE LINING AND BRAKE DRUM CONTACT CHECK
Brake Lining and Brake Drum Contact Check
