Antenna: Service and Repair

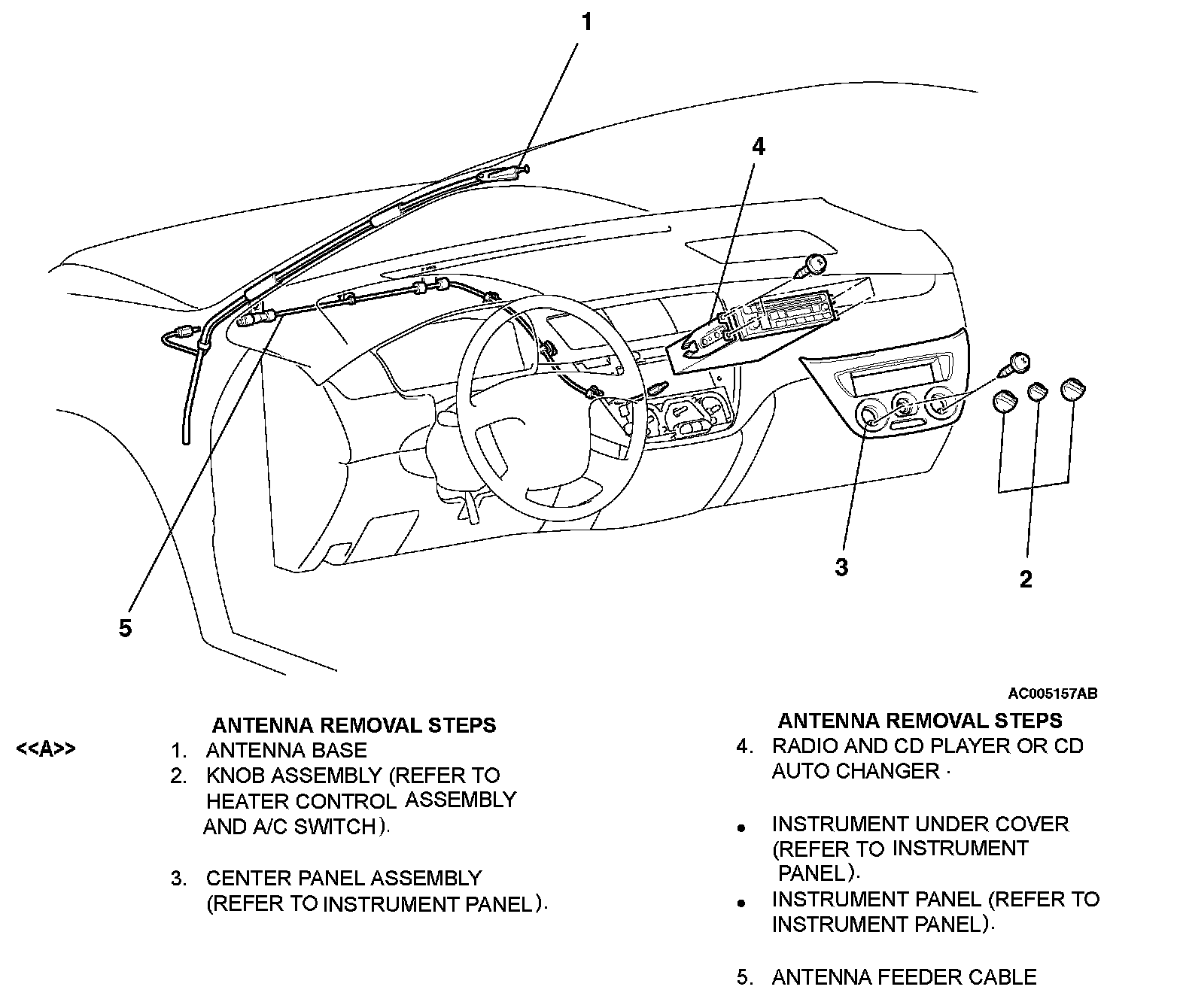

Antenna - Removal And Installation:

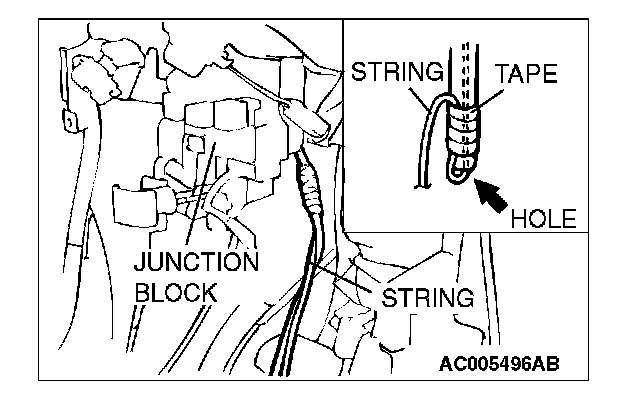

Use the following steps to easily route the antenna feeder cable in the event of installation:

1. Tie a string at the top end of the feeder cable.
2. Pull out the feeder cable until the pipe end of the antenna base is visible.
3. Insert the string into the hole at the pipe end of antenna base, and wrap vinyl tape on the string.

CAUTION: Tape should be wrapped so that the string cannot be removed. 4. Gradually pull out remove the antenna base.

Roof-mounted Type - Removal And Installation:

REMOVAL AND INSTALLATION
