Brakes - Master Cylinder Service Revision

No: TSB-06-35-003
DATE: June, 2006
MODEL: See below

SUBJECT:
MASTER CYLINDER SERVICE
PROCEDURE - SERVICE
MANUAL REVISION

TSB Revision: TSB-06-35-003

PURPOSE

Master cylinder servicing procedures are incorrect in the affected service manual pages. This bulletin contains corrected procedures.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES

2000-2005 Eclipse/Eclipse Spyder

AFFECTED SERVICE MANUALS

2000 Eclipse/Eclipse Spyder Service Manual Volume 2, Page 35A-29
2001 Eclipse Spyder Service Manual Volume 2, Page 35A-28
2001-2004 Eclipse/Eclipse Spyder Service Manual Volume 3, Page 35A-32
2005 Eclipse/Eclipse Spyder Service Manual Volume 2, Page 35A-33





2000 Eclipse Service Manual, Page 35A-29

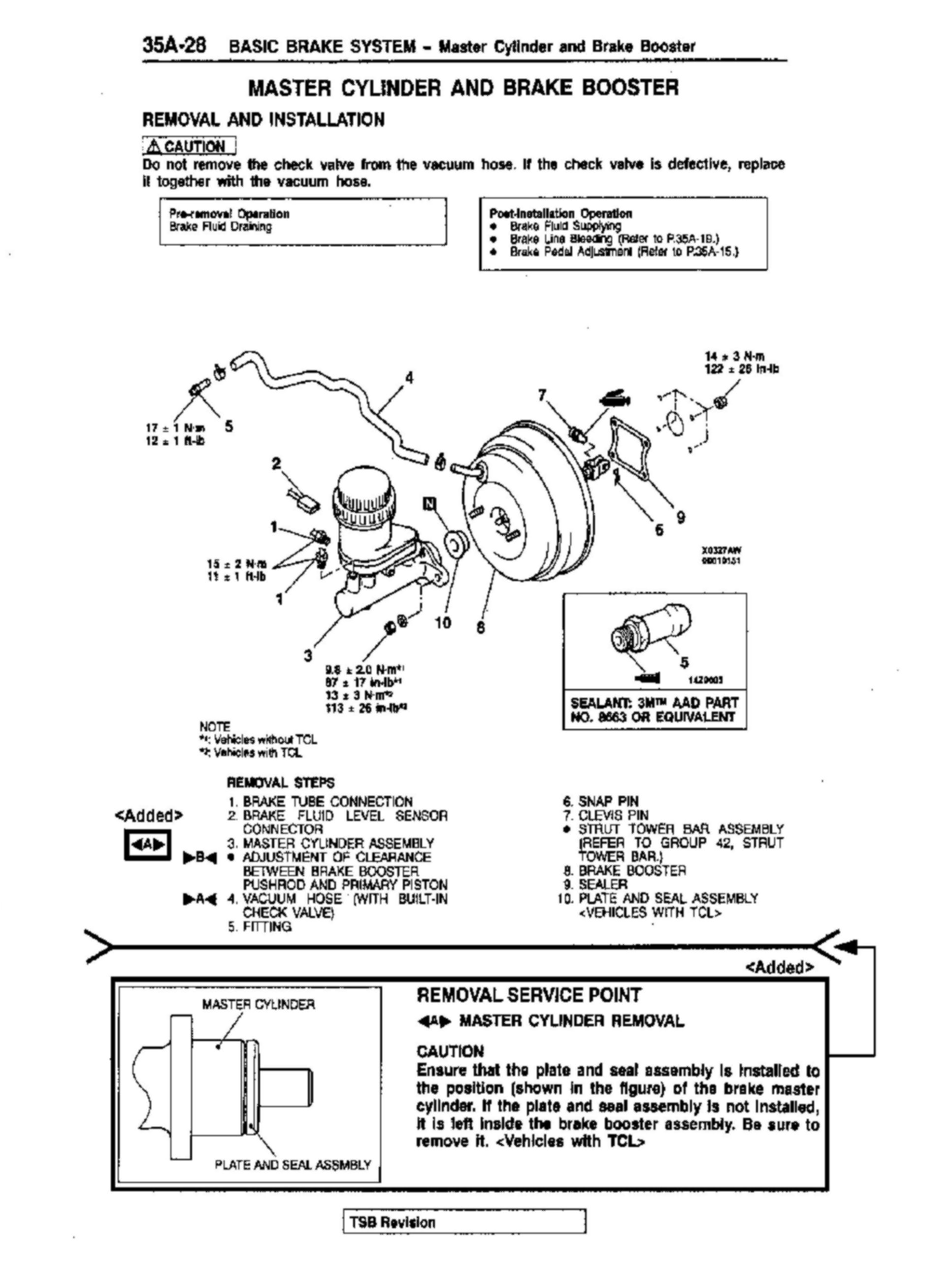

2001 Eclipse Spyder Service Manual, Page 35A-28
2001 Eclipse/Eclipse Spyder Service Manual, Page 35A-32
Add the following information:

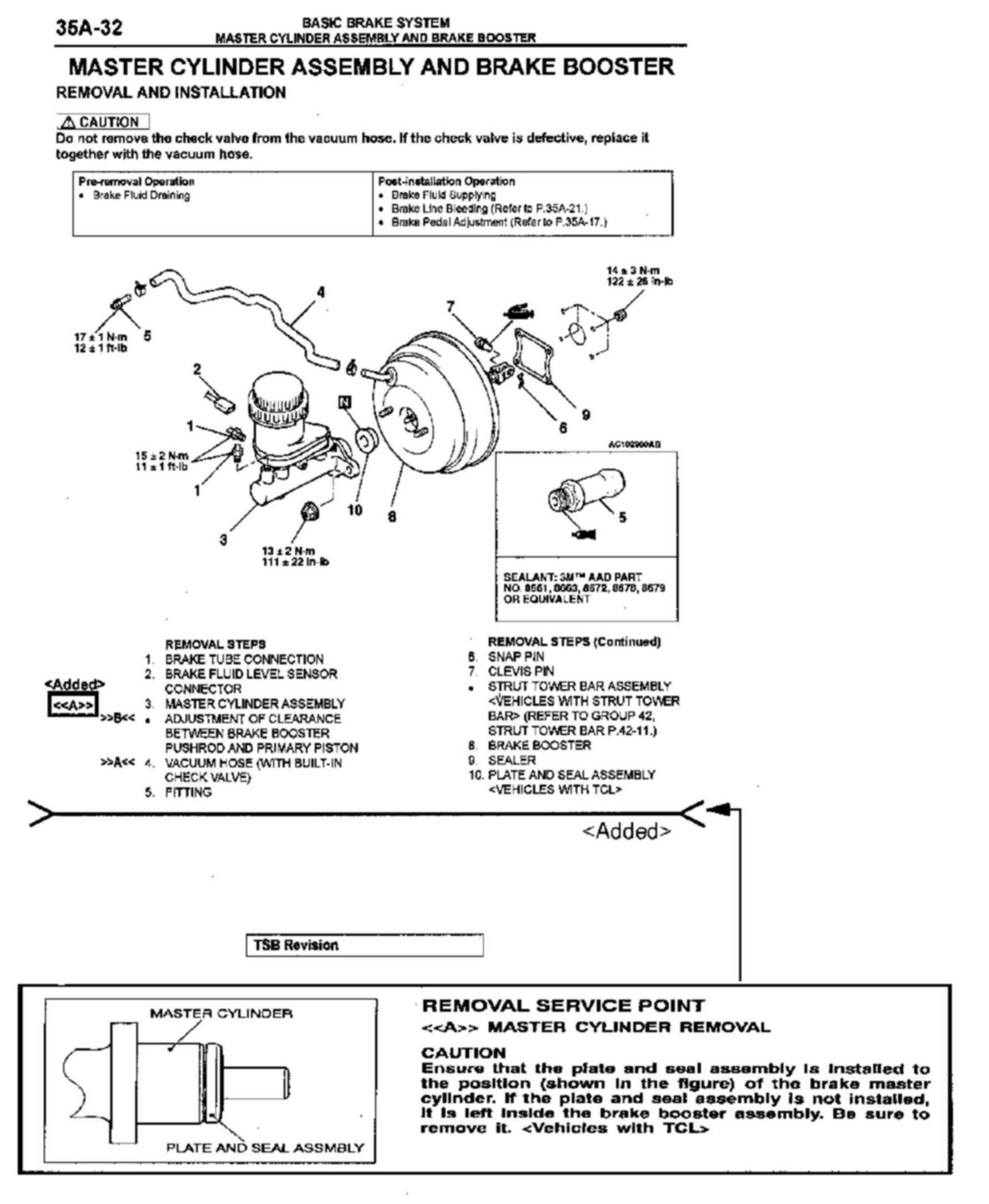

2002-2004 Eclipse/Eclipse Spyder Service Manual, Page 35A-32
2005 Eclipse/Eclipse Spyder Service Manual, Page 35A-33
Add the following information:
