Rear Suspension

TOE CONTROL ARM BALL JOINT DUST COVER REPLACEMENT

If the dust cover is damaged accidentally during service work, replace the dust cover as follows:

1. Remove the dust cover.
2. Apply multipurpose grease to inside and lip of the dust cover.

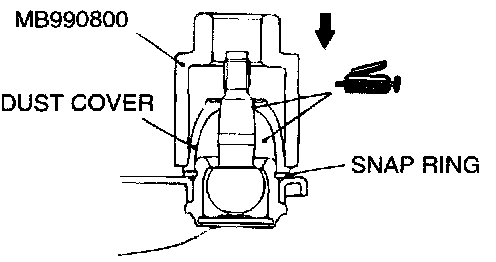

3. Using special tool MB990800 press the dust cover until it contacts the snap ring.
4. Check the dust cover for cracks or damage by pushing it with your finger.
