Mitsubishi
>>
2005
>>
Eclipse V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Component Locations
Component Locations
Locations:
Junction Block:

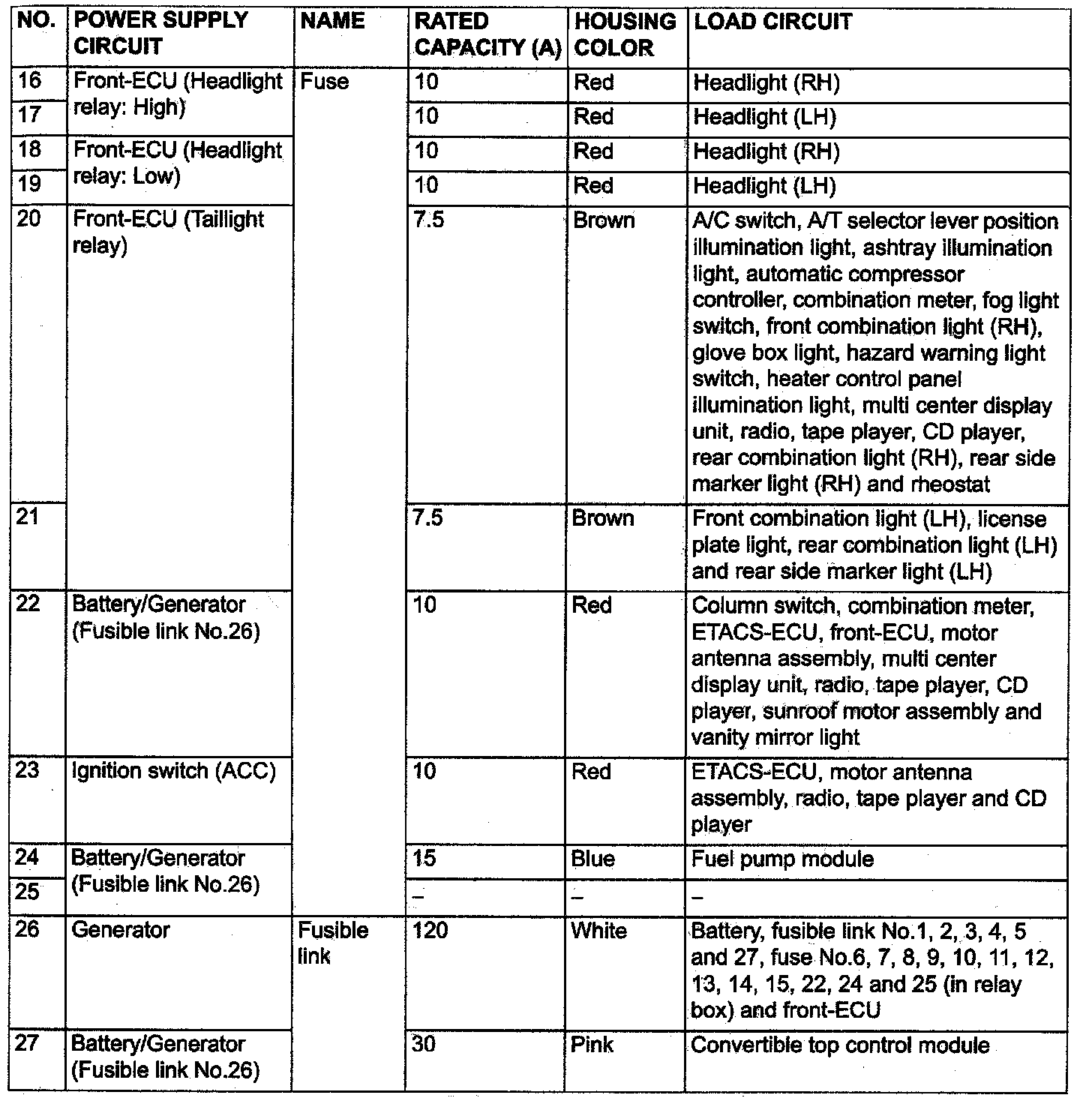

Fuses 1-27 (1 Of 3):
Fuses 1-27 (2 Of 3):
Fuses 1-27 (3 Of 3):

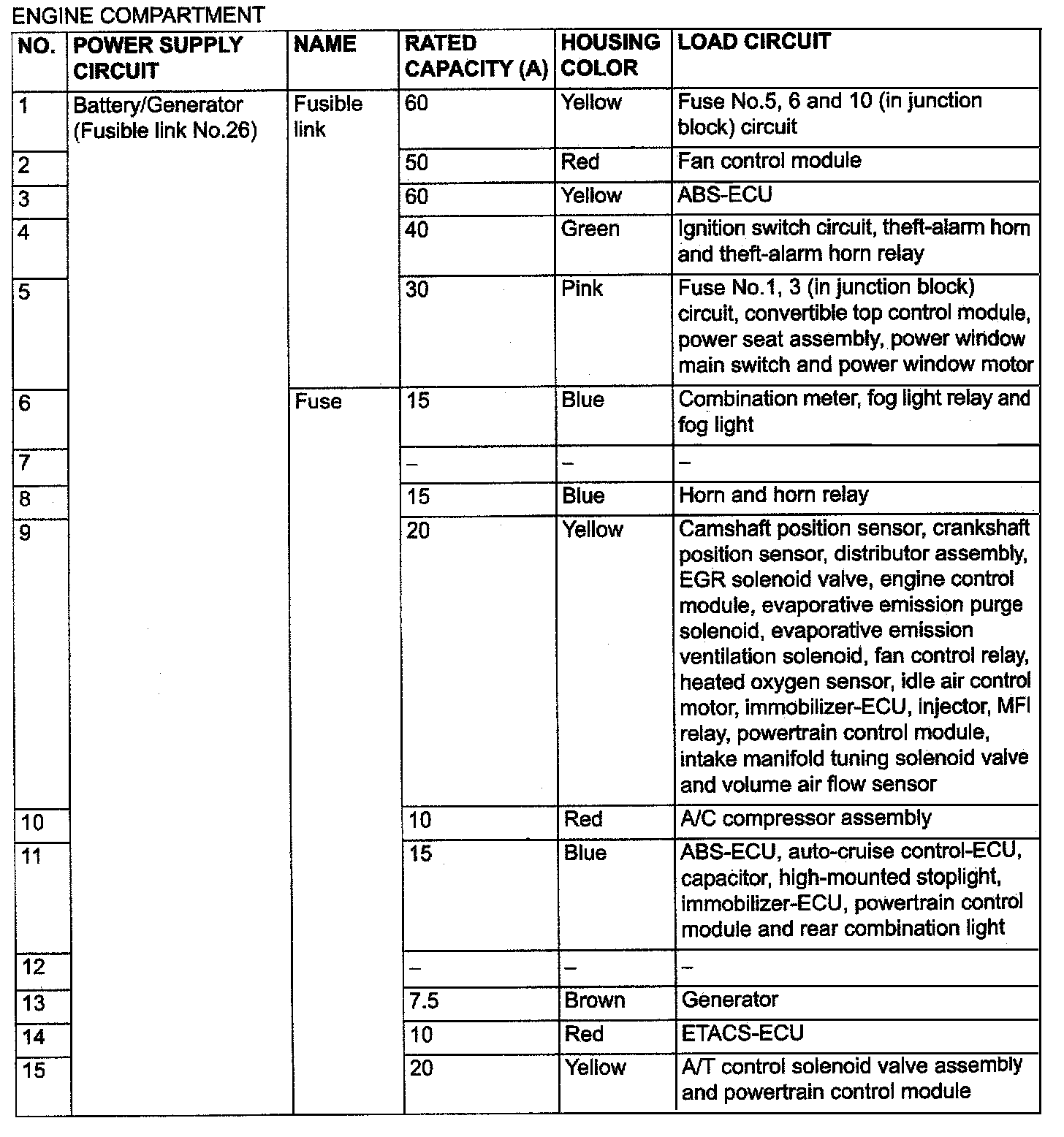

Fuses 1-24 (1 Of 2):
Fuses 1-24 (2 Of 2):

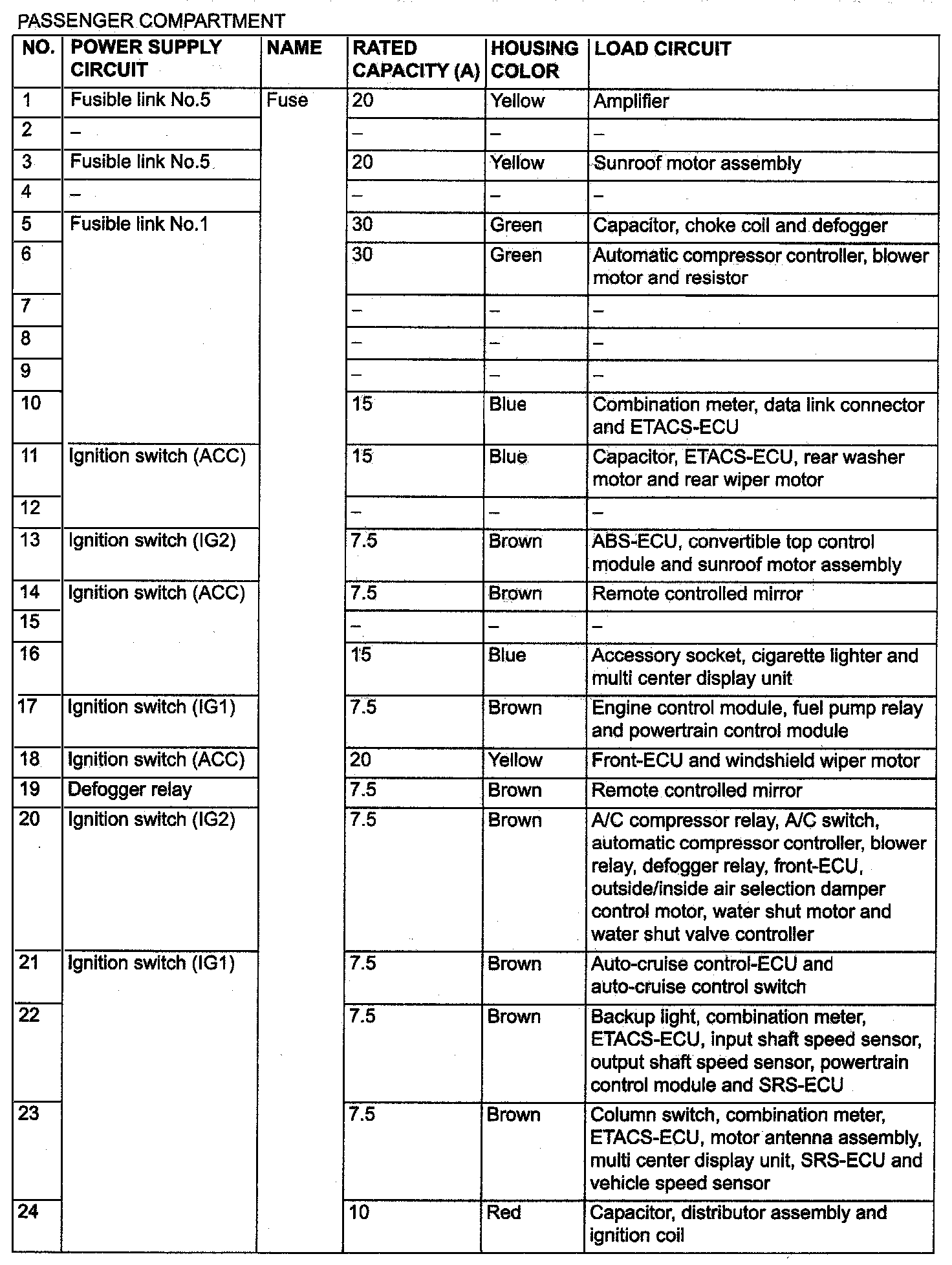

Centralized Relay:
