Windshield Washer Switch: Testing and Inspection

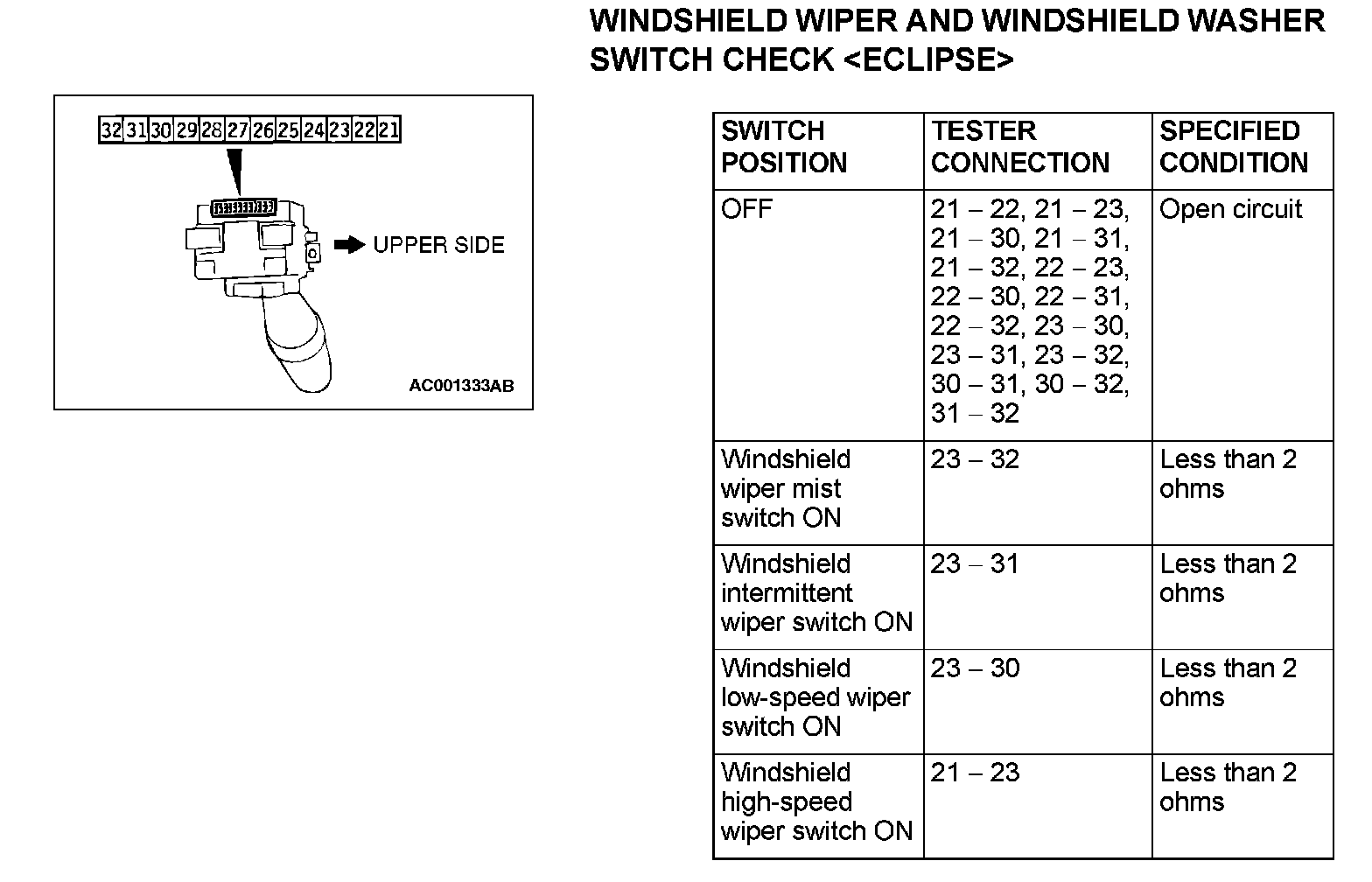

WINDSHIELD WIPER AND WINDSHIELD WASHER SWITCH CHECK







Measure the resistance value at terminal numbers 27 and 28. The resistance value should rise smoothly from approximately less than two ohm ("FAST" position) to approximately one kilo ohm ("SLOW" position).

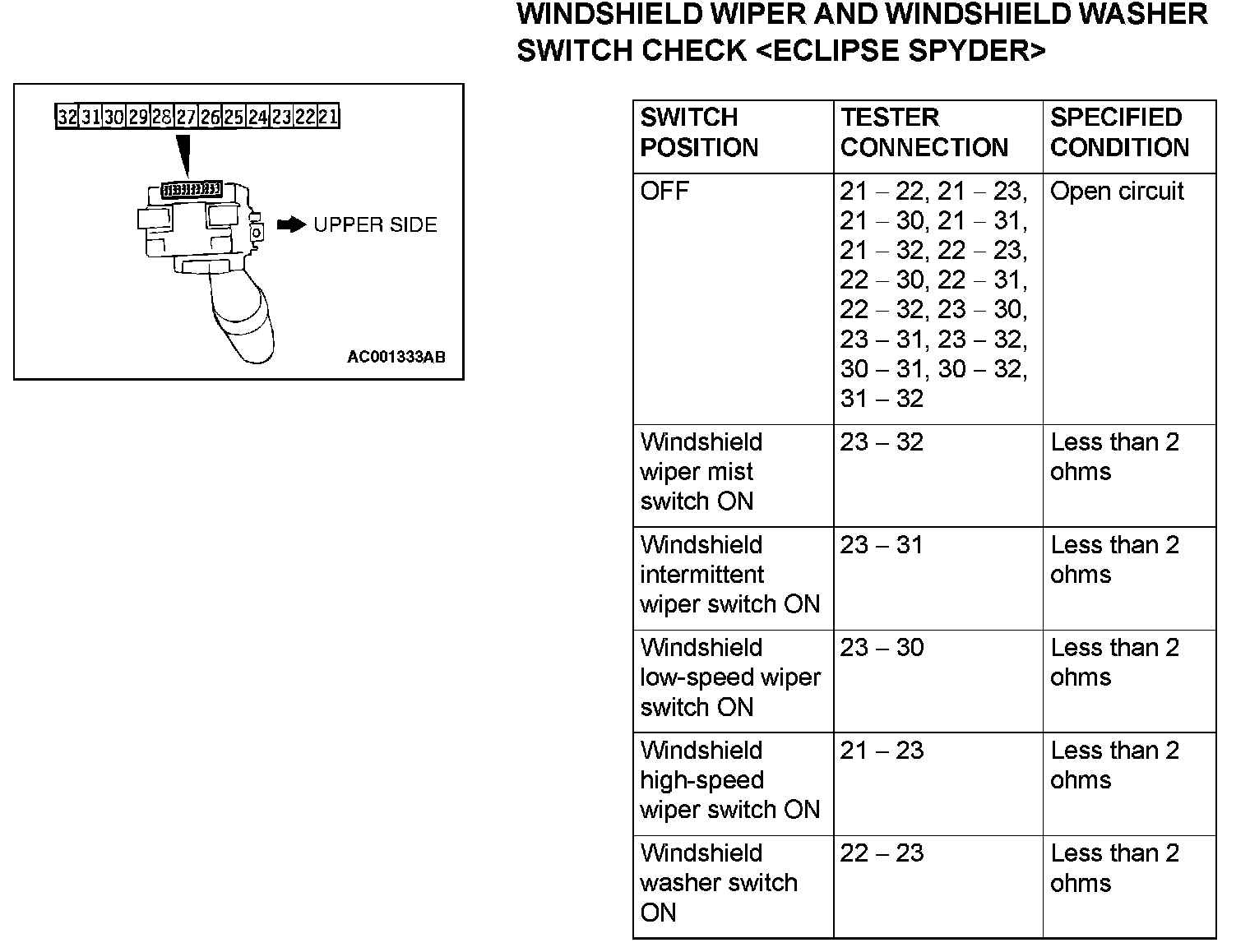

WINDSHIELD WIPER AND WINDSHIELD WASHER SWITCH CHECK




Measure the resistance value at terminal numbers 27 and 28. The resistance value should rise smoothly from approximately less than two ohm ("FAST" position) to approximately one kilo ohm ("SLOW" position).
