Remote Switch: Service and Repair

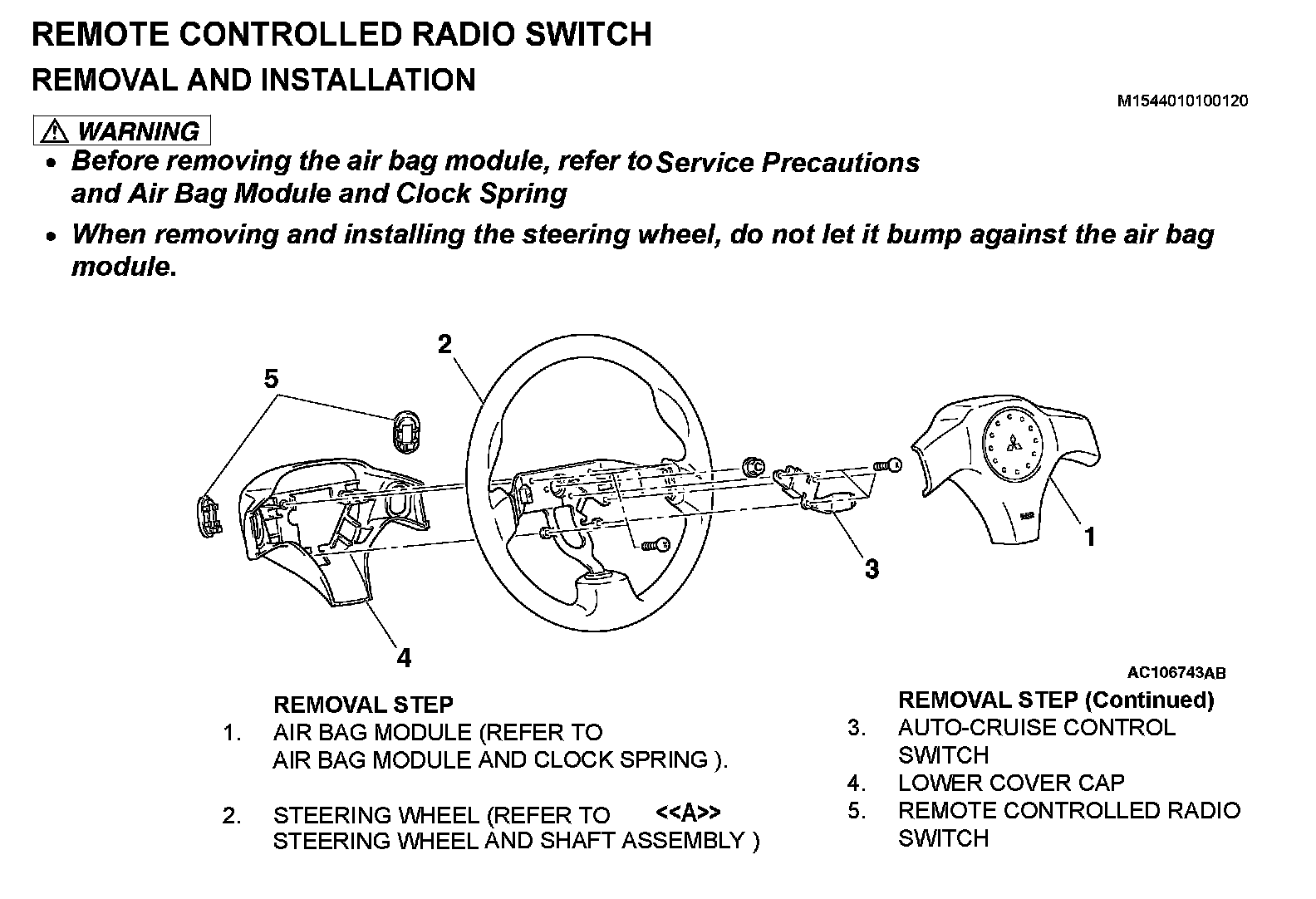

REMOTE CONTROLLED RADIO SWITCH

Removal And Installation:




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




<> REMOTE CONTROLLED RADIO SWITCH REMOVAL

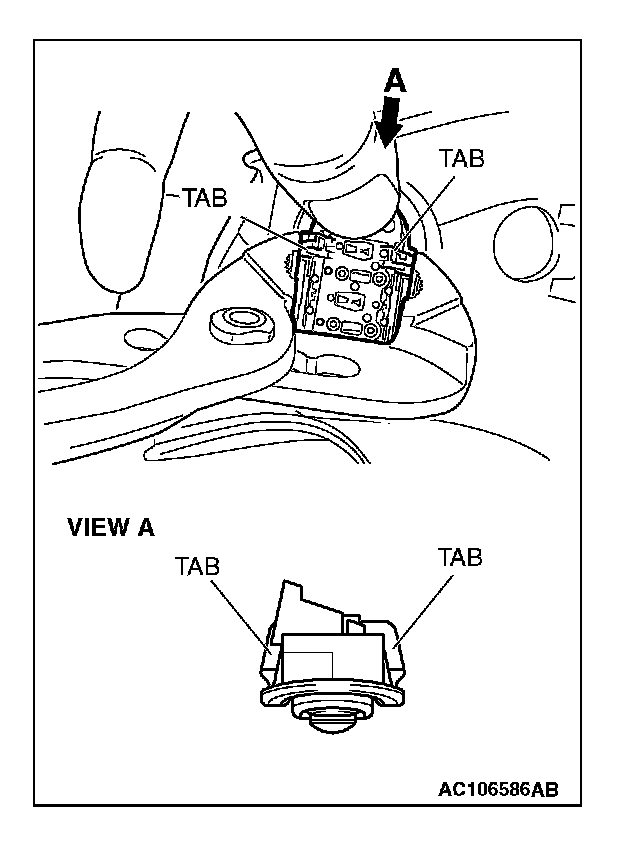

Use a tool to hold the tabs on the remote controlled radio switch, and push out the switch by your finger.
