Vacuum Hose Routing
Vacuum Hose Routing

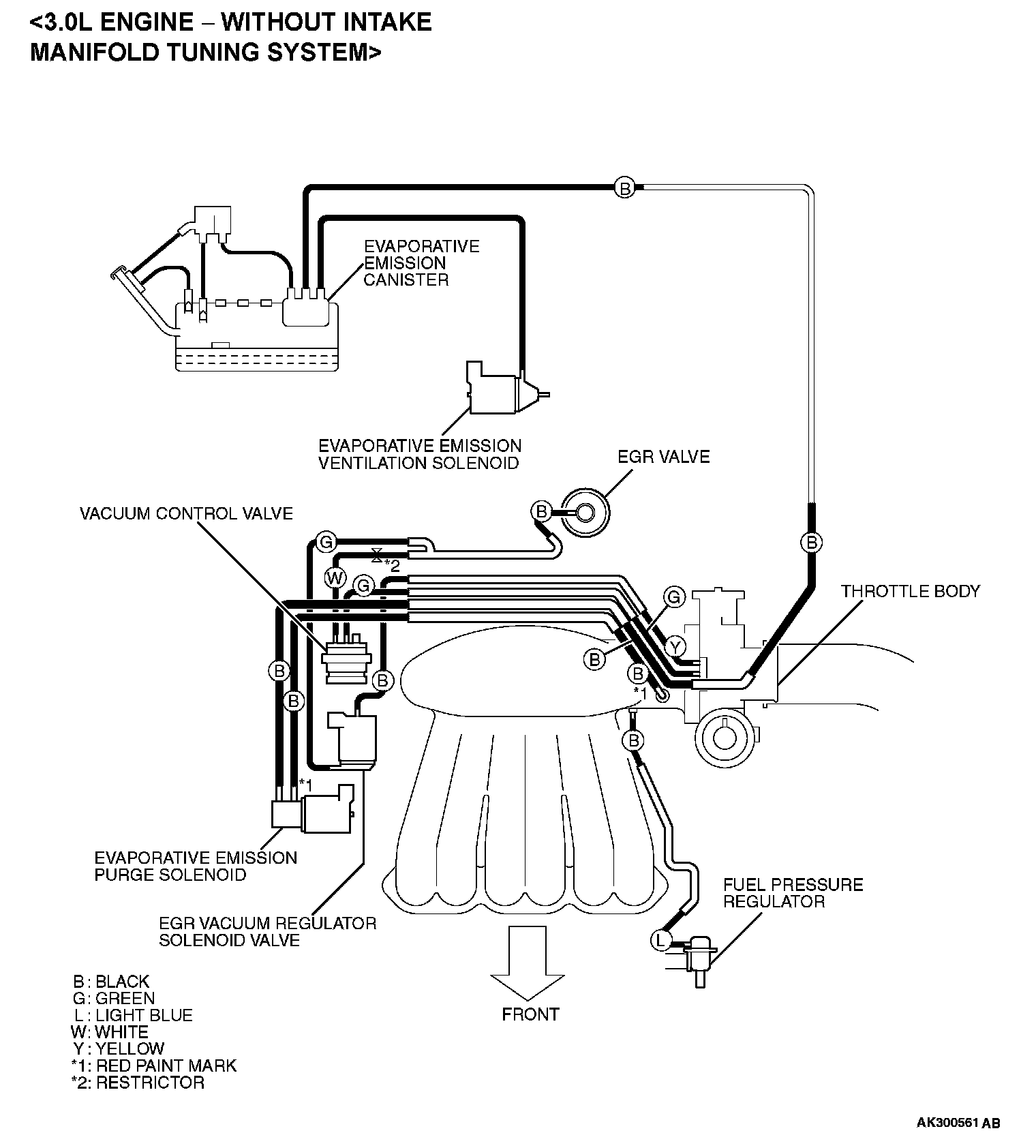

Vacuum Hose Routing <3.0L Engine Without Intake Manifold Tuning System>:

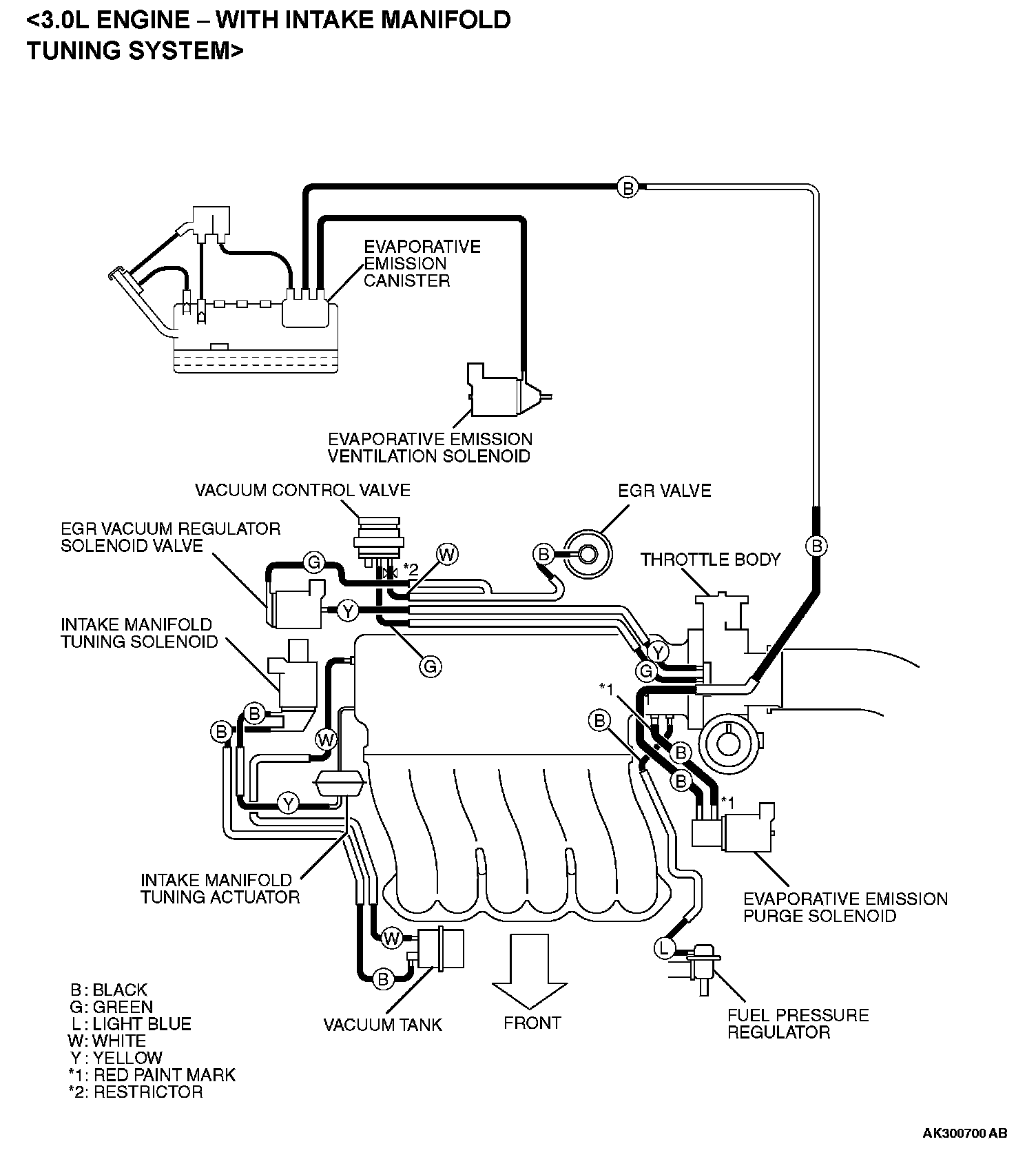

Vacuum Hose Routing <3.0L Engine With Intake Manifold Tuning System>:
