Inspection Procedure 30

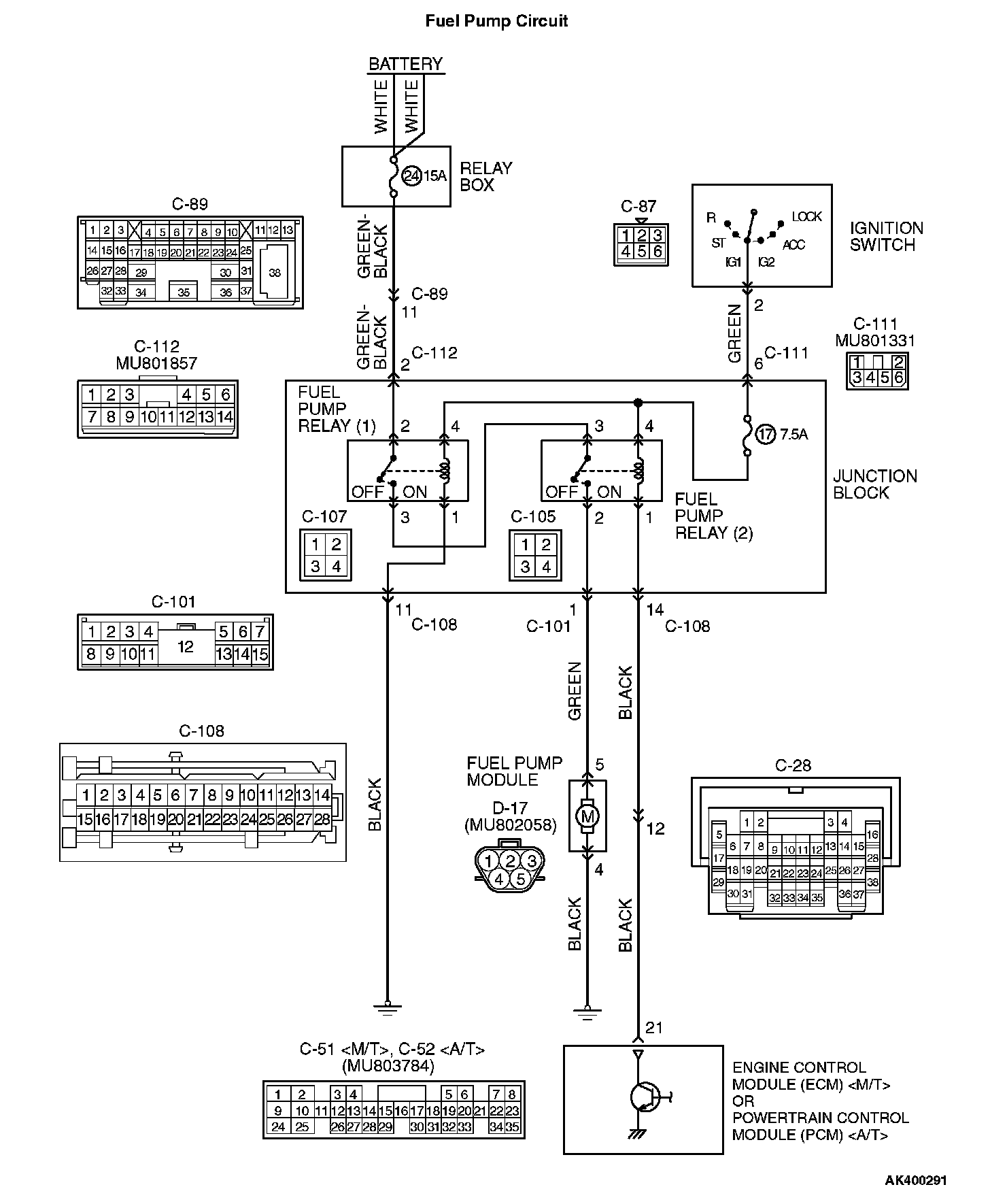

Fuel pump system.Fuel Pump Circuit Part 1:
Fuel Pump Circuit Part 2:
Fuel Pump Circuit Part 3:
CIRCUIT OPERATION
- Battery positive voltage is applied to the fuel pump relay 1 (terminal No. 3) from the ignition switch-IG.
Ground is provided through terminal 2 to chassis ground.
- When the ignition switch is turned to the "ON" position, the battery positive voltage is applied to the fuel pump relay 2 (terminal No. 1) from the fuel pump relay 1 (terminal No. 1).
- A battery positive voltage is applied on the fuel pump relay 2 (terminal No. 3) from the ignition switch-IG.
- During cranking and while the engine is running, the ECM
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Malfunction of the fuel pump relay 1 and 2.
- Malfunction of the fuel pump.
- Improper connector contact, open or short-circuited harness wire.
- Malfunction of the ECM
DIAGNOSIS
Required Special Tools:
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991911: Main Harness B

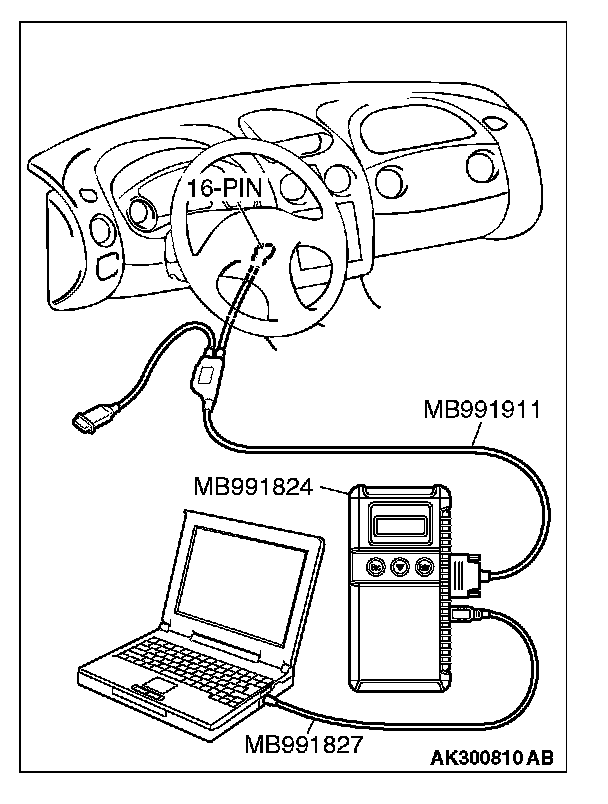

STEP 1. Using scan tool MB991958, check actuator test item 07: Fuel Pump.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991958 to the actuator test mode for item 07, Fuel Pump.
- An operation sound of the fuel pump should be heard.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the fuel pump operating properly?
YES: That this malfunction is intermittent. Refer to How to Use Troubleshooting/Inspection Service Points.
NO: Go to Step 2.

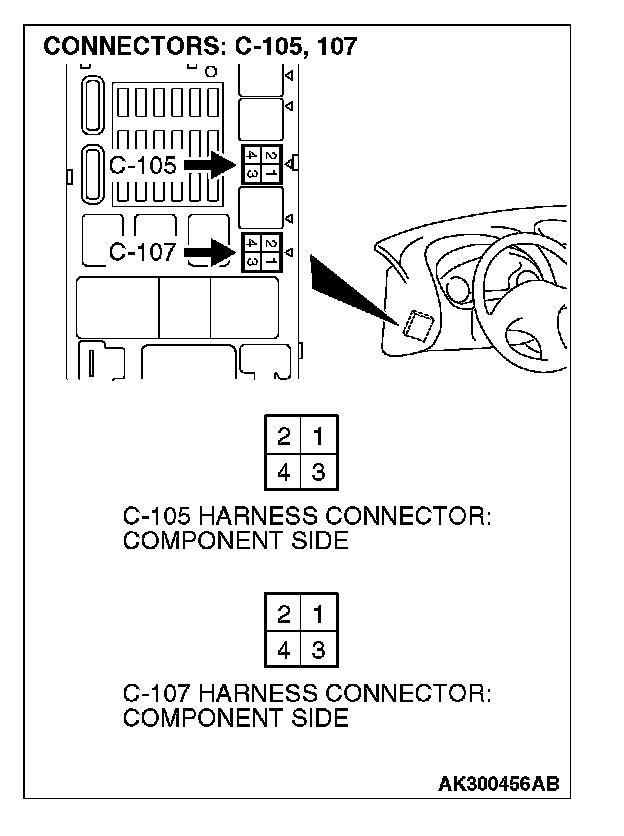

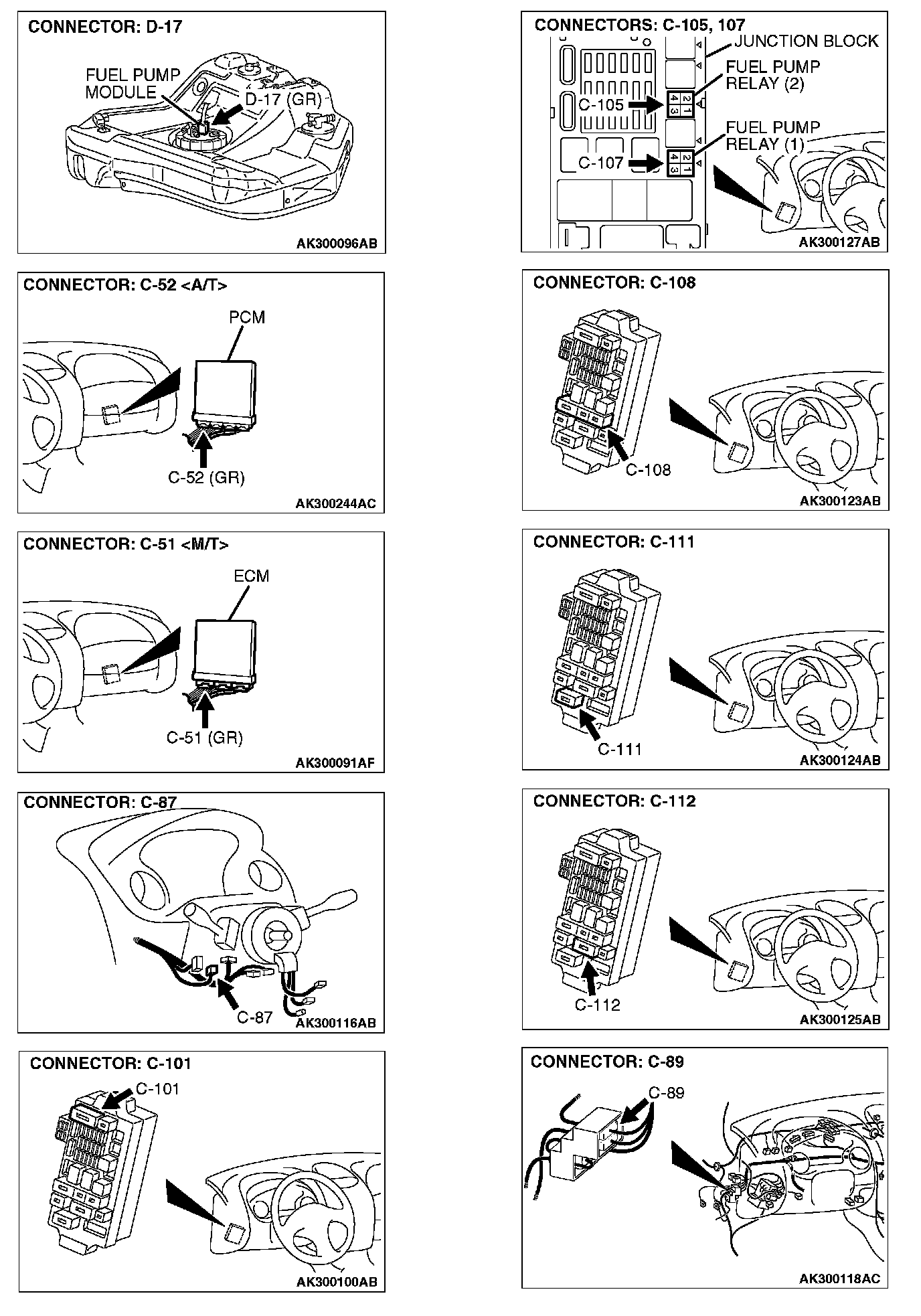

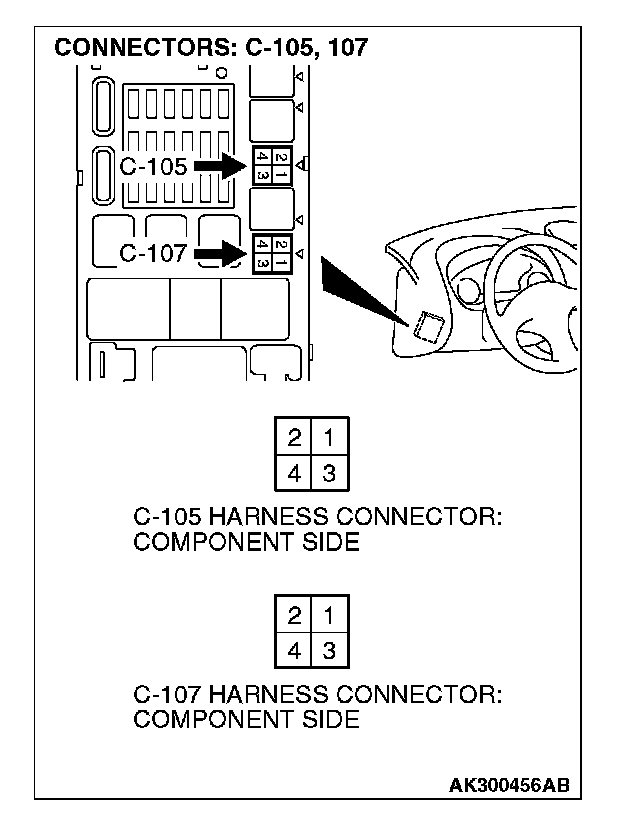

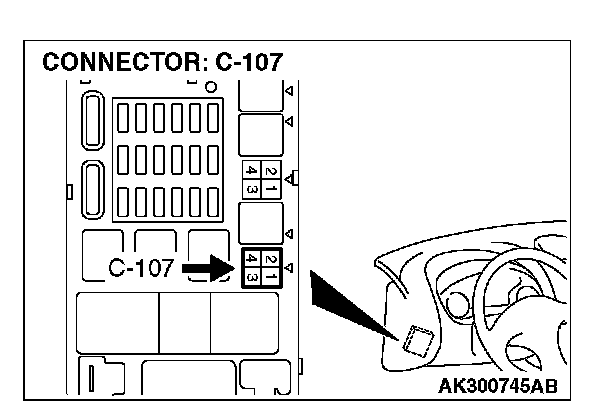

STEP 2. Check connector C-107 at fuel pump relay 1 and connector C-105 at fuel pump relay 2 for damage.
Q: Is the connector in good condition?
YES: Go to Step 3.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.

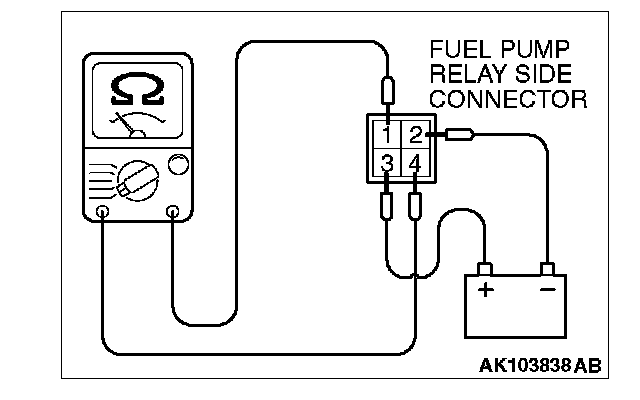

STEP 3. Check the fuel pump relay 1 and 2.
1. Remove the fuel pump relay 1 and 2.

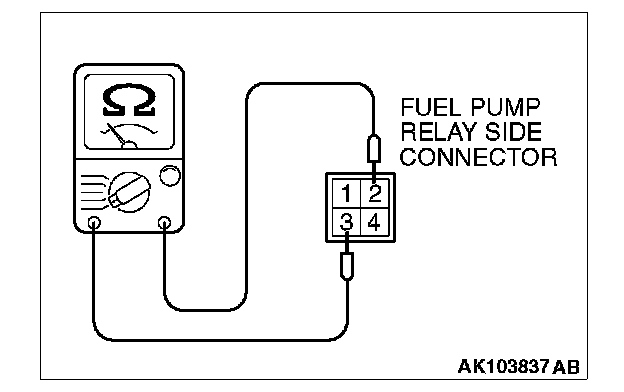

2. Check for continuity between the each fuel pump relay terminals No. 2 and No. 3.
- There should be continuity, (approximately 70 ohms)
3. Use jumper wires to connect each fuel pump relay terminal No. 3 to the positive battery terminal and terminal No. 2 to the negative battery terminal.
4. Check the continuity between the each fuel pump relay terminals No. 1 and No. 4 while connecting and disconnecting the jumper wire at the negative battery terminal.
- Should be less than 2 ohms. (Negative battery terminal connected)
- Should be open loop. (Negative battery terminal disconnected)
5. Install the fuel pump relay 1 and 2.
Q: Is the measured resistance normal?
YES: Go to Step 4.
NO: Replace the fuel pump relay 1 and/or 2. Then confirm that the malfunction symptom is eliminated.
STEP 4. Measure the power supply voltage at fuel pump relay 1 harness side connector C-107.
1. Disconnect the connector C-107 and measure at the harness side.
2. Measure the voltage between terminal No. 4 and ground.
- Voltage should be battery positive voltage.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 5.
NO: Check harness connectors C-89 and C-112 at intermediate connector for damage and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connectors are in good condition, repair harness wire between dedicated fuse and fuel pump relay 1 connector C-107 (terminal No. 4) because of open circuit. Then confirm that the malfunction symptom is eliminated.

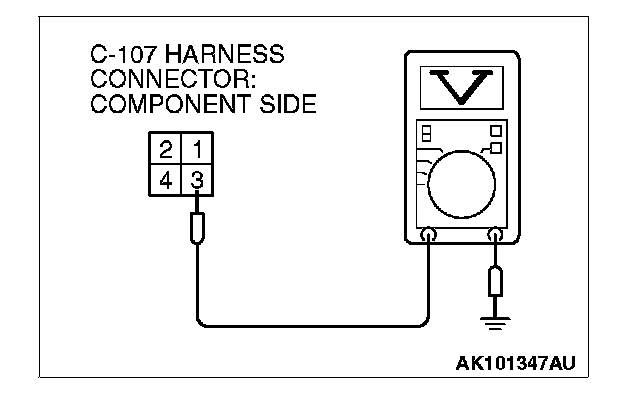

STEP 5. Measure the power supply voltage at fuel pump relay 1 harness side connector C-107.
1. Disconnect the connector C-107 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal No. 3 and ground.
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 6.
NO: Check harness connector C-111 at intermediate connector for damage and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connector is in good condition, repair harness wire between ignition switch connector C-87 (terminal No. 2) and fuel pump relay 1 connector C-107 (terminal No. 3) because of open circuit. Then confirm that the malfunction symptom is eliminated.

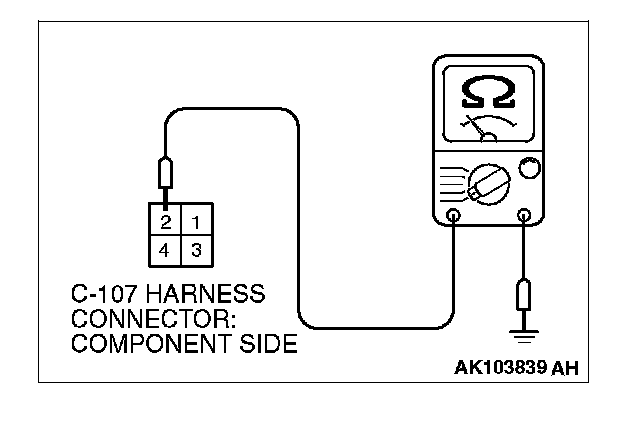

STEP 6. Check the continuity at fuel pump relay 1 harness side connector C-107.
1. Disconnect the connector C-107 and measure at the harness side.
2. Check for the continuity between terminal 2 and ground.
- Should be less than 2 ohms.
Q: Is the continuity normal?
YES: Go to Step 7.
NO: Check harness connectors C-108 at intermediate connector for damage and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connectors are in good condition, repair harness wire between fuel pump relay 1 connector C-107 terminal 2 and ground because of open circuit. Then confirm that the malfunction symptom is eliminated.

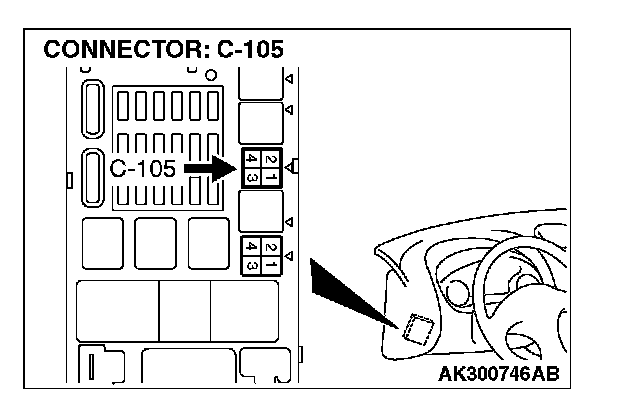

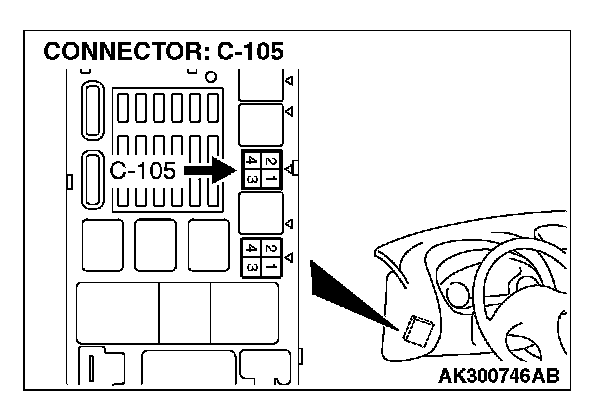

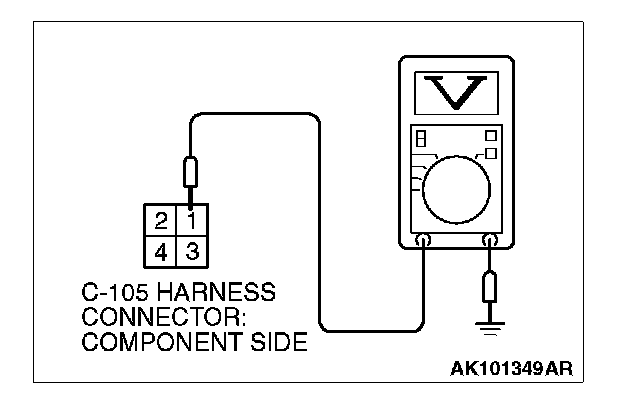

STEP 7. Measure the power supply voltage at fuel pump relay 2 harness side connector C-105.
1. Disconnect the connector C-105 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal No. 1 and ground.
- Voltage should be battery positive voltage.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 8.
NO: Repair harness wire between fuel pump relay 1 connector C-107 terminal No. 1 and fuel pump relay 2 connector C-105 terminal No. 1 because of open circuit. Then confirm that the malfunction symptom is eliminated.

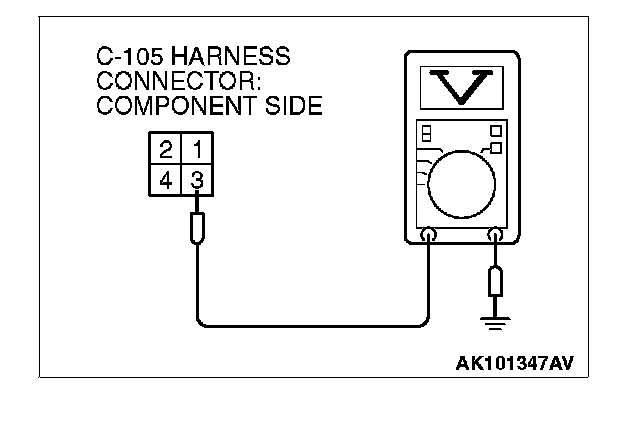

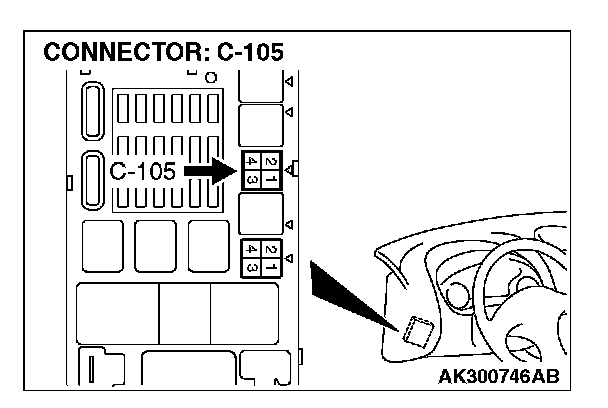

STEP 8. Measure the power supply voltage at fuel pump relay 2 harness side connector C-105.
1. Disconnect the connector C-105 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal No. 3 and ground.
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage normal?
YES: Go to Step 9.
NO: Check harness connector C-111 at intermediate connector for damage and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connector is in good condition, repair harness wire between ignition switch connector C-87 (terminal No. 2) and fuel pump relay 2 connector C-105 (terminal No. 3) because of open circuit. Then confirm that the malfunction symptom is eliminated.

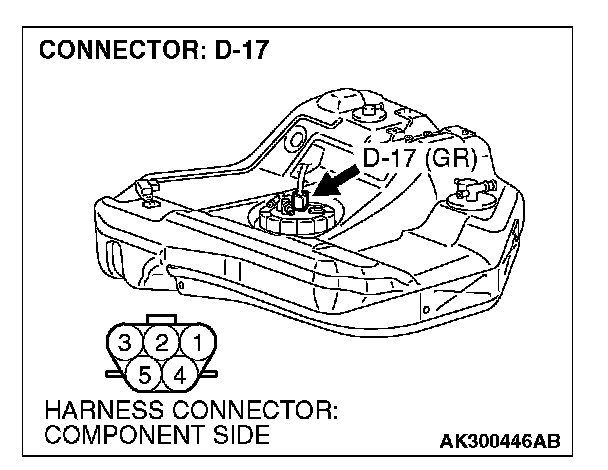

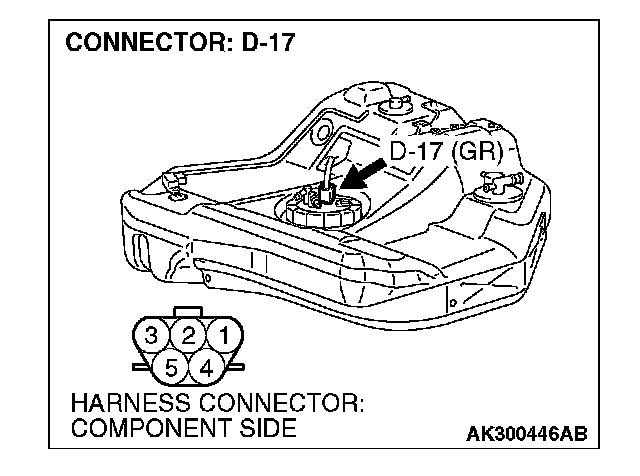

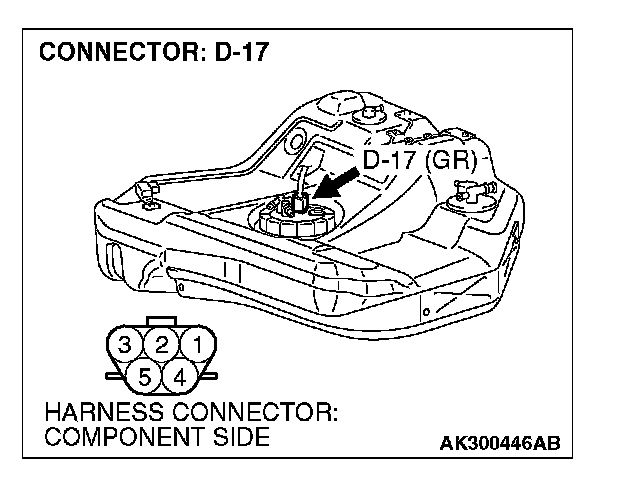

STEP 9. Check connector D-17 at fuel pump for damage.
Q: Is the connector in good condition?
YES: Go to Step 10.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.

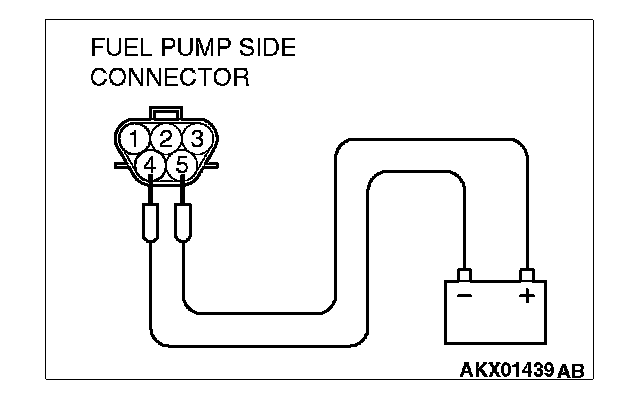

STEP 10. Check the fuel pump operation.
1. Disconnect fuel pump connector D-17.
2. Use jumper wires to connect fuel pump connector terminal No. 5 to the positive battery terminal and terminal No. 4 to the negative battery terminal.
- An operating sound of the fuel pump should be heard.
Q: Is the fuel pump operating properly?
YES: Go to Step 11.
NO: Replace the fuel pump. Then confirm that the malfunction symptom is eliminated.

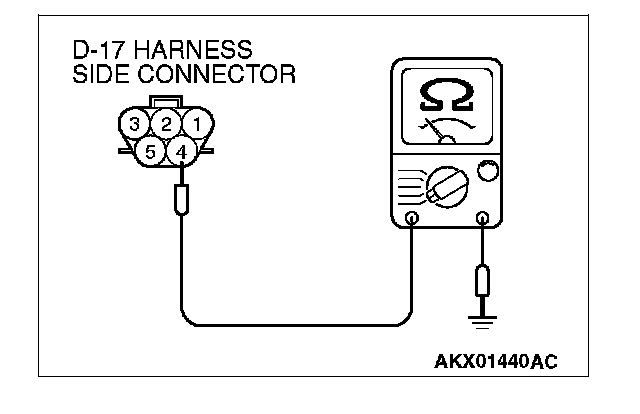

STEP 11. Check the continuity at fuel pump harness side connector D-17.
1. Disconnect the connector D-17 and measure at the harness side.
2. Check for the continuity between terminal No. 4 and ground.
- Should be less than 2 ohms.
Q: Is the continuity normal?
YES: Go to Step 12.
NO: Repair harness wire damage between fuel pump connector D-17 (terminal No. 4) and ground because of open circuit or harness damage. Then confirm that the malfunction symptom is eliminated.
STEP 12. Check for open circuit and short circuit to ground and harness damage between fuel pump relay 2 connector C-105 (terminal No. 4) and fuel pump connector D-17 (terminal No. 5).
NOTE: Check harness after checking intermediate connectors C-101. If intermediate connectors are damaged, repair or replace them. After to Harness Connector Inspection. Then check that the malfunction is eliminated.
Q: Is the harness wire in good condition?
YES: Go to Step 13.
NO: Repair it. Then confirm that the malfunction symptom is eliminated.

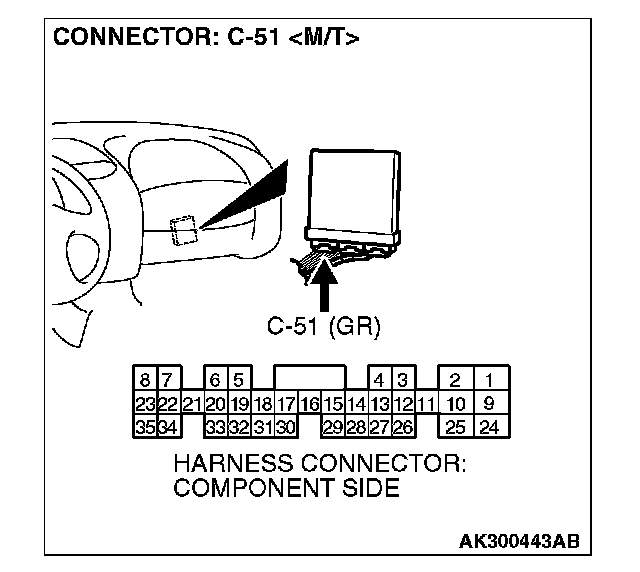

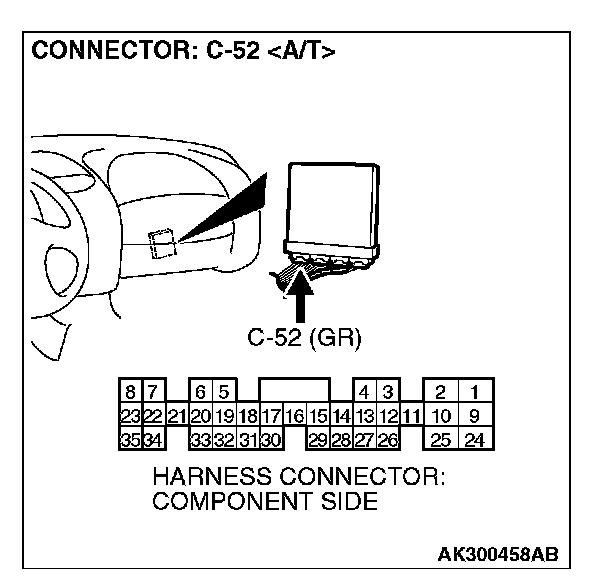

STEP 13. Check connector C-51 at ECM
Q: Is the connector in good condition?
YES: Go to Step 14.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.

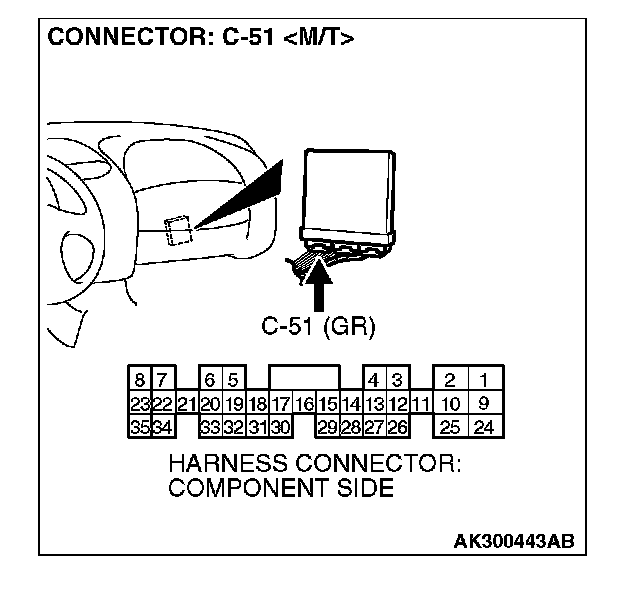

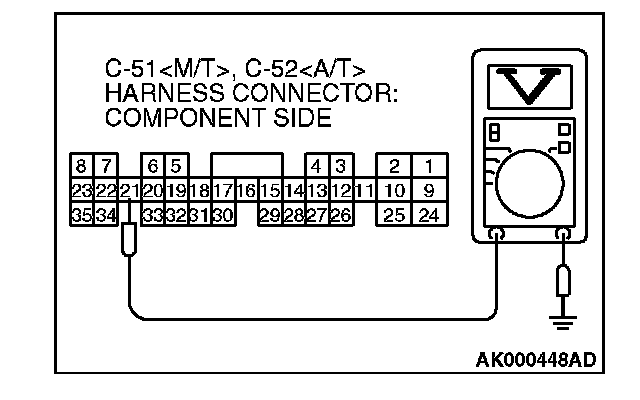

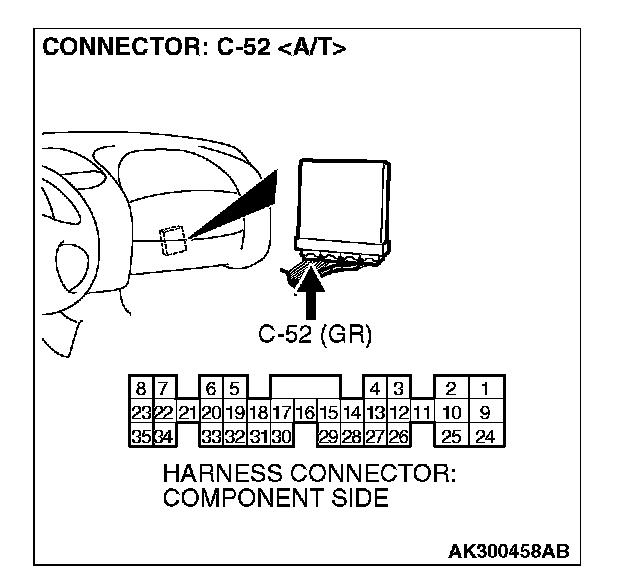

STEP 14. Measure the power supply voltage at ECM connector C-51
1. Disconnect the connector C-51
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal No. 21 and ground.
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Replace the ECM or PCM. Then confirm that the malfunction symptom is eliminated.

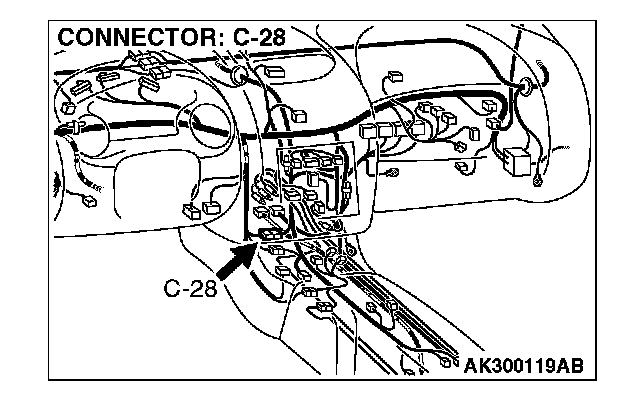

NO: Check harness connectors C-28 and C-108 at intermediate connector for damage and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connectors are in good condition, repair harness wire between fuel pump relay 2 connector C-105 (terminal No. 2) and ECM connector C-51 (terminal No. 21)
