Hose/Line HVAC: Service and Repair

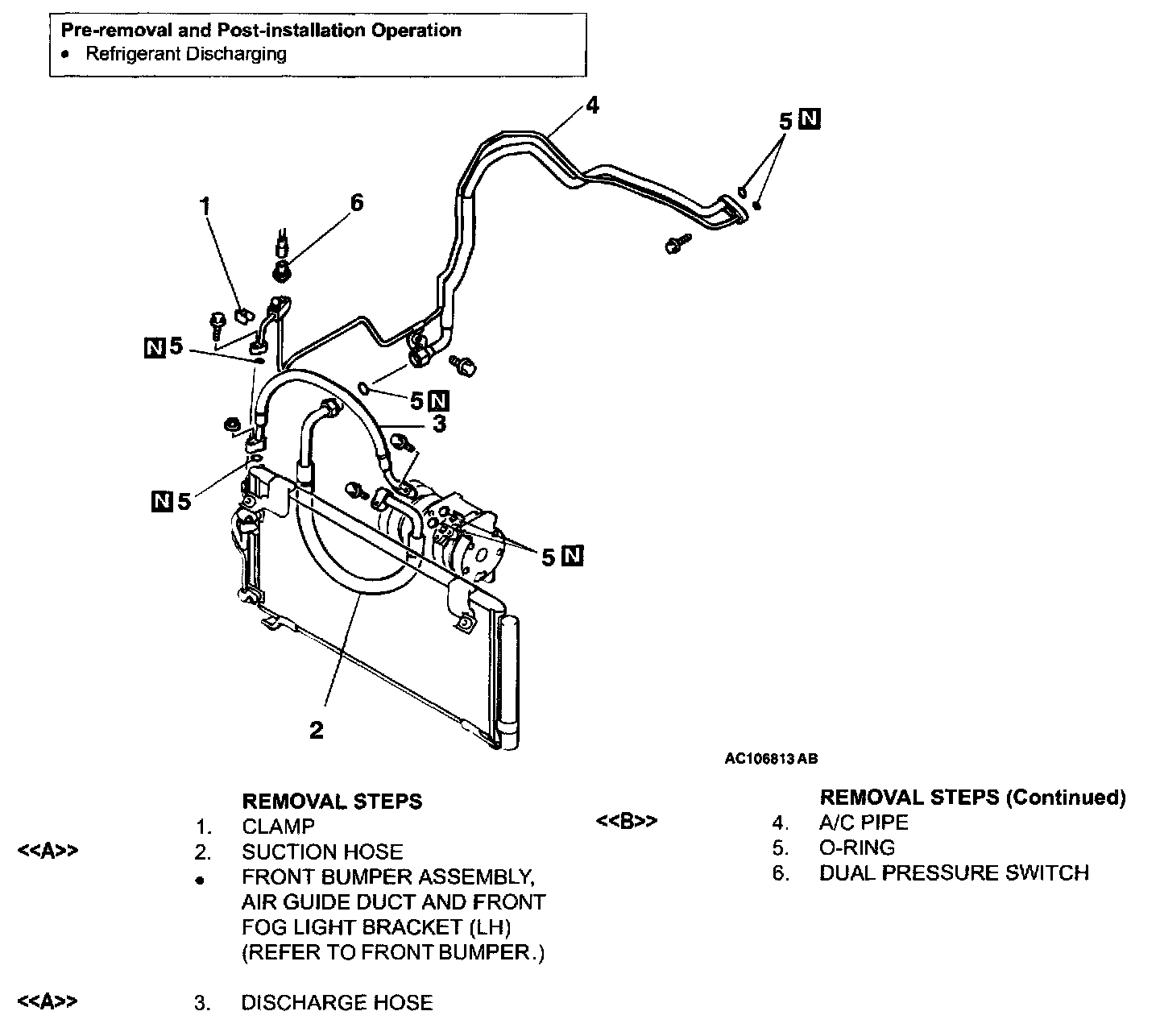

Refrigerant Line Removal:
REMOVAL SERVICE POINT
<> HOSE/PIPE DISCONNECTION
CAUTION: Seal the hoses completely, otherwise the compressor oil and receiver will absorb water vapor easily, possibly damaging the compressor and deteriorating performance.
Plug the disconnected hose, the condenser, the evaporator and the compressor nipple to prevent foreign material from getting into them.
<> A/C PIPE DISCONNECTION
Cut off the A/C pipe as it is too long to remove. To install the A/ C pipe, its replacement pipe is available.
Refrigerant Line Installation:
INSTALLATION SERVICE POINT
>>A<< SUCTION HOSE INSTALLATION
When replacing the suction hose, refill them with a specified amount of compressor oil, and then install them.
Compressor oil: SUN PAG 56
Quantity:
- Suction hose: 10 cu.cm (0.3 floz)
>>B<< A/C PIPE INSTALLATION
The A/C replacement pipe is available. To install the pipe, the replacement pipe should be used.
