Air Conditioning System (Eclipse Spyder)

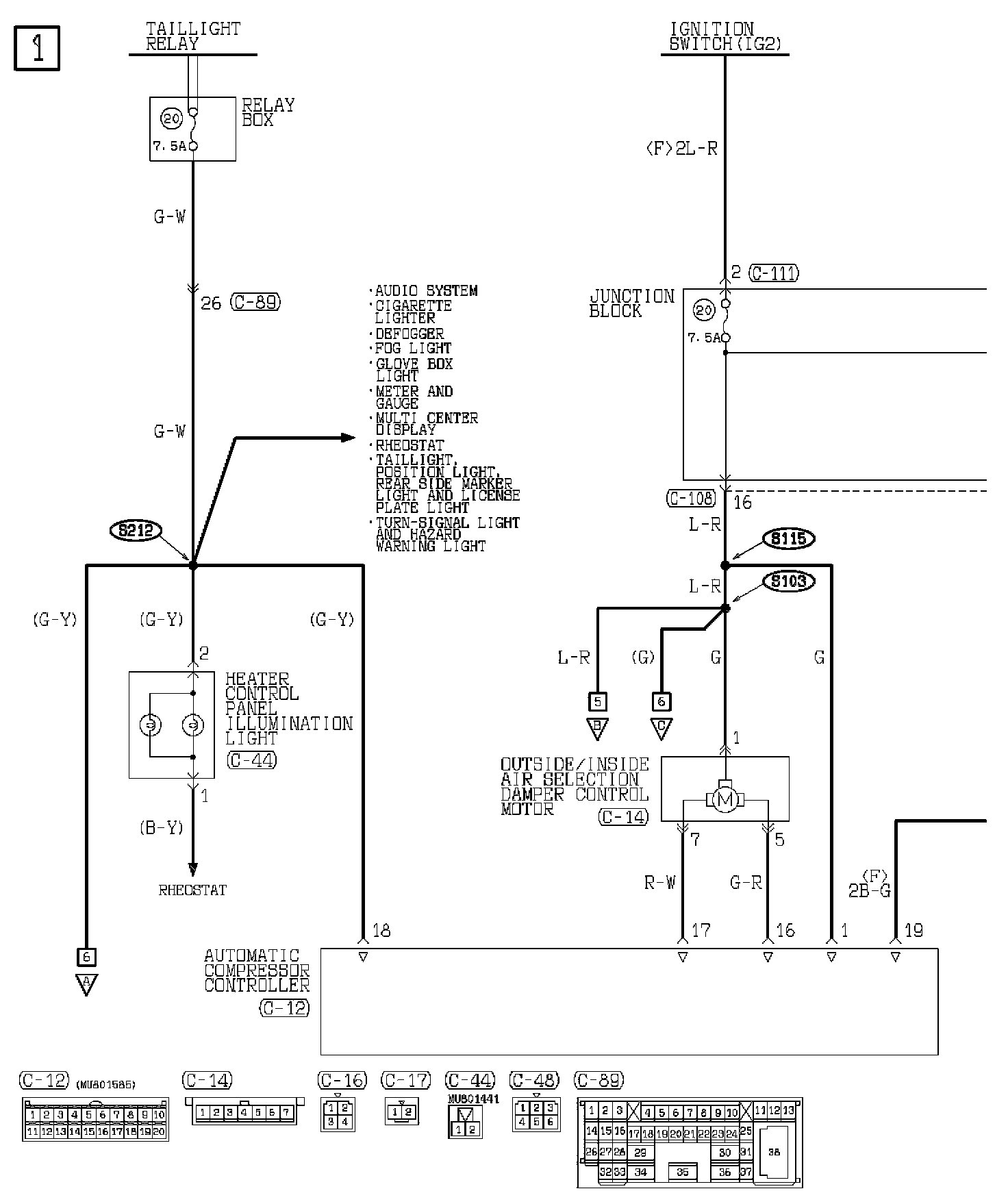

Air Conditioning System <Eclipse Spyder> Part 1:

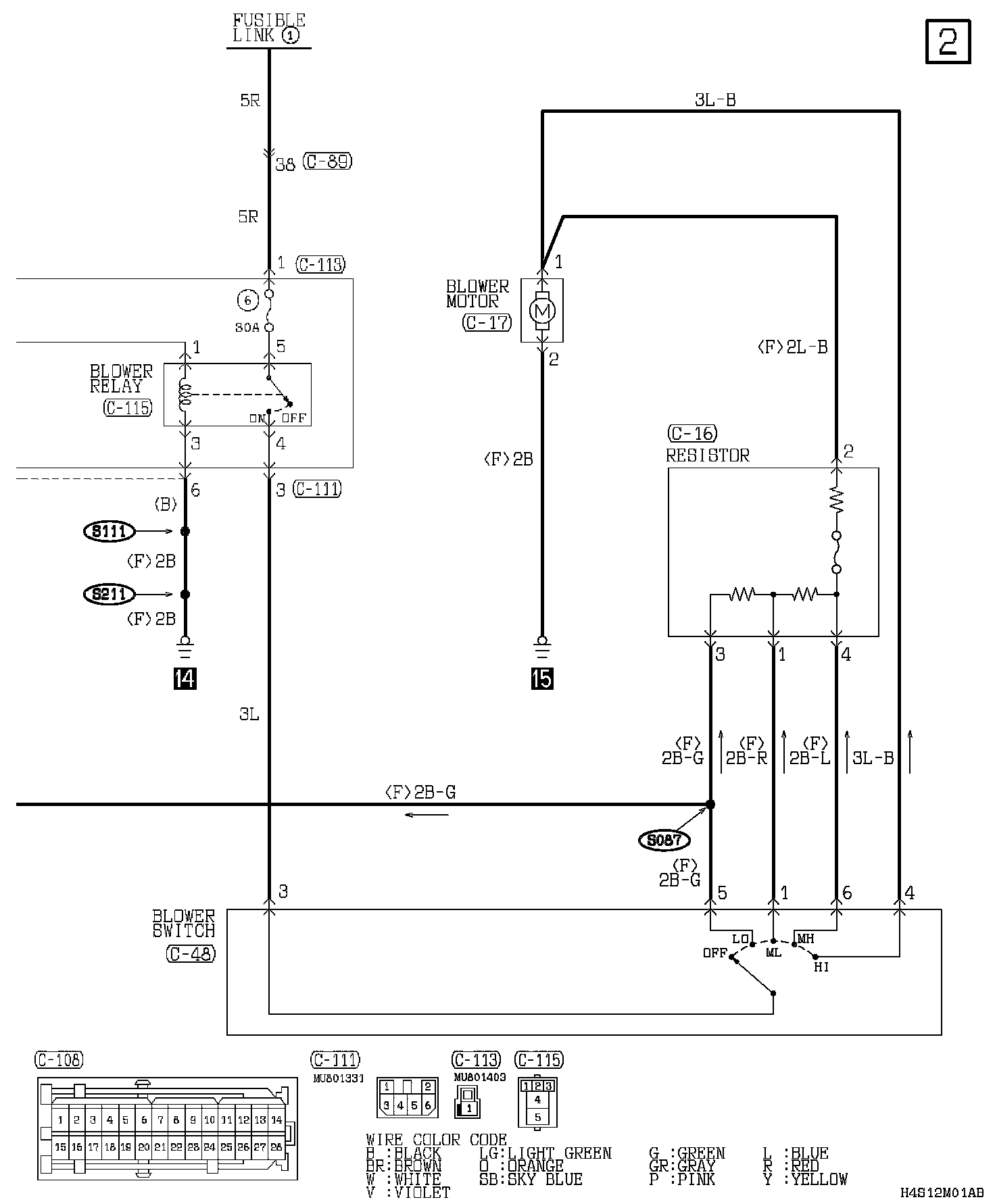

Air Conditioning System <Eclipse Spyder> Part 2:

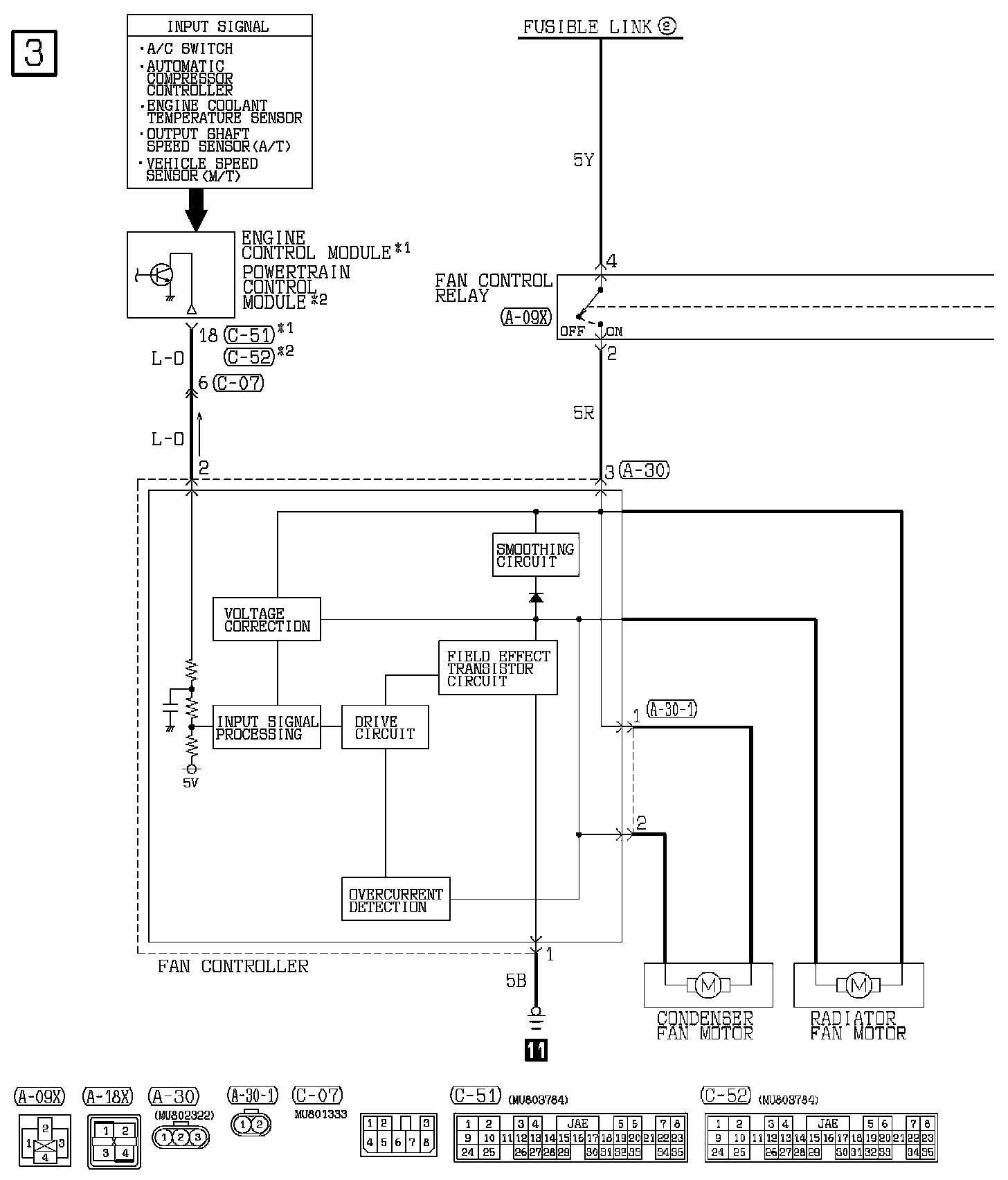

Air Conditioning System <Eclipse Spyder> Part 3:

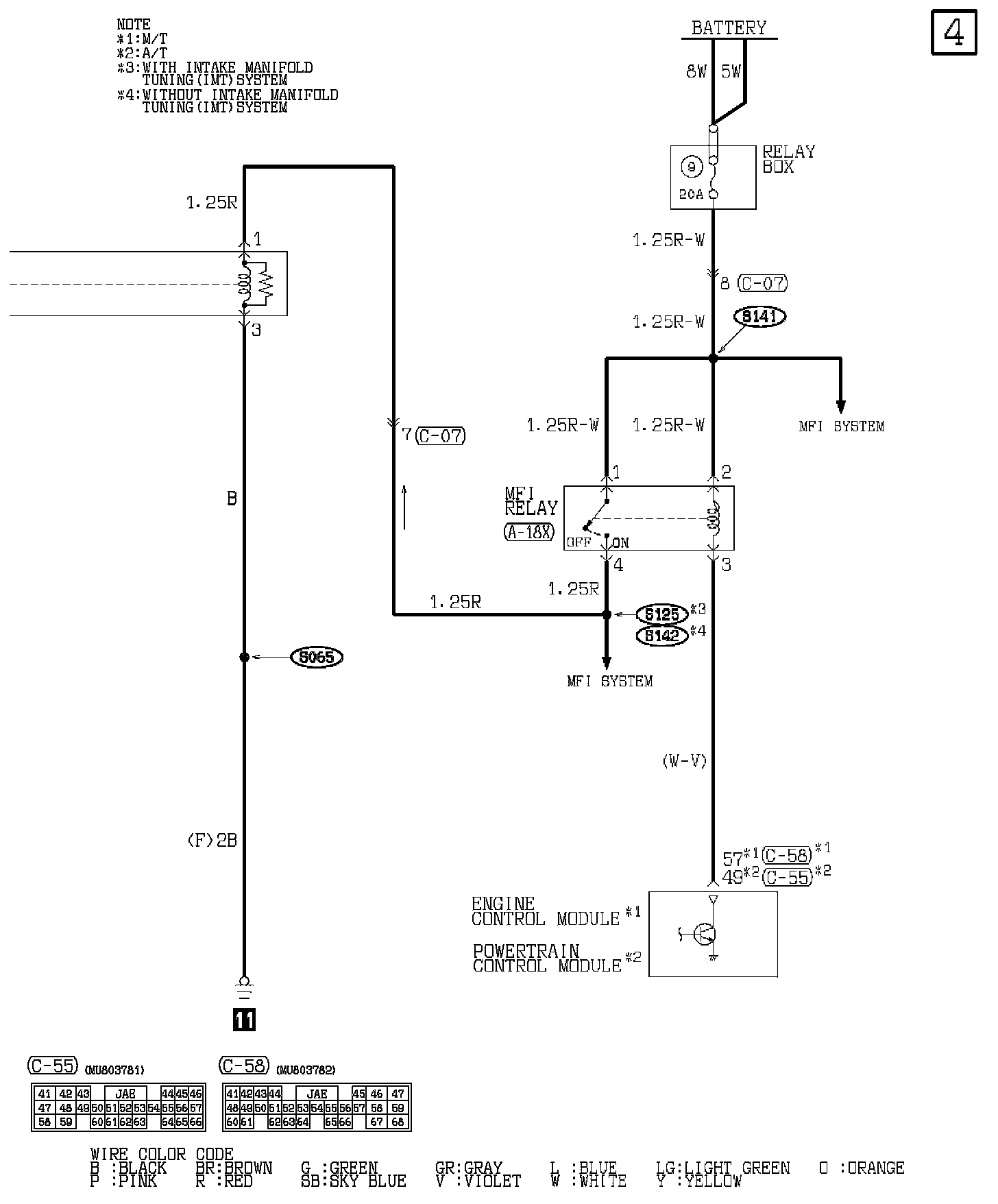

Air Conditioning System <Eclipse Spyder> Part 4:

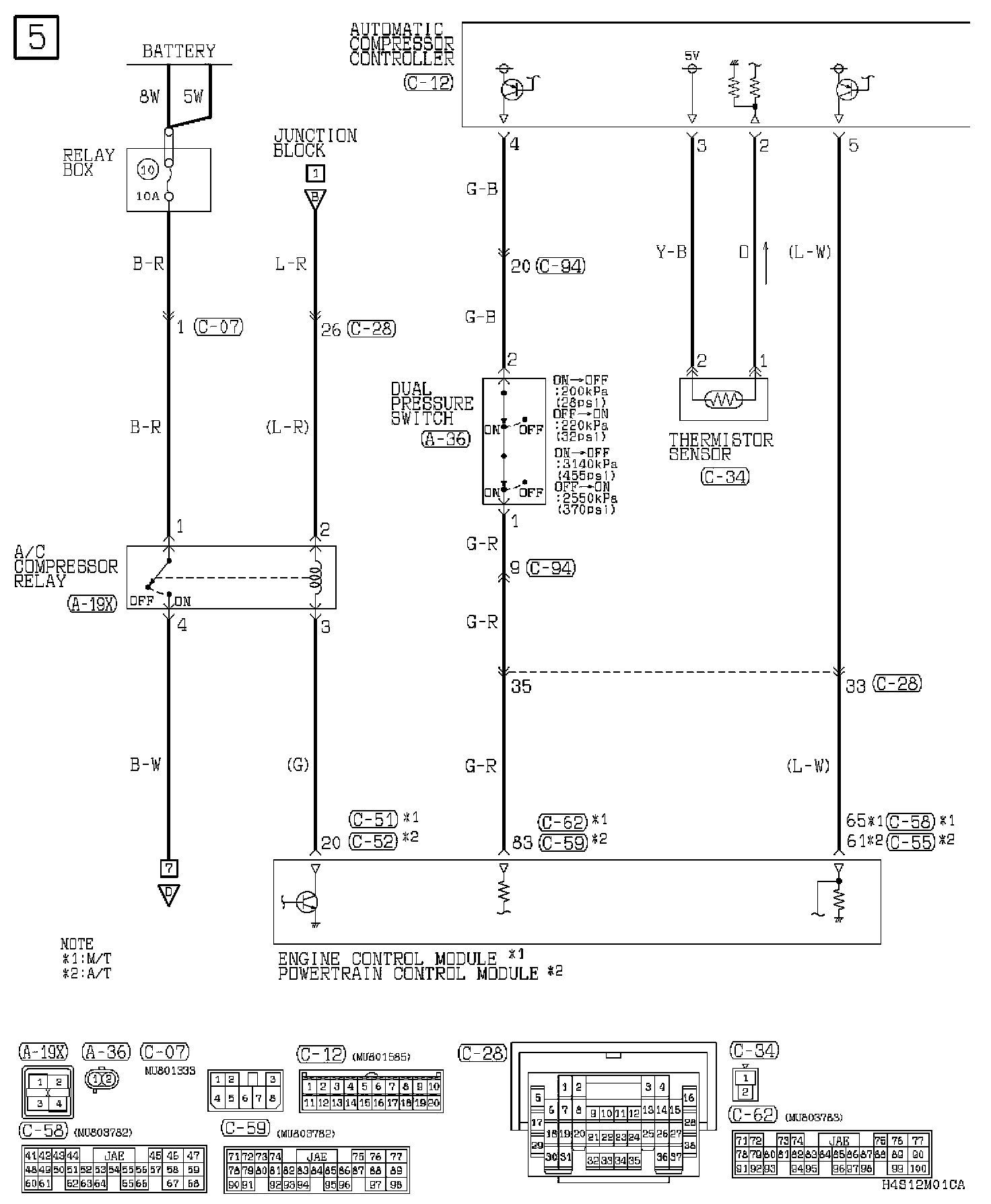

Air Conditioning System <Eclipse Spyder> Part 5:

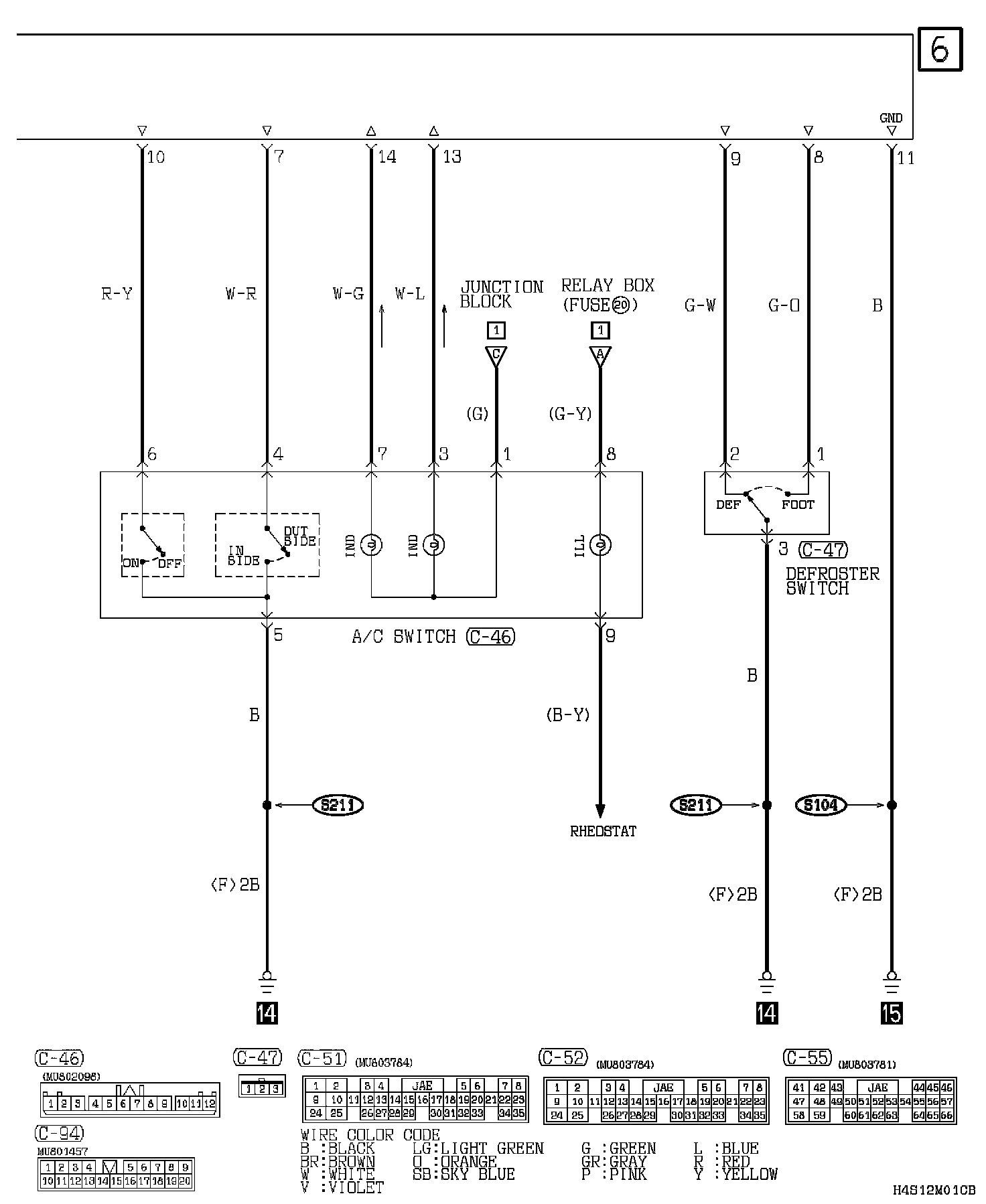

Air Conditioning System <Eclipse Spyder> Part 6:

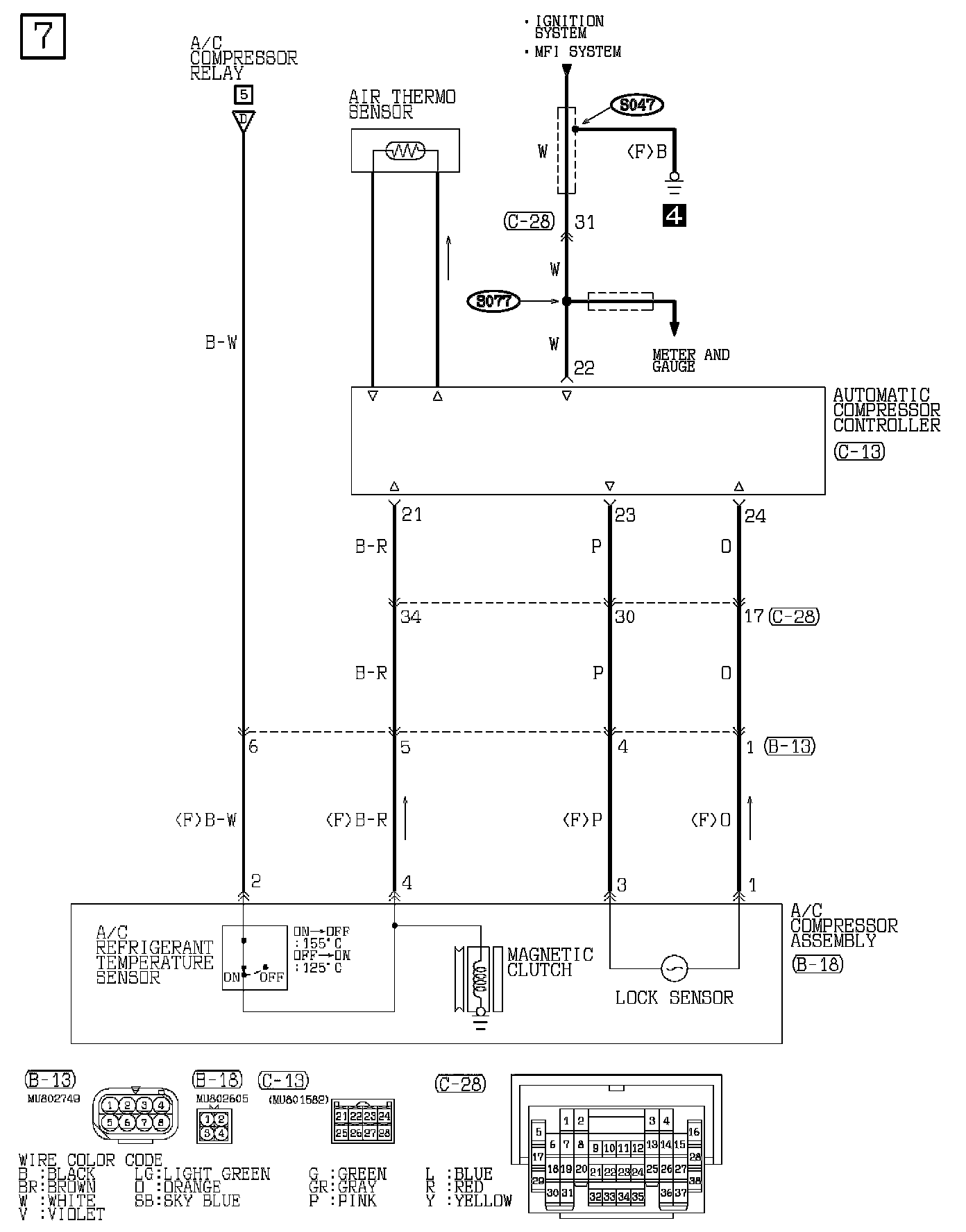

Air Conditioning System <Eclipse Spyder> Part 7:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
