Eclipse V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
System Diagram
>>
Vacuum Circuit Diagram
Vacuum Circuit Diagram

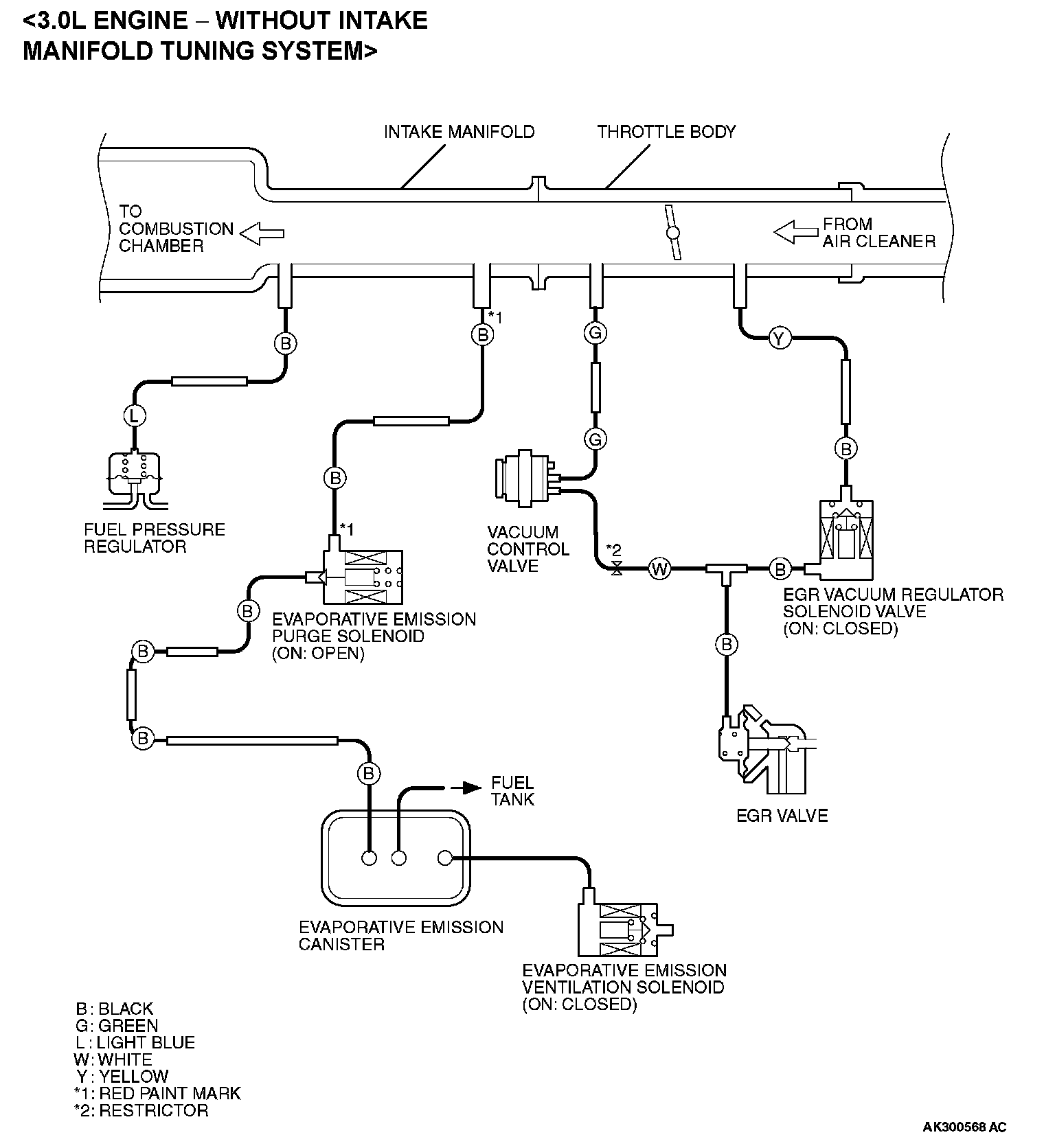

Vacuum Circuit Diagram <3.0L Engine Without Intake Manifold Tuning System>:
Vacuum Circuit Diagram <3.0L Engine With Intake Manifold Tuning System>:
