Home >> Mitsubishi >> 2005 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> D Connectors - Floor and Roof >> D-01 to D-24

D-01 to D-24

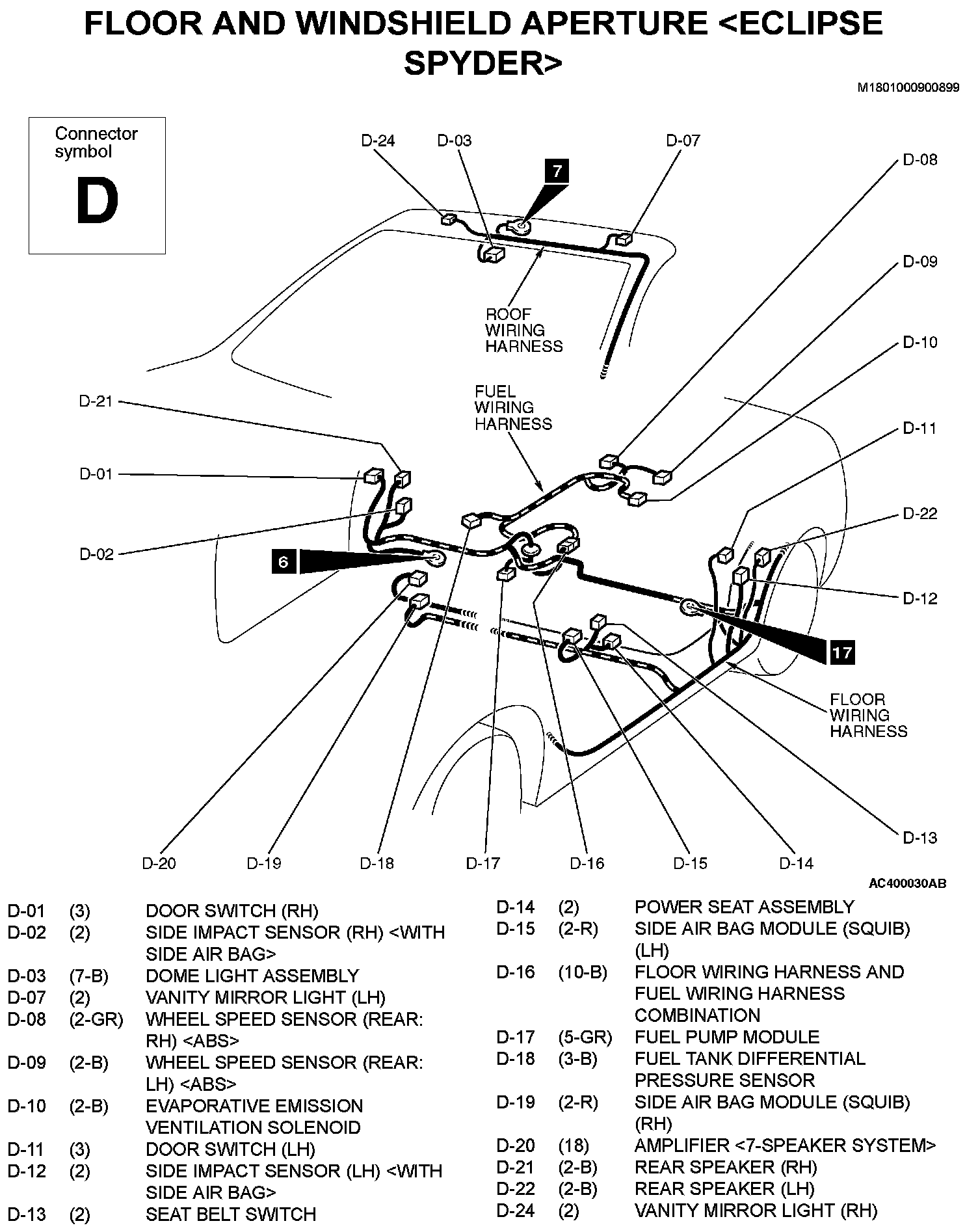

D-01 To D-24:
