Removal and Installation
MASTER CYLINDER AND BRAKE BOOSTERREMOVAL AND INSTALLATION
Refer to GROUP 35A, Master Cylinder and Brake Booster P.35A-33.

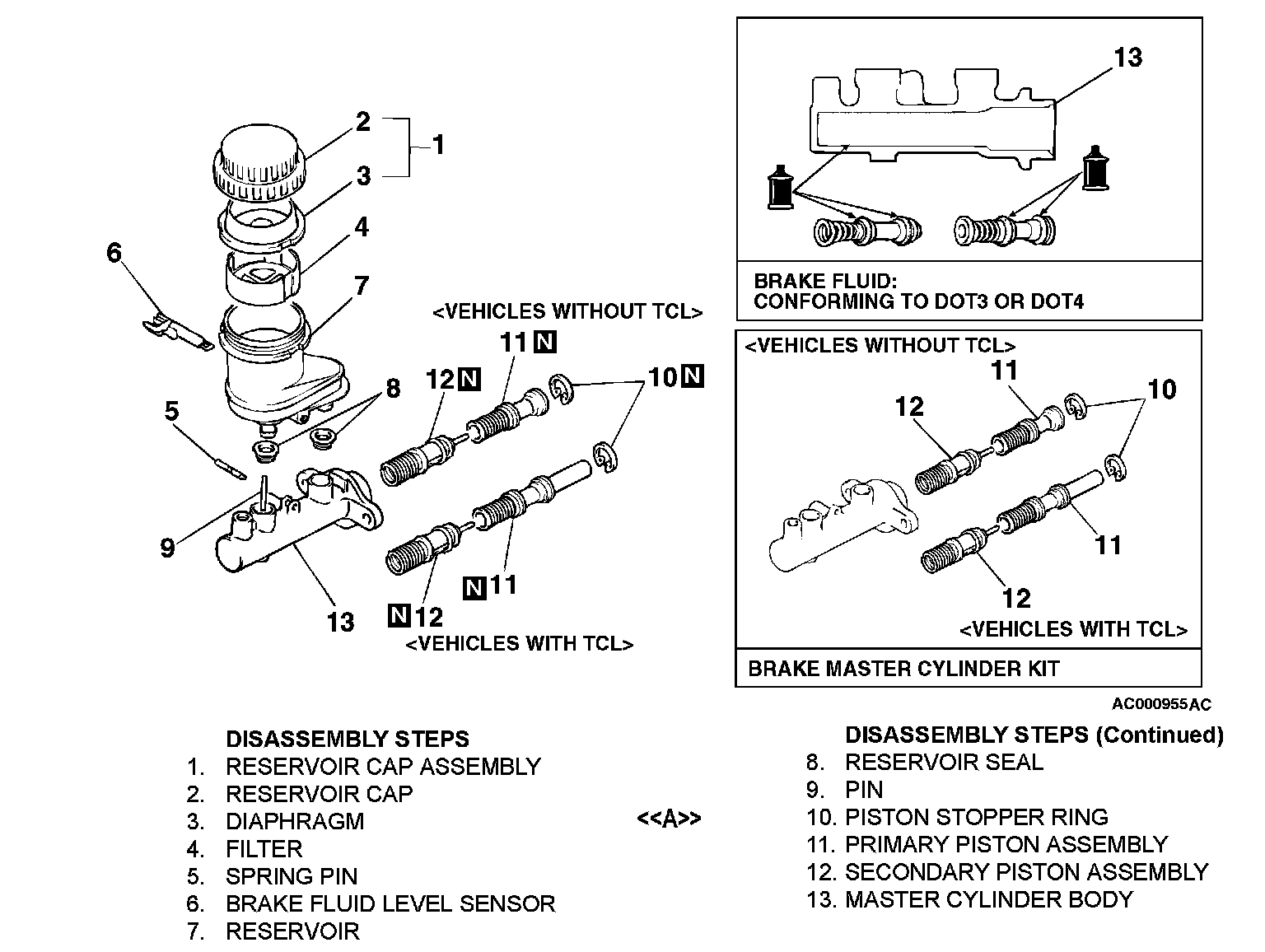

MASTER CYLINDER
DISASSEMBLY AND ASSEMBLY
CAUTION: Do not disassemble the primary and secondary piston assemblies.
DISASSEMBLY SERVICE POINT

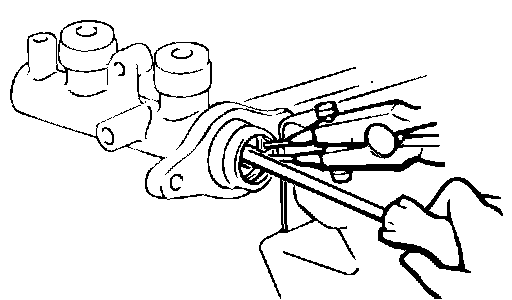

<> PISTON STOPPER RING DISASSEMBLY
While depressing the piston, remove the piston stopper ring.
INSPECTION
^ Check the inner surface of the master cylinder body for corrosion or pitting.
^ Check the primary and secondary pistons for corrosion, scoring, wear or damage.
^ Check the diaphragm for cracks and wear.
