Anti-Lock Braking System (ABS)

CHECK AT ABS-ECU

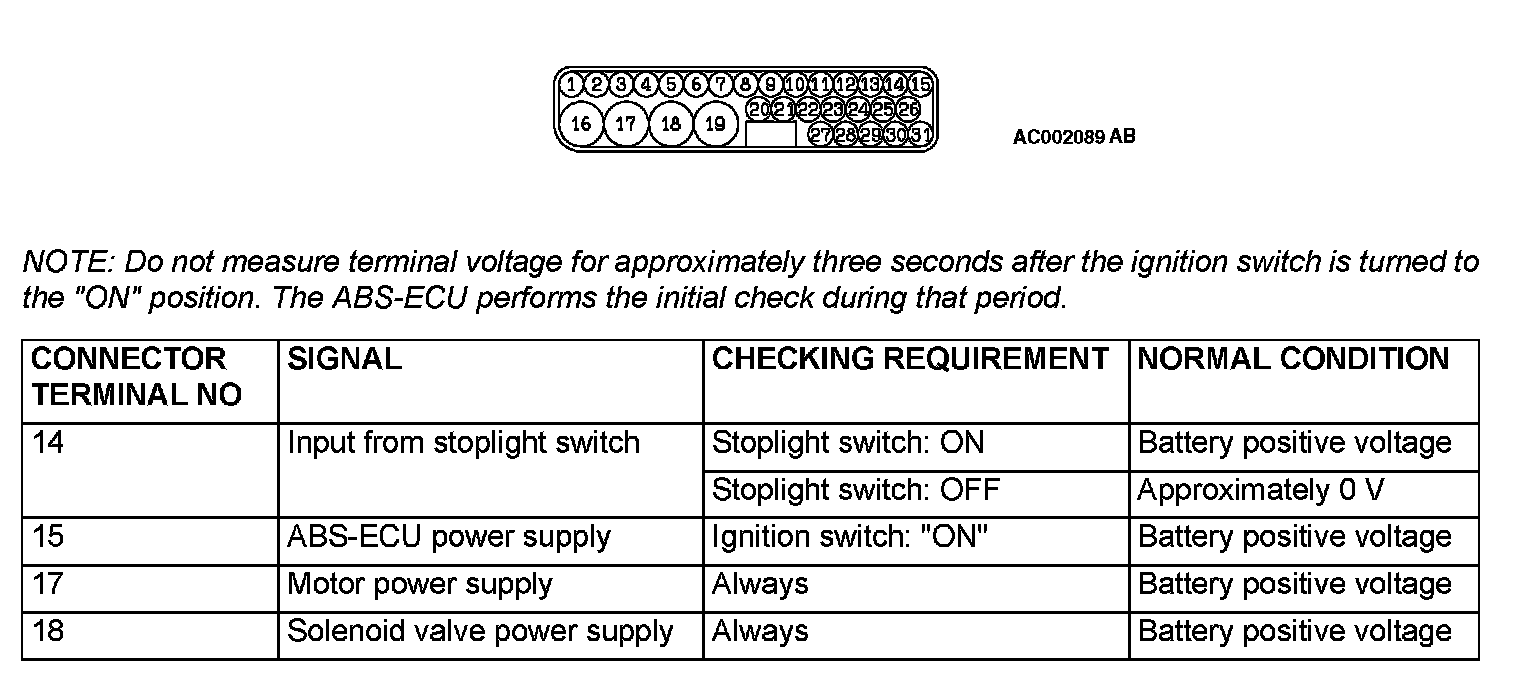

TERMINAL VOLTAGE CHECK CHART
1. Measure the voltages between terminals (16) and (19) (ground terminals) and each respective terminal.





2. The terminal layouts are shown in the illustrations.

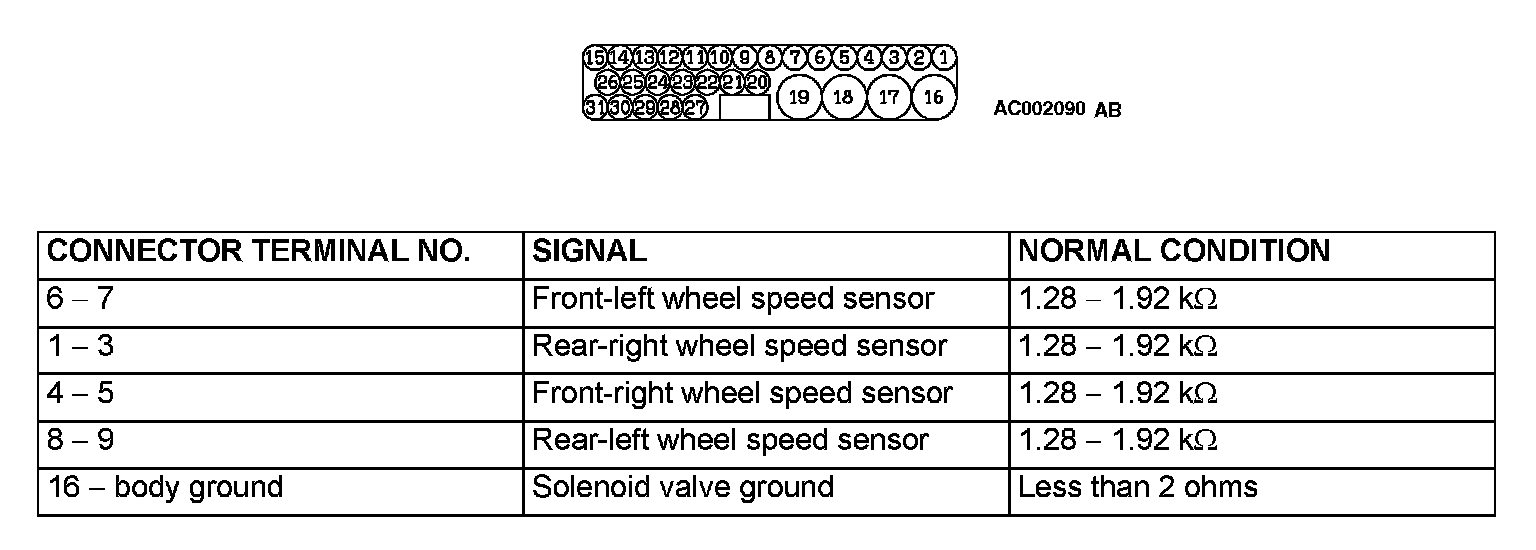

RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS
1. Turn the ignition switch to the "LOCK" (OFF) position and disconnect the ABS-ECU connector before checking resistance and continuity.
2. Check between the terminals indicated in the table.





3. The terminal layouts are shown in the illustration.
