Transmission Control Systems

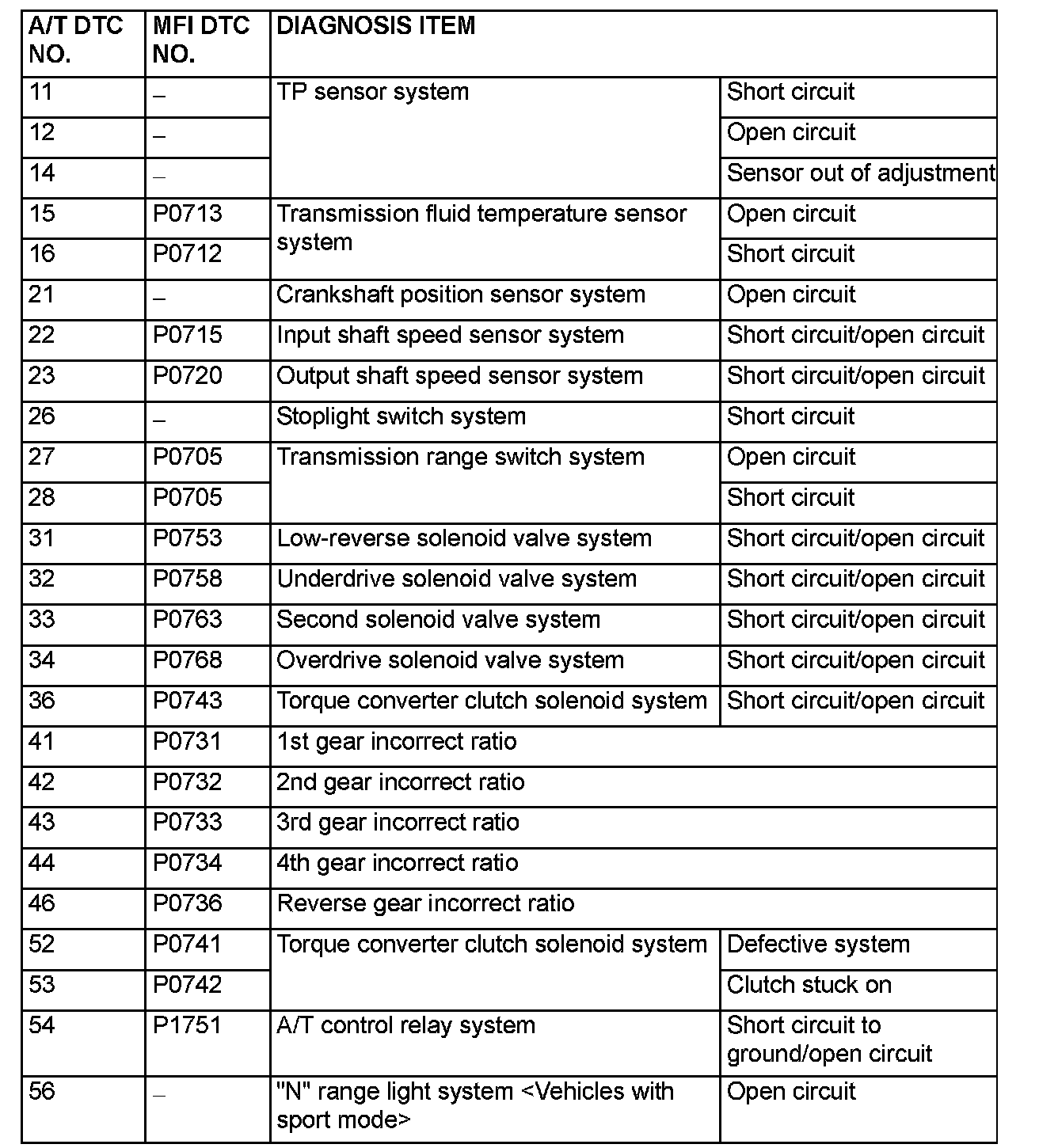

DIAGNOSTIC TROUBLE CODE CHART





NOTE: The MFI diagnostic trouble codes are the codes which are set when item "MFI" is selected on scan tool MB991958 (MUT-III sub assembly). However, the codes above indicate failure in the automatic transmission.
