Manual Transmission/Transaxle: Application and ID

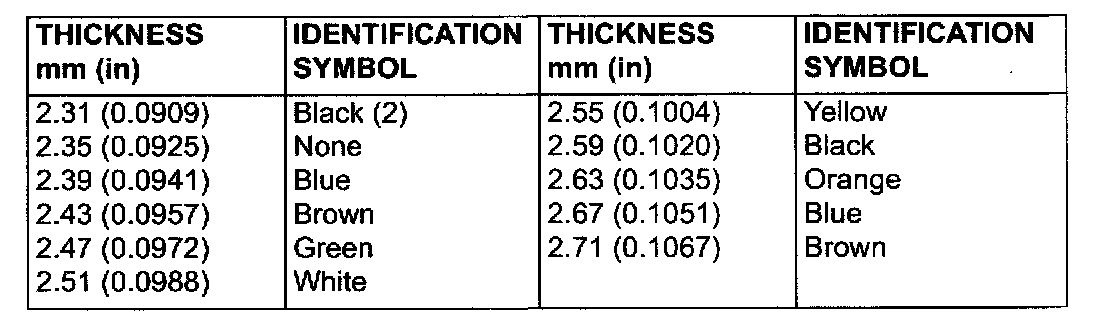

SNAP RINGS, SPACERS AND THRUST PLATE FOR ADJUSTMENTSnap ring
(For adjustment of input shaft front bearing end play)
Snap ring
(For adjustment of input shaft rear bearing end play)
(For adjustment of output shaft front bearing end play)
Snap ring
(For adjustment of output shaft 3rd speed gear end play)
Snap ring
(For adjustment of output shaft rear bearing end play)
Spacer
(For adjustment of differential case preload)
Spacer
(For adjustment of differential case backlash)
