Rear Knuckle: Service and Repair

REMOVAL AND INSTALLATION

CAUTION: * Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

REMOVAL SERVICE POINT

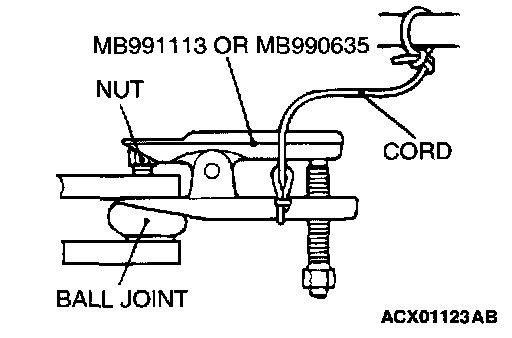

[[A]] TOE CONTROL ARM DISCONNECTION





CAUTION:
^ Loosen the nut from the ball joint instead of removing it.
^ Hang special tool MB991113 or MB990635 with a cord, etc. to prevent it from falling.

INSPECTION
Check the knuckle for wear or cracks.
