Home >> Mitsubishi >> 2005 >> Eclipse L4-2.4L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> Timing Belt

Timing Belt

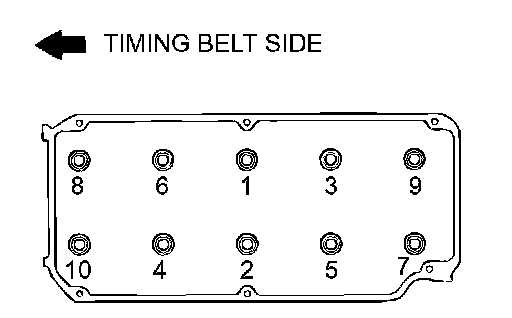

Cylinder Head Tightening Sequence:





Timing Belt

Part 1 Of 2:

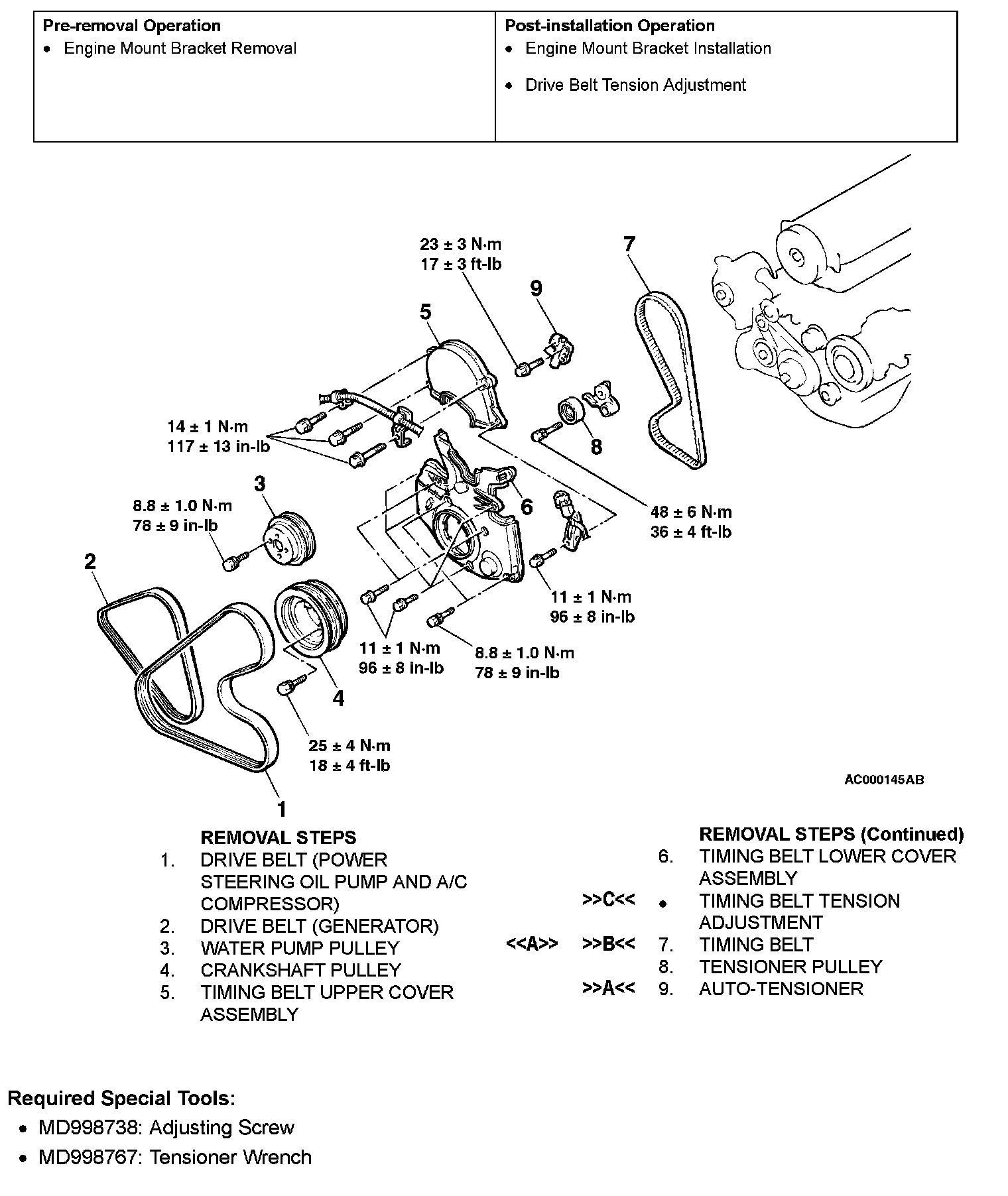

Timing Belt B
