Wheel Speed Sensor: Service and Repair

WHEEL SPEED SENSOR

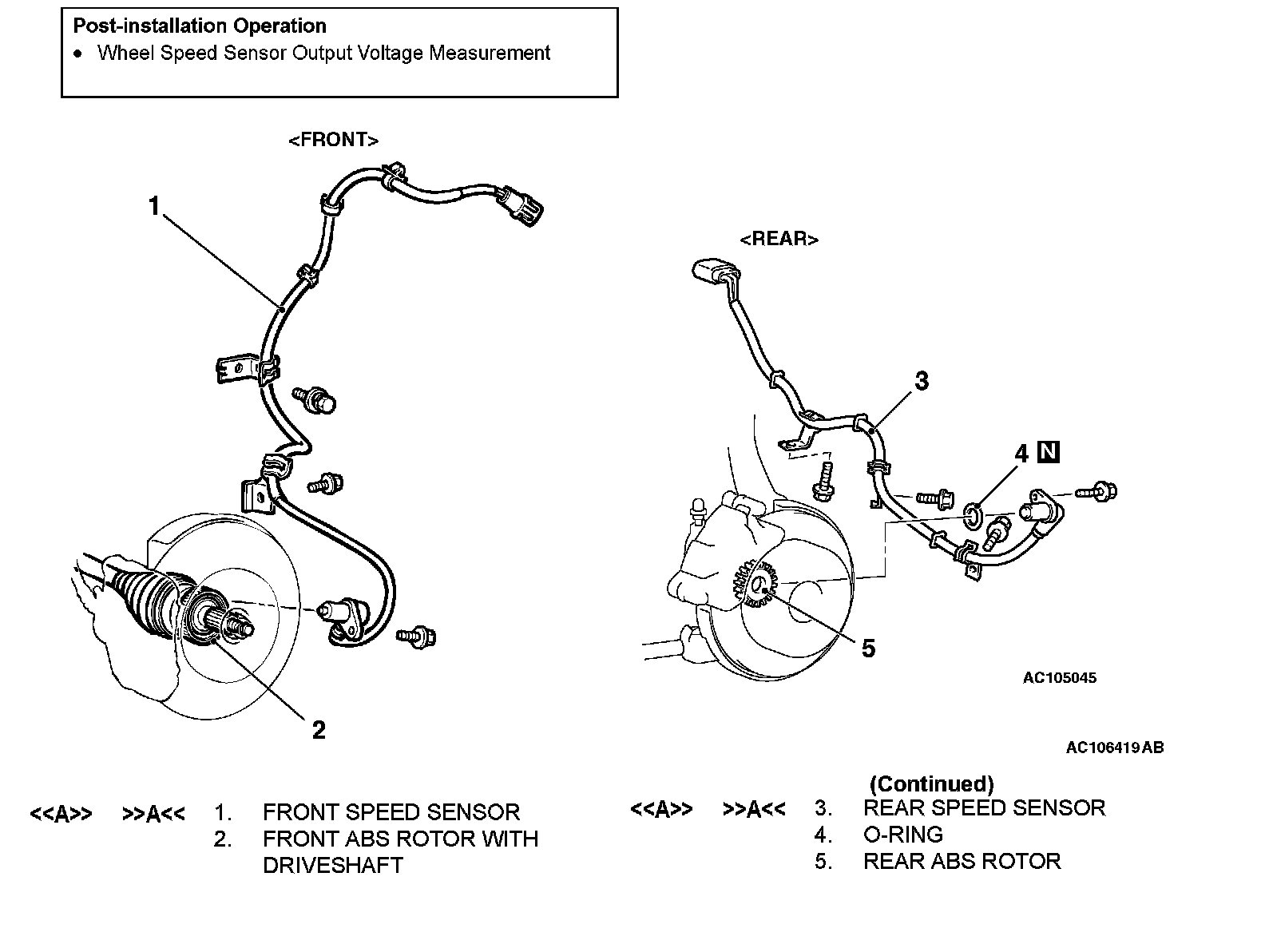

REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
<> FRONT SPEED SENSOR/REAR SPEED SENSOR REMOVAL

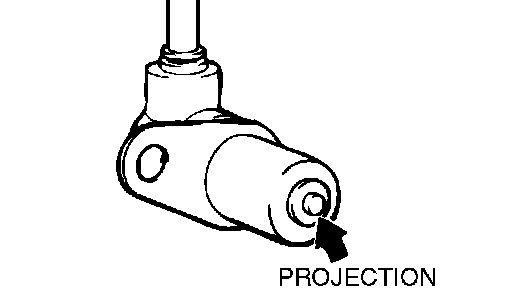

CAUTION: Be careful when handling the projection at the tip of the speed sensor and the toothed edge of the ABS rotor so as not to damage them by contacting other parts.

INSTALLATION SERVICE POINT
>>A<< FRONT SPEED SENSOR/REAR SPEED SENSOR INSTALLATION

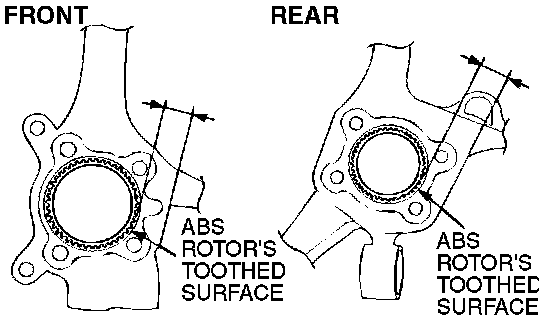

The clearance between the wheel speed sensor and the ABS rotor's toothed surface is not adjustable, but measure the distance between the sensor installation surface and the ABS rotor's toothed surface.
Standard value: 28.2 - 28.5 mm (1.11 - 1.12 inches)
