Inspection Procedure 33

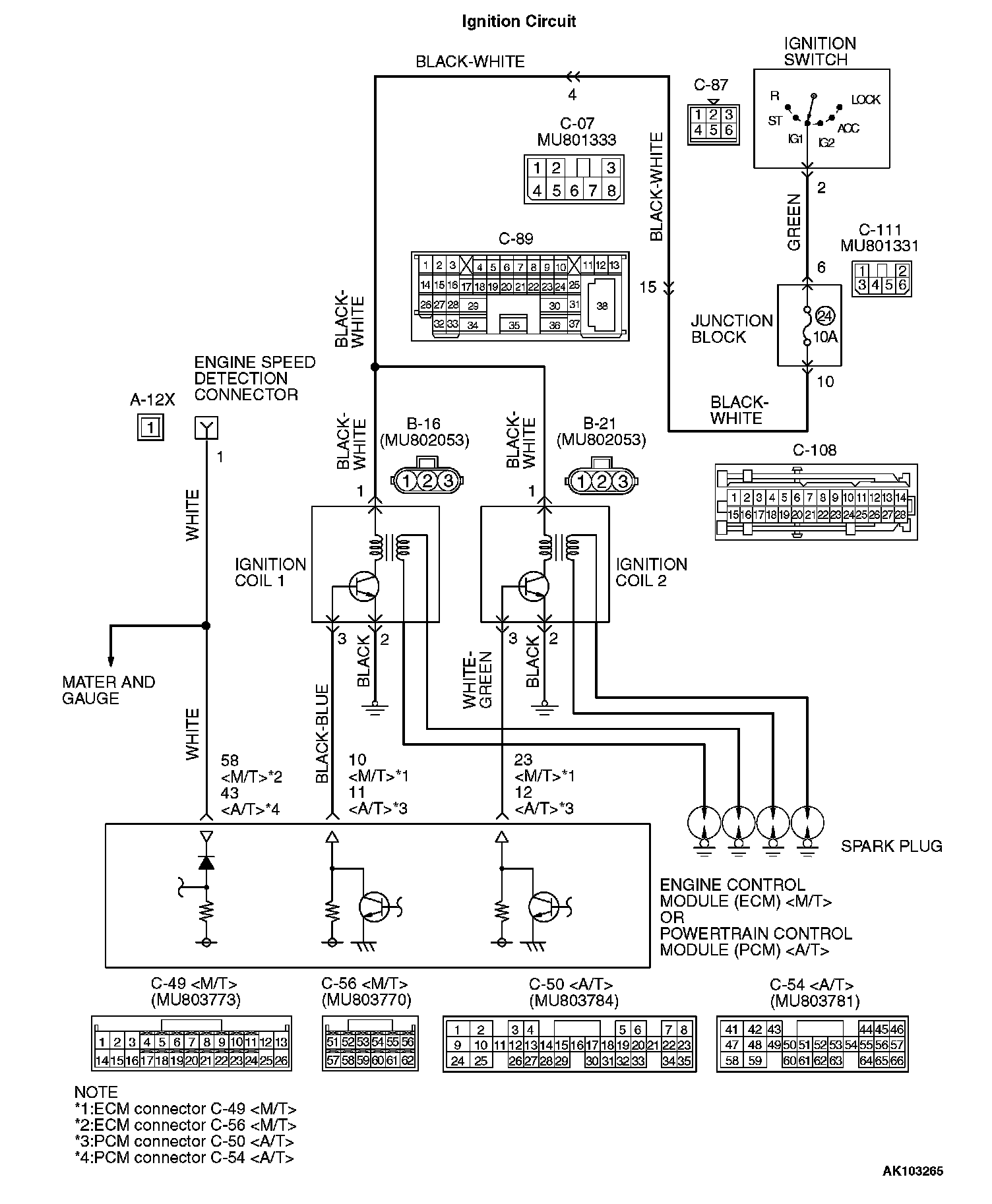

Ignition Circuit SystemIgnition Circuit Part 1:
Ignition Circuit Part 2:
CIRCUIT OPERATION
- The ignition coil is energized by Battery positive voltage from the ignition switch.
- When the ECM
- If the ignition power transistor is turned on, the primary circuit of the ignition coil is energized by grounding the ignition coil through terminal No. 2, causing the primary current to flow to the ignition coil.
TROUBLESHOOTING HINTS (The most likely causes for this case:)
- Malfunction of the ignition coil.
- Malfunction of the ignition power transistor.
- Improper connector contact, open circuit or short-circuited harness wire.
- Malfunction of the ECM
DIAGNOSIS
STEP 1. Check the ignition coil.
Refer to Ignition System - On-vehicle service - Ignition Coil Check.
Q: Are there any abnormalities?
YES: Go to Step 2.
NO: Replace the ignition coil. Then confirm that the malfunction symptom is eliminated.

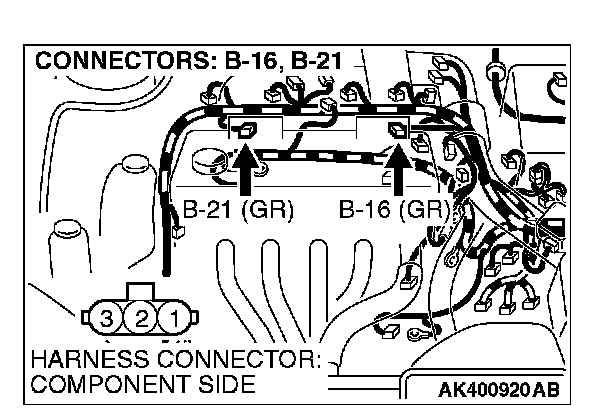

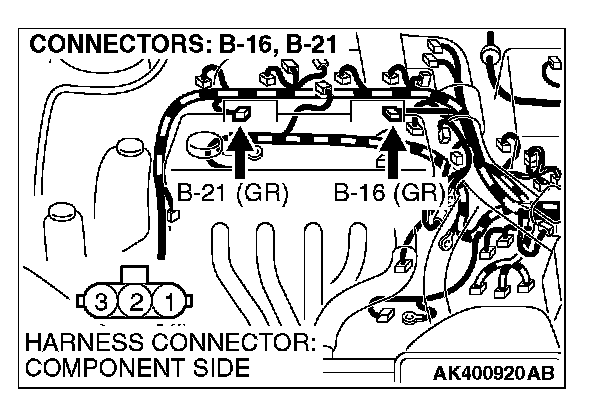

STEP 2. Check harness connector B-16, B-21 at ignition coil for damage.
Q: Is the harness connector in good condition?
YES: Go to Step 3.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.

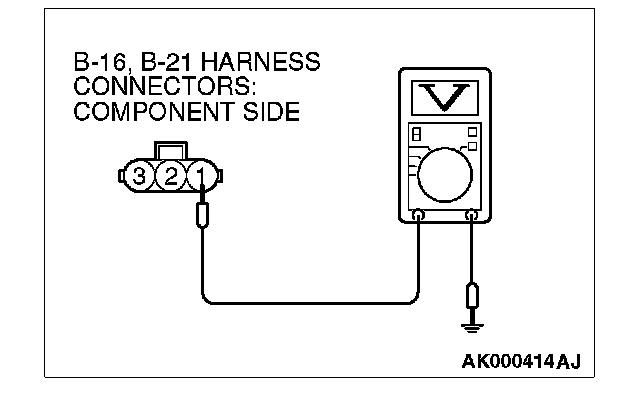

STEP 3. Measure the power supply voltage at ignition coil connectors B-16, B-21.
1. Disconnect the connector B-16, B-21 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal No. 1 and ground.
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 4.

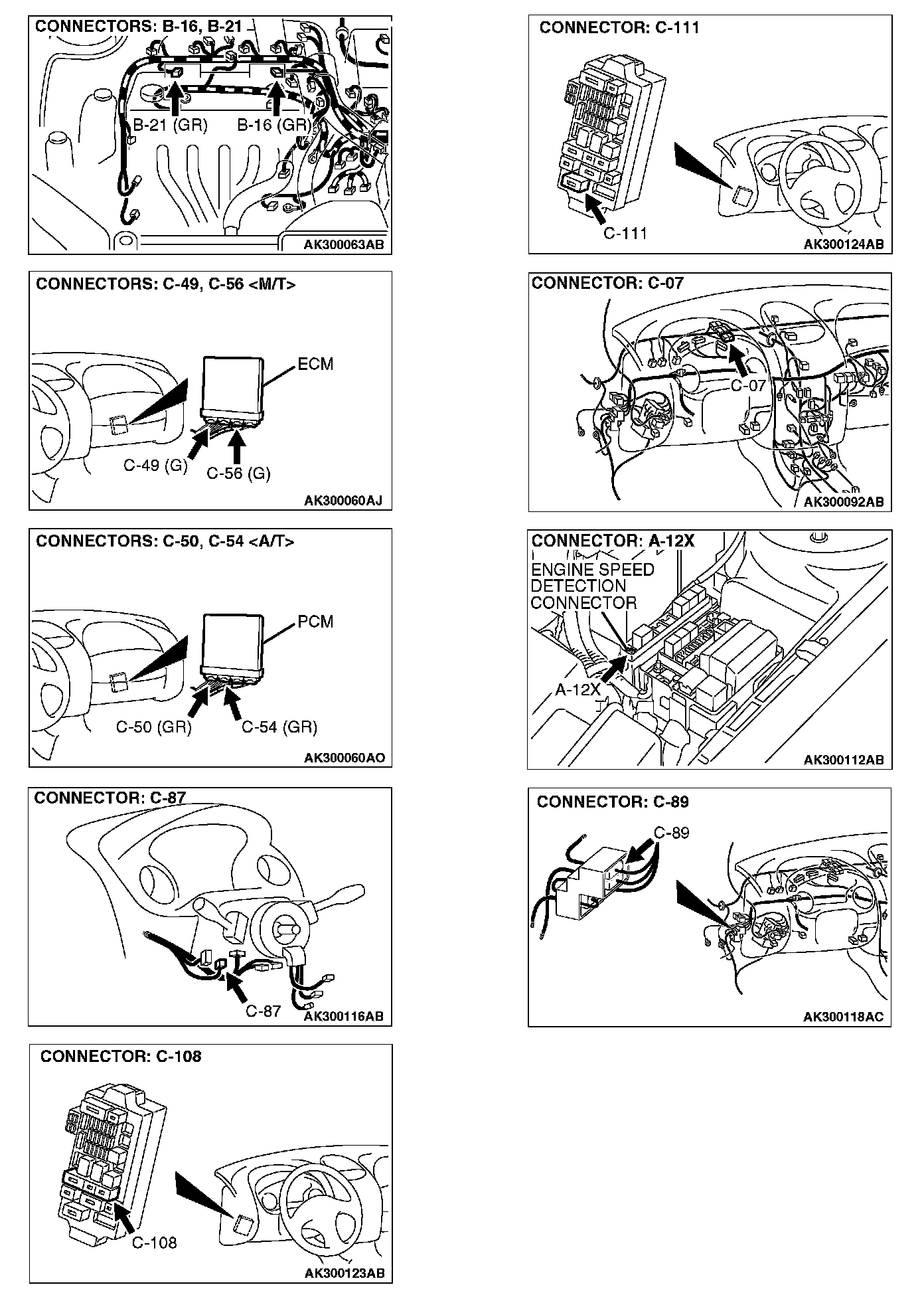

NO: Check the connector C-07, C-89, C-108 and C-111 at intermediate connectors for damage and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connector are in good condition, repair harness wire between ignition switch connectors C-87 (terminal No. 2) and ignition coil connectors B-16, B-21 (terminals No. 1) because of open circuit. Then confirm that the malfunction symptom is eliminated.

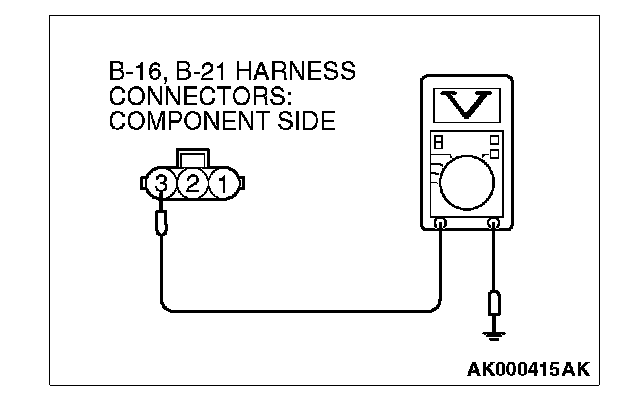

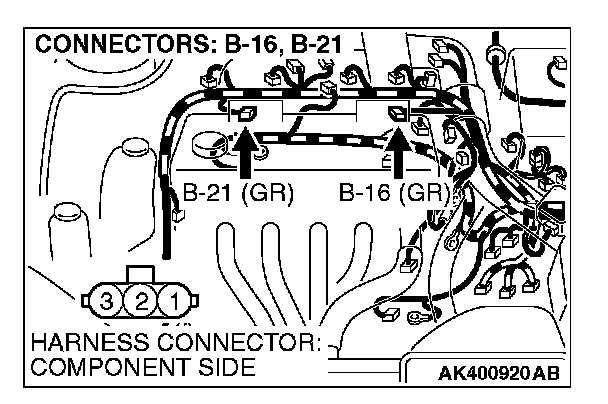

STEP 4. Check the circuit at ignition coil harness side connector B-16, B-21.
1. Disconnect the connectors B-16, B-21 and measure at the harness side.
2. Engine cranking.
3. Measure the voltage between terminal No. 3 and ground.
- Voltage should be 0.3 and 3.0 volts.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 0.3 and 3.0 volts?
YES: Go to Step 7.
NO: Go to Step 5.

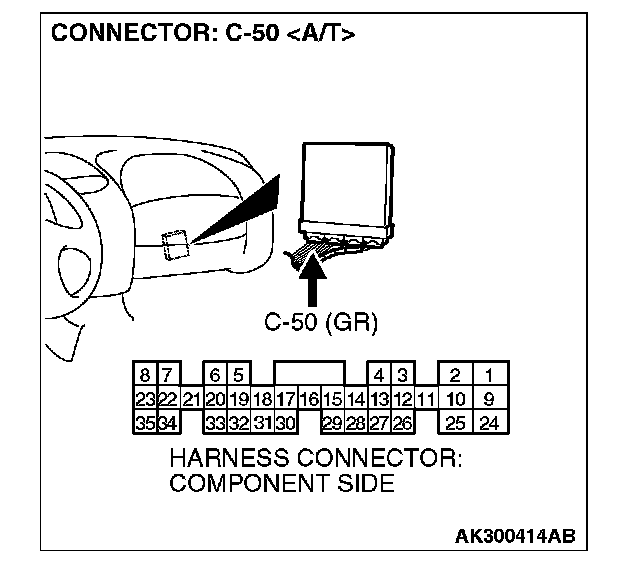

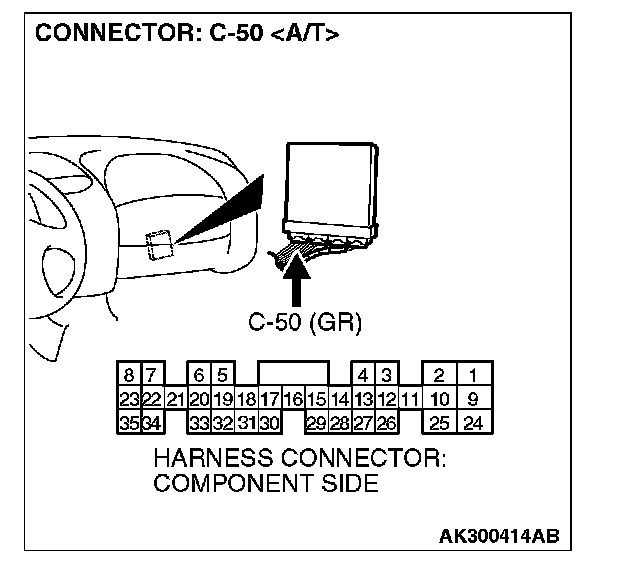

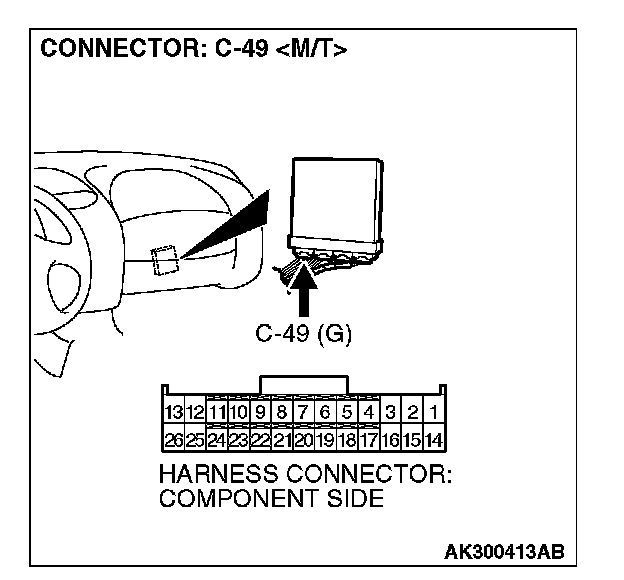

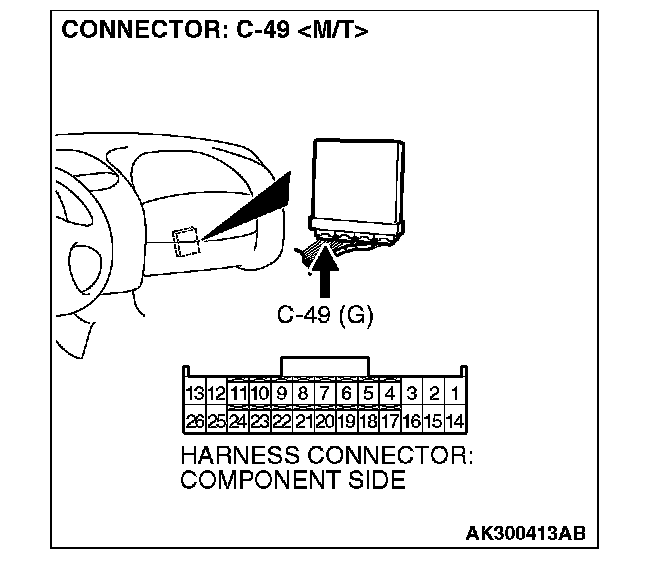

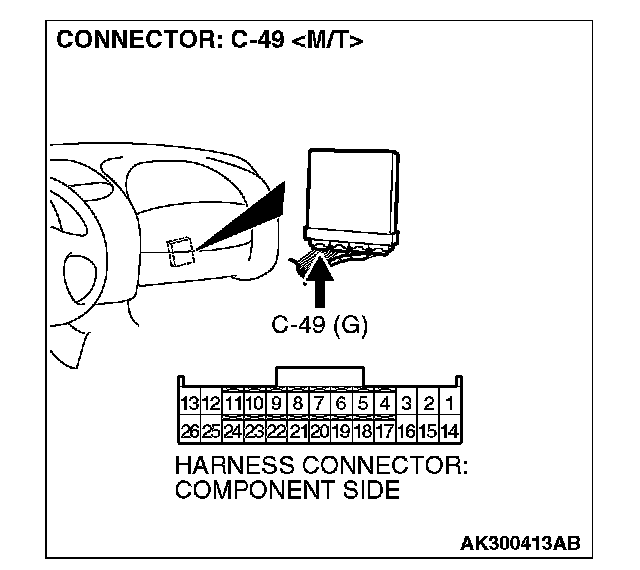

STEP 5. Check connector C-49 at ECM
Q: Is the connector in good condition?
YES: Go to Step 6.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.
STEP 6. Check for open circuit and short circuit to ground between ignition coil connector and ECM connector
a. Check the harness wire between ignition coil connector B-16 (terminal No. 3) and ECM connector C-49 (terminal No. 10)
b. Check the harness wire between ignition coil connector B-21 (terminal No. 3) and ECM connector C-49 (terminal No. 23)
Q: Is the harness wire in good condition?
YES: Replace the PCM. Then confirm that the malfunction symptom is eliminated.
NO: Repair it. Then confirm that the malfunction symptom is eliminated.
STEP 7. Check for harness damage between ignition coil connector and ECM connector
a. Check the harness wire between ignition coil connector B-16 (terminal No. 3) and ECM connector C-49 (terminal No. 10)
b. Check the harness wire between ignition coil connector B-21 (terminal No. 3) and ECM connector C-49 (terminal No. 23)
Q: Is the harness wire in good condition?
YES: Go to Step 8.
NO: Repair it. Then confirm that the malfunction symptom is eliminated.

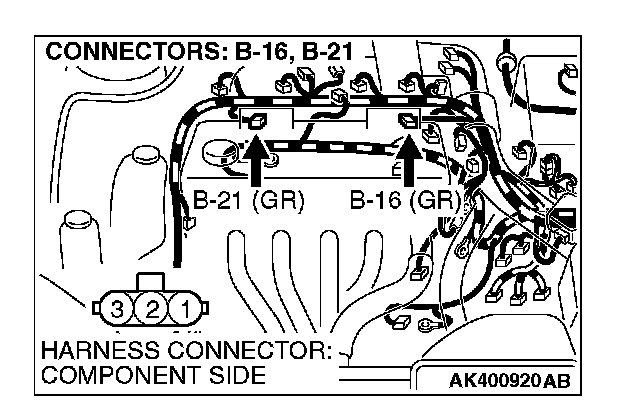

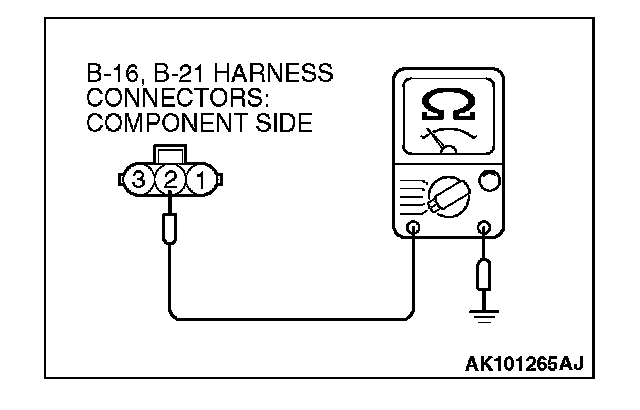

STEP 8. Check for continuity at ignition coil harness side connector B-16, B-21.
1. Disconnect the connectors B-16, B-21 and measure at the harness side.
2. Check for continuity between terminal No. 2 and ground.
- Should be less than 2 ohms.
Q: Is the continuity normal?
YES: Go to Step 9.
NO: Repair harness wire between ignition coil connector B-16, B-21 (terminal No. 2) and ground because of open circuit or harness damage. Then confirm that the malfunction symptom is eliminated.

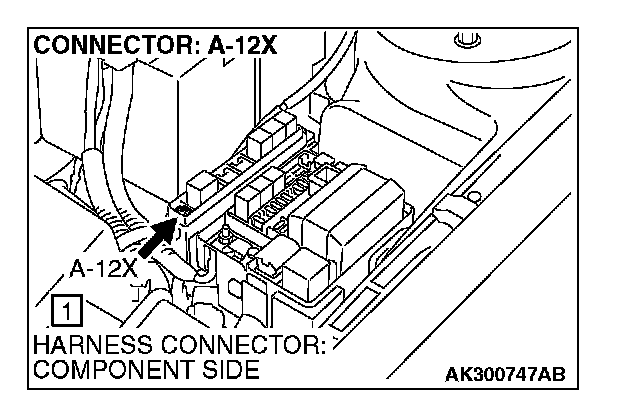

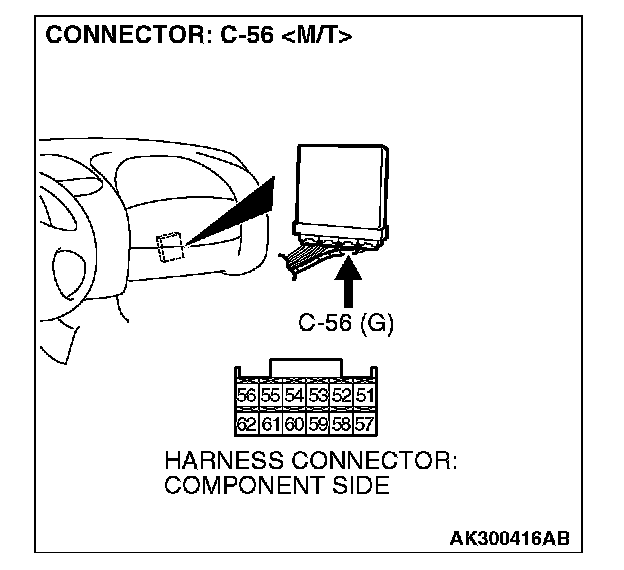

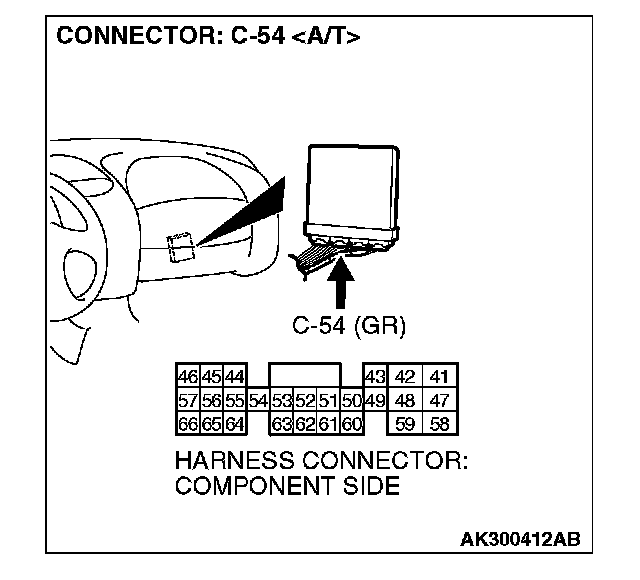

STEP 9. Check connector A-12X at engine speed detection and connector C-56 at ECM
Q: Is the connector in good condition?
YES: Go to Step 10.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.
STEP 10. Check for open circuit and short circuit to ground and harness damage between engine speed detection connector A-12X and ECM connector C-56 (terminal No. 58)
Q: Is the harness wire in good condition?
YES: Replace the ECM or PCM. Then confirm that the malfunction symptom is eliminated.
NO: Repair it. Then confirm that the malfunction symptom is eliminated.
