Generator and Ignition System

GENERATOR AND IGNITION SYSTEM

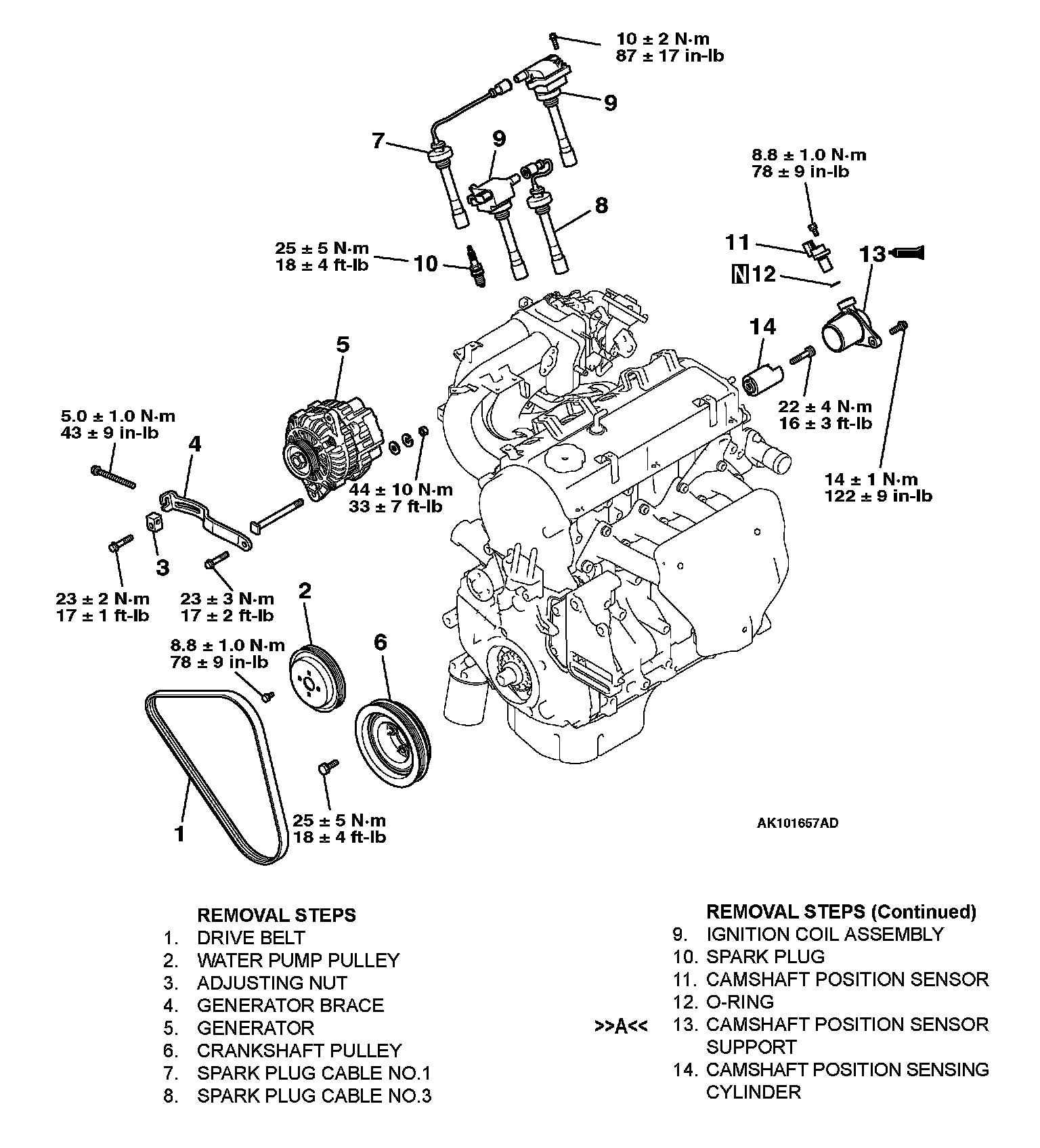

REMOVAL AND INSTALLATION
INSTALLATION SERVICE POINT
]]A[[ CAMSHAFT POSITION SENSOR SUPPORT INSTALLATION

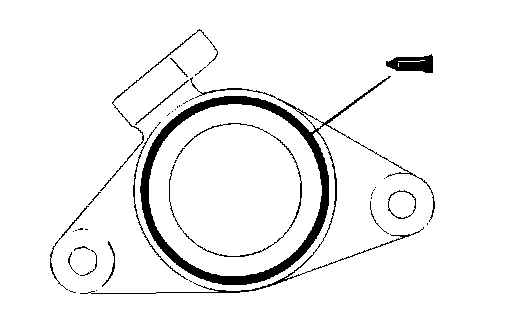

Apply a 3 mm (0.12 inch) bead of sealant (MITSUBISHI Genuine Part number MD970389) in the groove shown.
