Exhaust Manifold

EXHAUST MANIFOLD

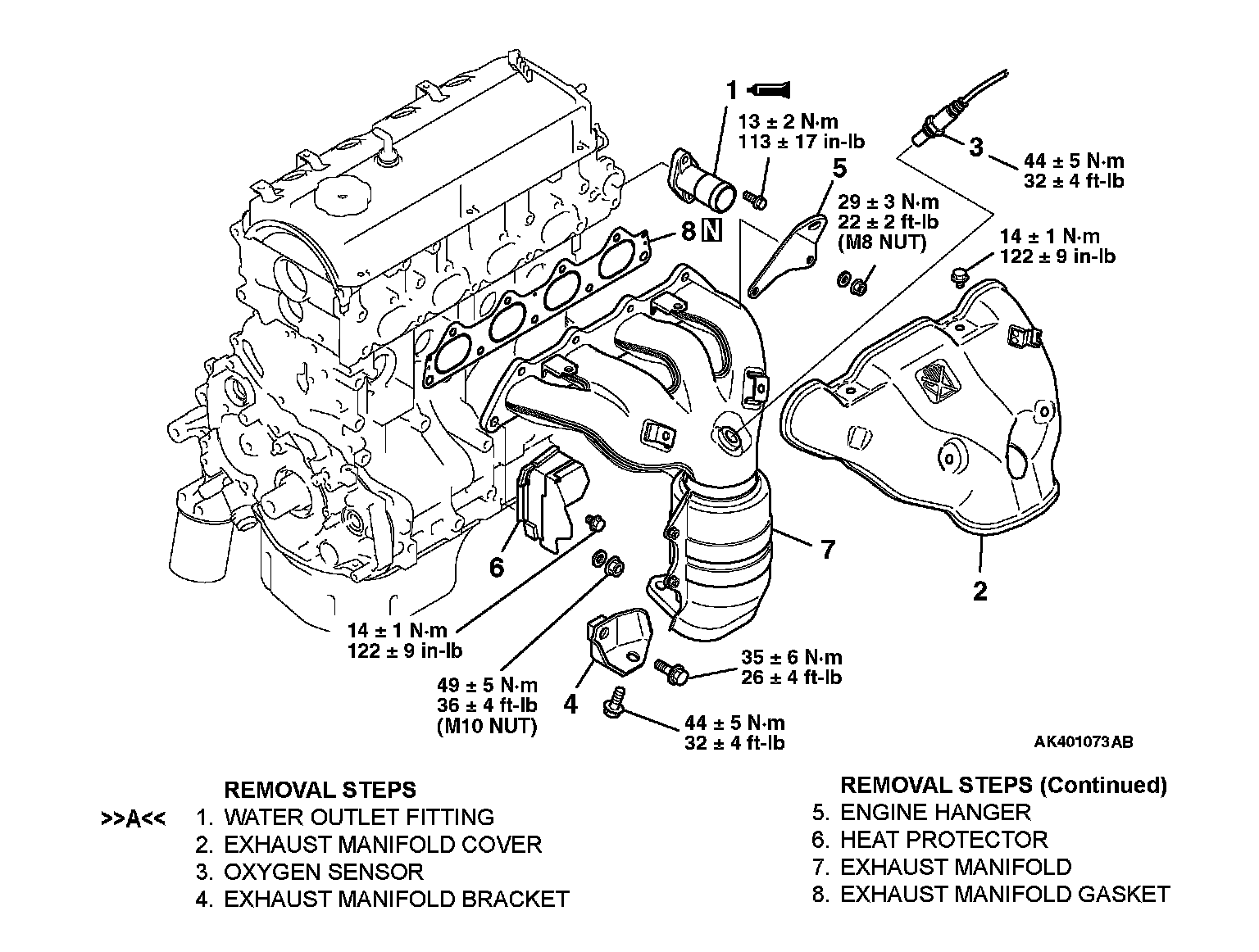

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT
]]A[[ WATER OUTLET FITTING INSTALLATION

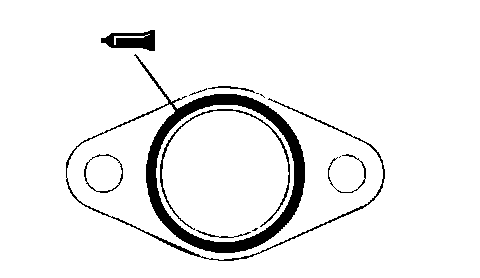

1. Apply a 3 mm (0.1 inch) diameter bead of sealant (MITSUBISHI Genuine Part number MD970389) to the groove as shown in the illustration.
2. Install the housing quickly (within 15 minutes) while the sealant is wet and tighten the bolts to the specified torque.
Tightening torque: 13 ± 2 Nm (113 ± 17 inch lbs.)

NOTE: After installation, keep the sealed area away from the coolant for approximately one hour
