Vacuum Actuator

Vacuum Actuator

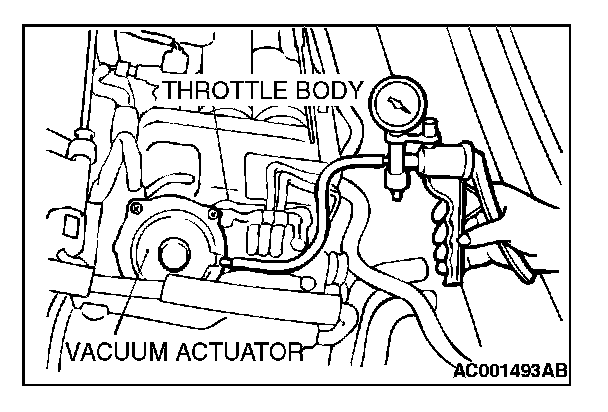

1. Disconnect the vacuum hose from the vacuum actuator and connect a hand vacuum pump to the actuator.
2. Check that the throttle lever operates when applying vacuum and the vacuum is maintained.
