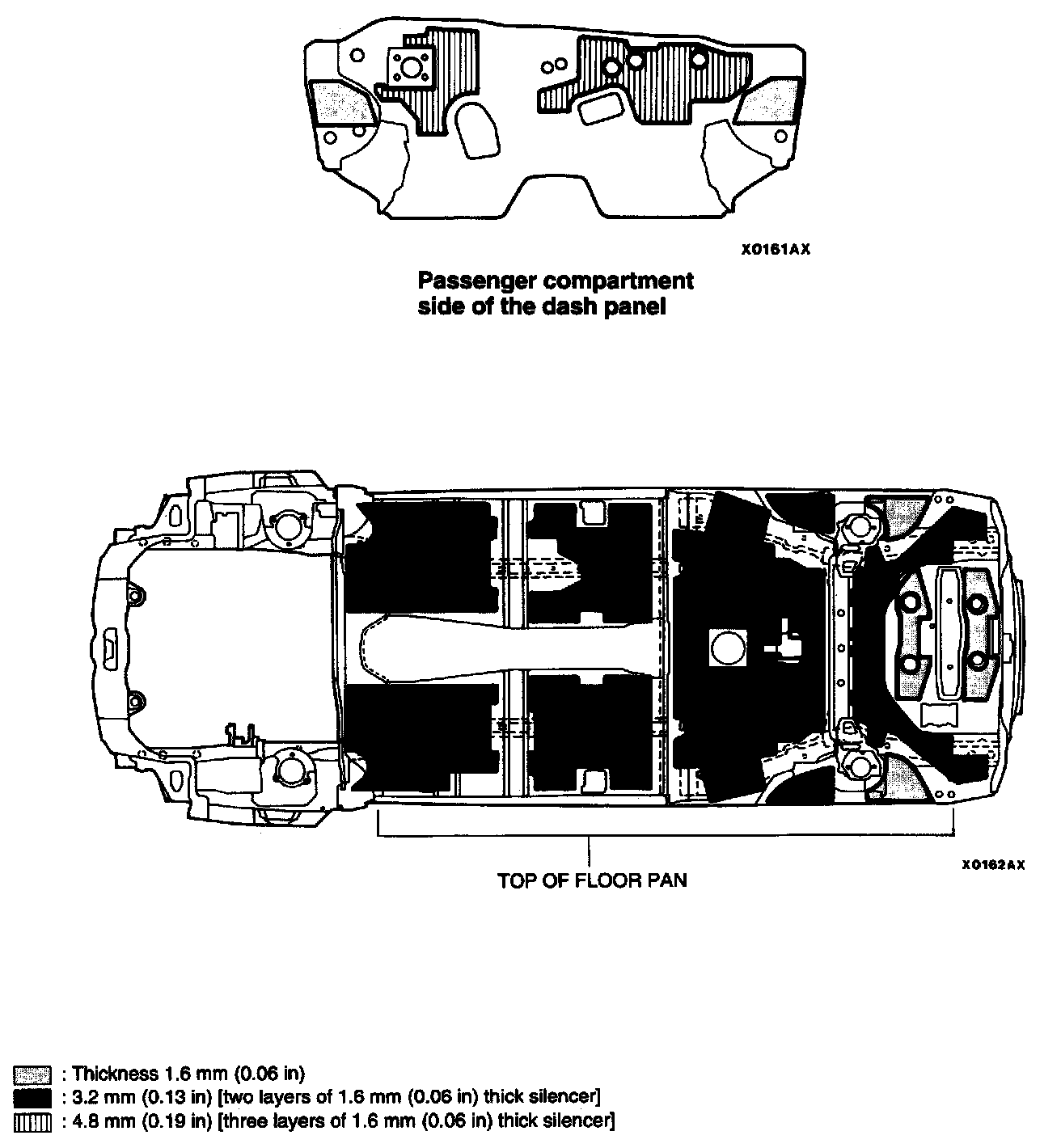

SILENCER APPLICATION LOCATIONS
Silencers (melting sheets) have been attached to the dash panel and the top of the floor in order to reduce vibration and to insulate against heat from exhaust gases.
