Sunroof / Moonroof Gear Assembly: Locations

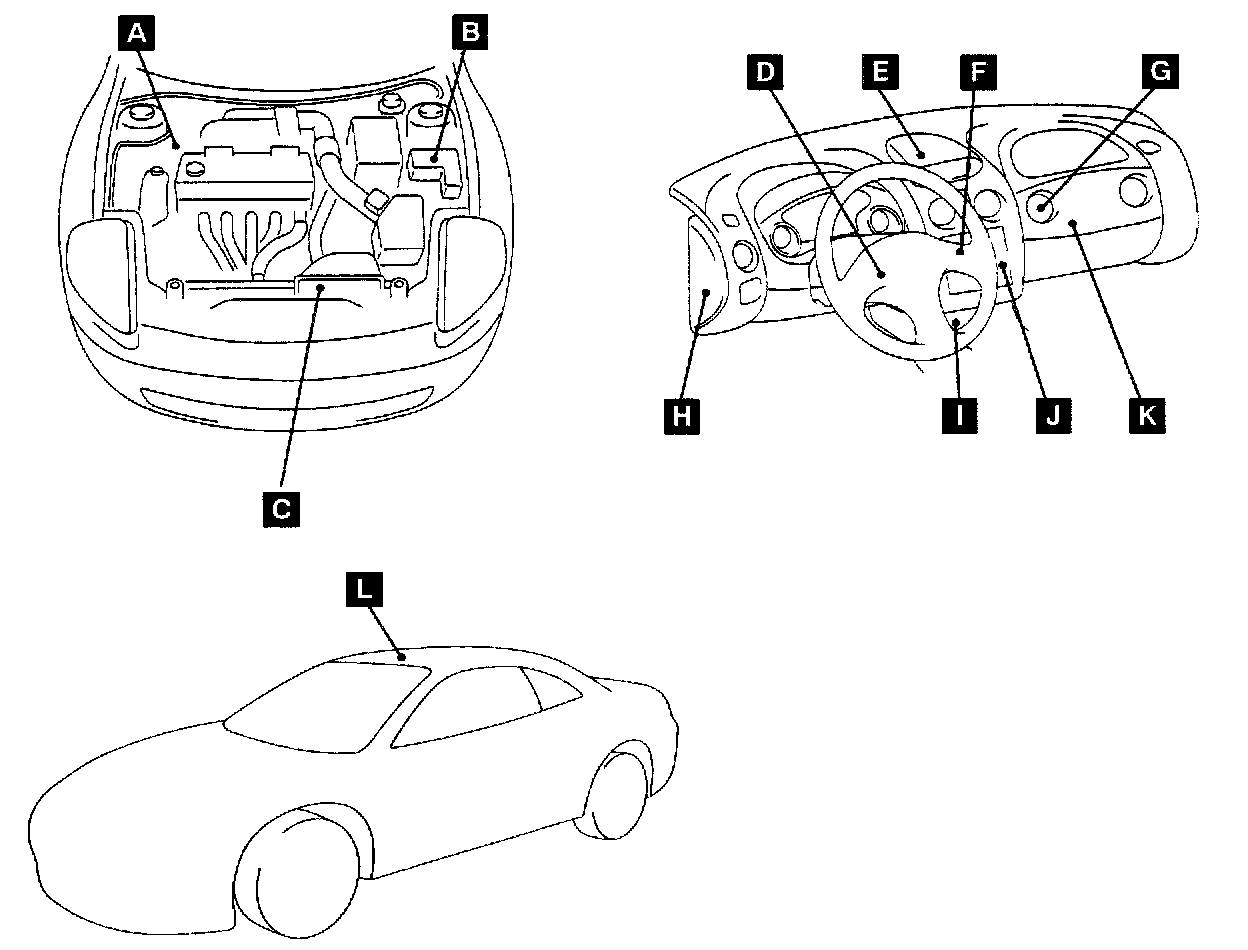

Control Unit Locations Overall View:

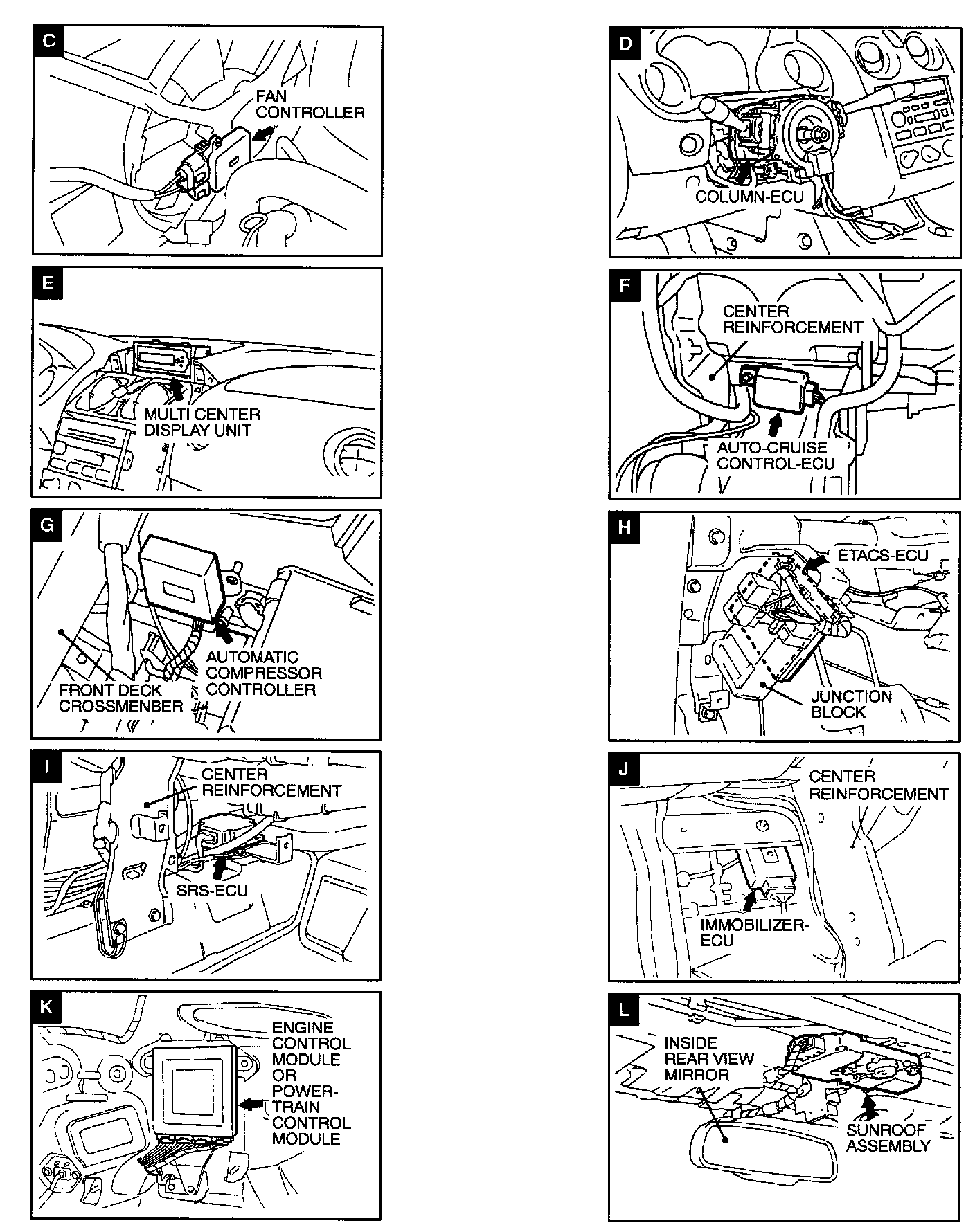

Control Unit Location View C-L:





Name Symbol
Sunroof Assembly L
(With built-in sunroof-ECU)
