Home >> Mitsubishi >> 2005 >> Eclipse L4-2.4L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Service and Repair >> Removal and Installation

Removal and Installation

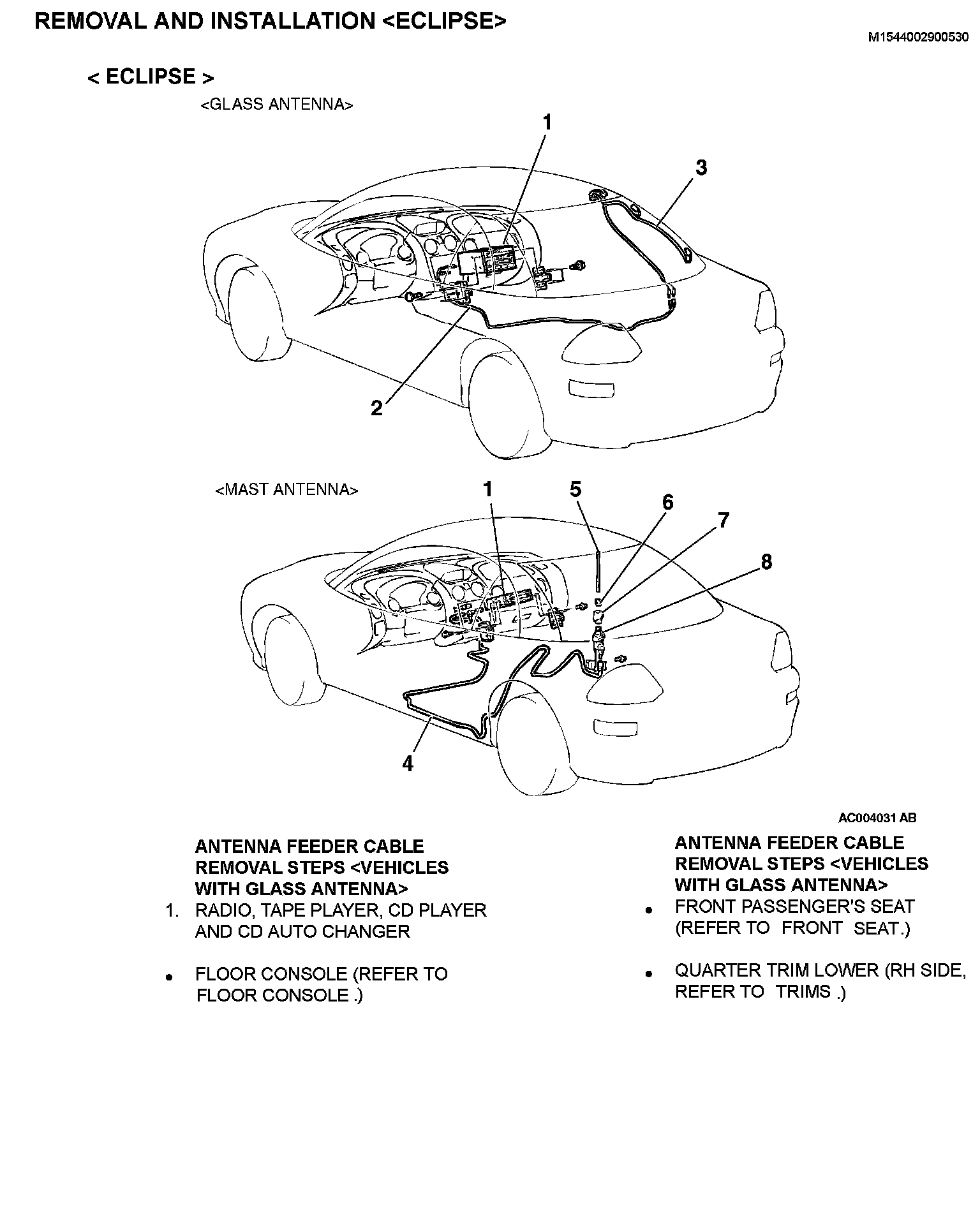

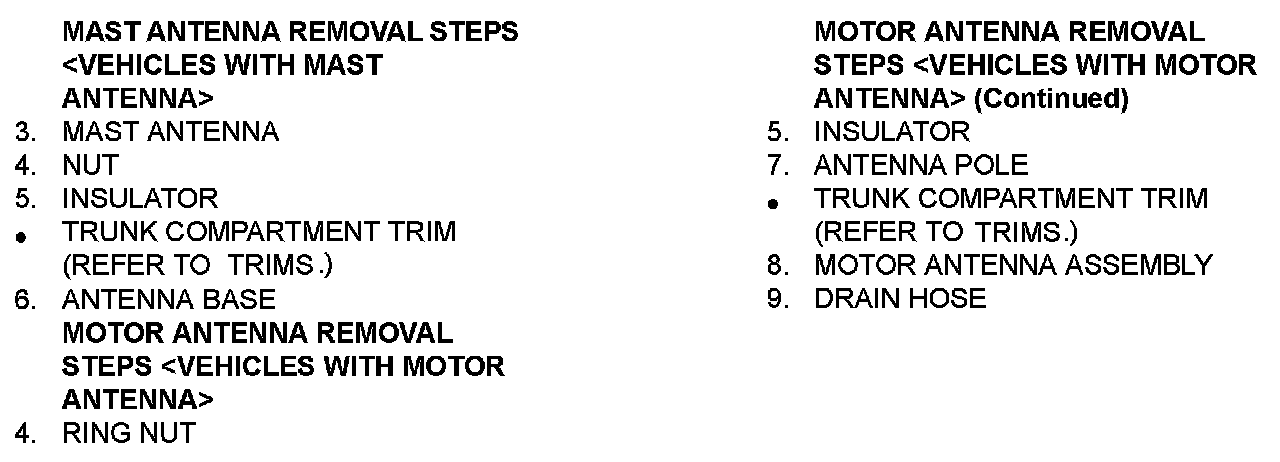

Removal And Installation Part 1:



Removal And Installation Part 2:

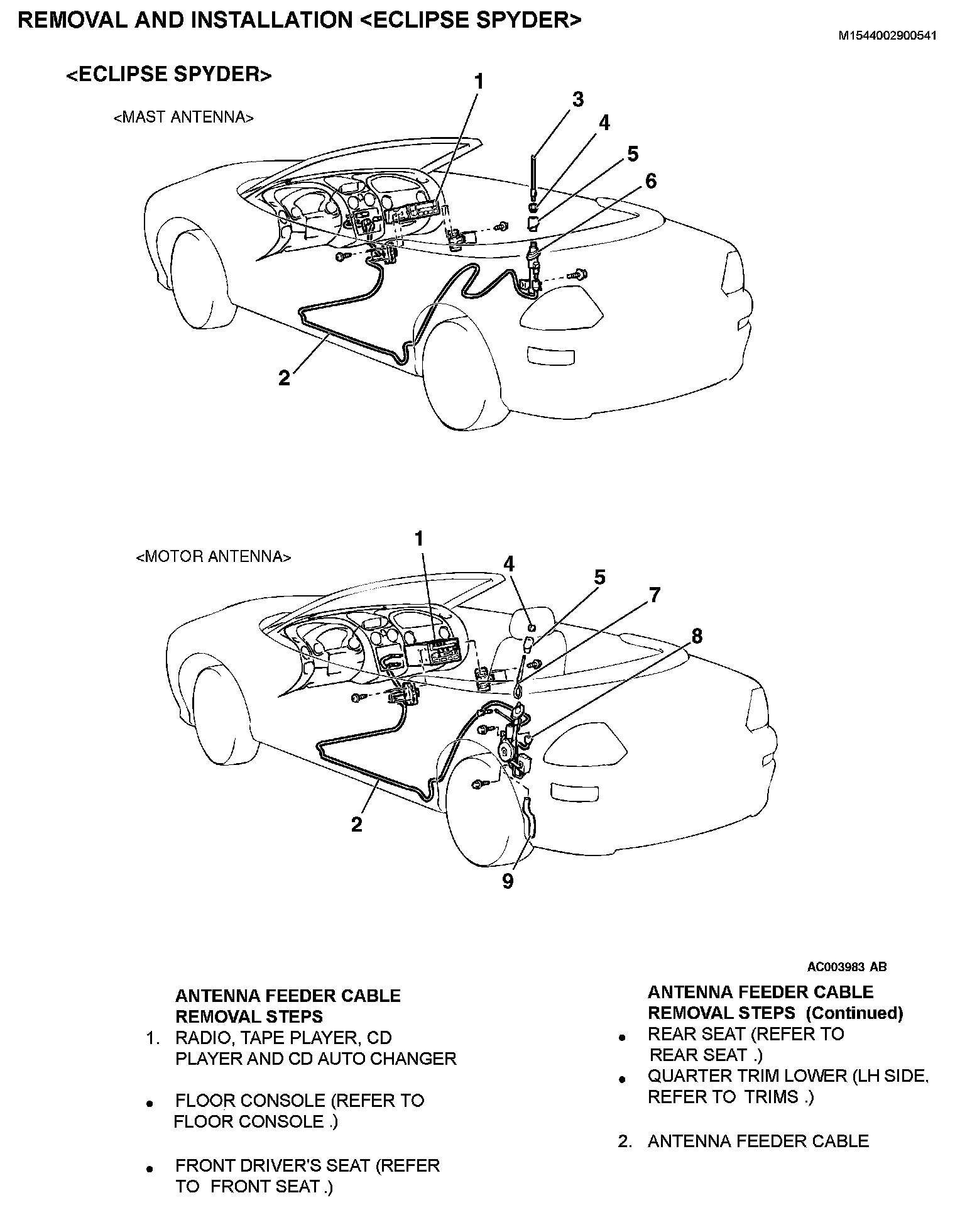

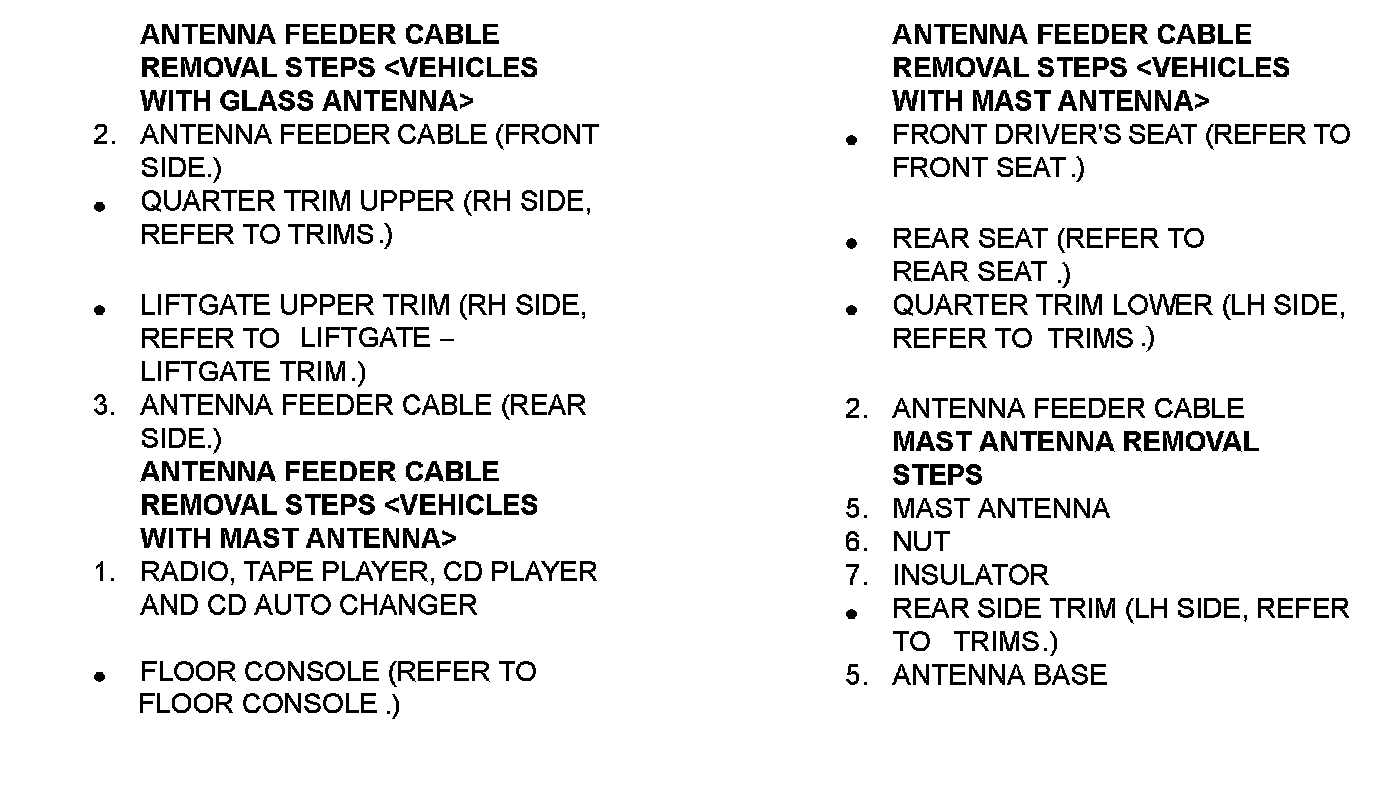

Removal And Installation Part 1:



Removal And Installation Part 2:
