Rear Wiper and Washer

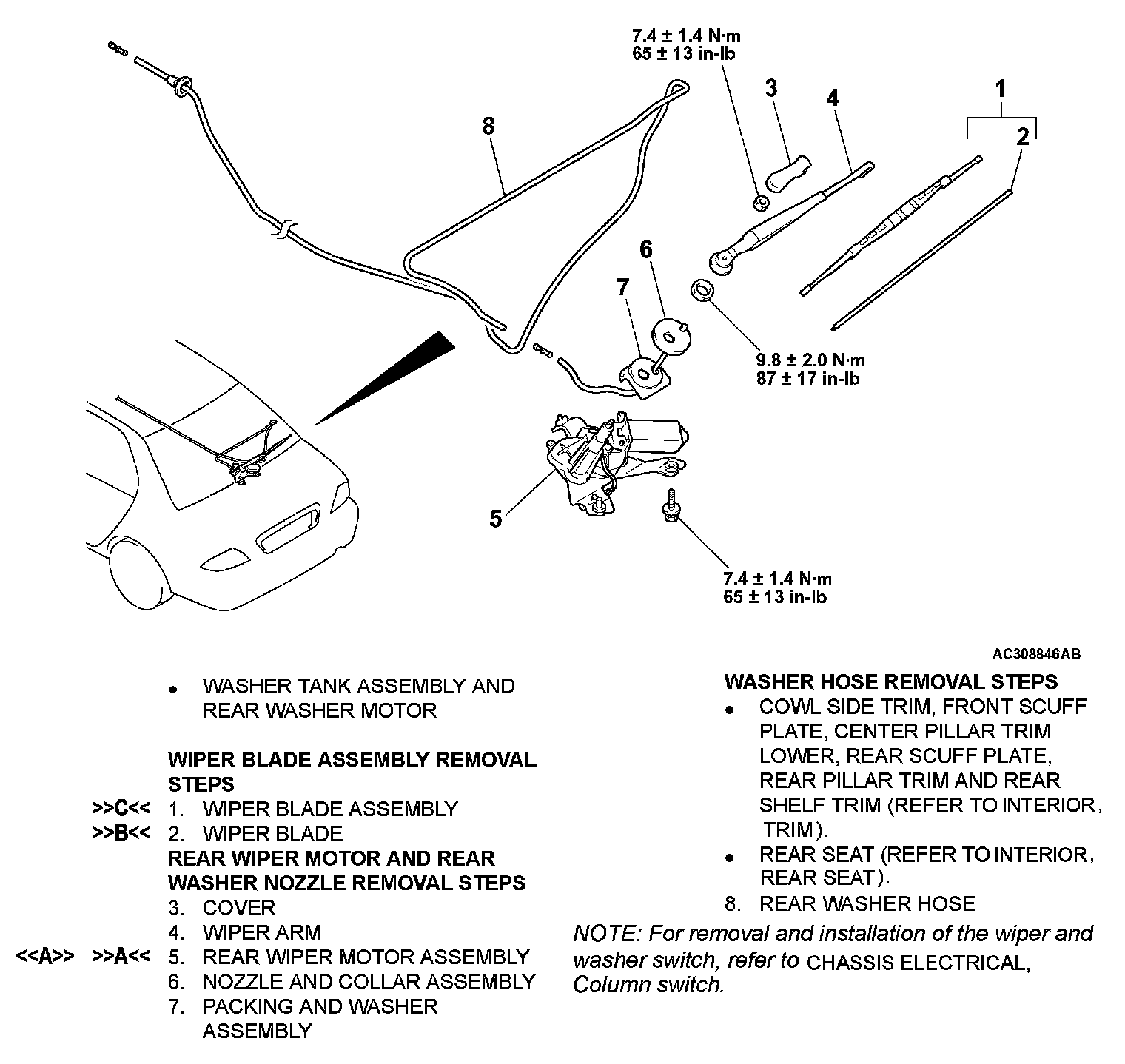

REAR WIPER AND WASHERREMOVAL AND INSTALLATION
Removal Steps 1-8:
REMOVAL SERVICE POINT
[[A]] REAR WIPER MOTOR ASSEMBLY REMOVAL

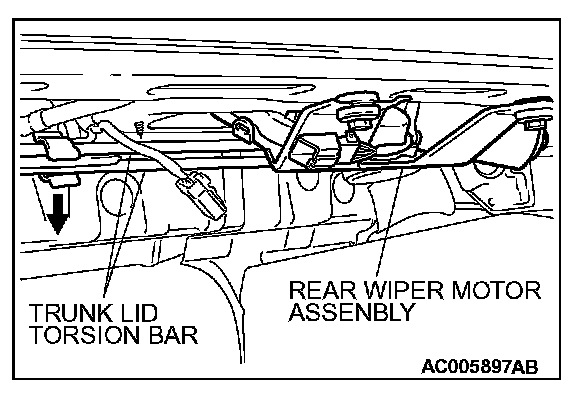

Close the trunk lid slightly and lower the trunk lid torsion bar slightly when removing the rear wiper motor assembly. If you fail to do this, the rear wiper motor assembly will interfere with the trunk lid torsion bar.
INSTALLATION SERVICE POINTS
]]A[[ REAR WIPER MOTOR ASSEMBLY INSTALLATION

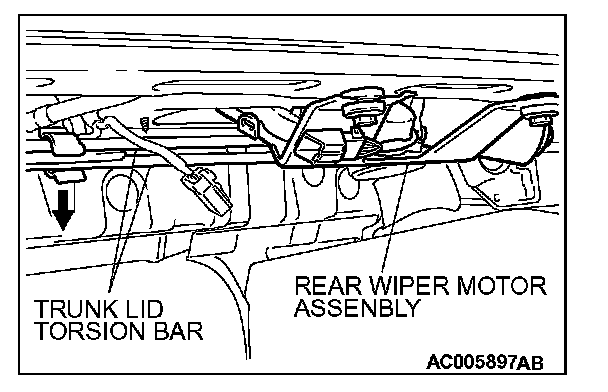

Close the trunk lid slightly and lower the trunk lid torsion bar slightly when installing the rear wiper motor assembly. If you fail to do this, the rear wiper motor assembly will interfere with the trunk lid torsion bar.
]]B[[ WIPER BLADE INSTALLATION

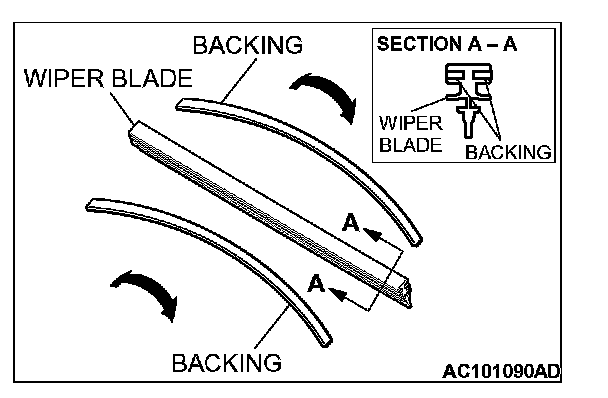

When installing the wiper blade, check that the backing inside the wiper blade is warped toward the wiper arm.
]]C[[ WIPER BLADE ASSEMBLY INSTALLATION

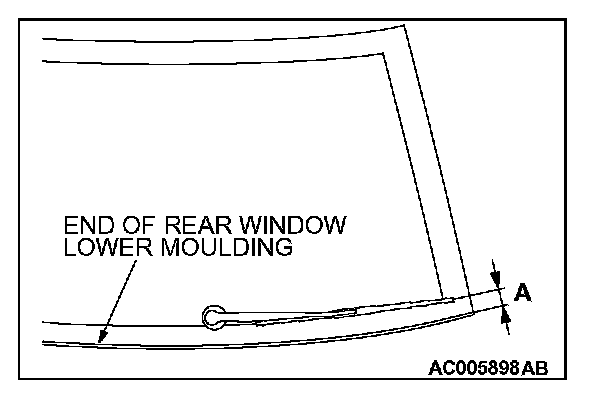

Before installing the rear wiper arm and blade assembly, operate the rear wiper motor so that the motor stops at the predetermined park position. Install the rear wipe arm and blade assembly and adjust the rear wiper blade position so that the blade end stops at the predetermined position (standard position).
Standard value: (A) 38 ± 5 mm (1.5 ± 0.20 inch)
