M/T - Revised Synchronizer Installation Procedures
No.: TSB-04-22-002DATE: April, 2004
MODEL: See Below
SUBJECT:
REVISED SYNCHRONIZER IDENTIFICATION &
SERVICE PROCEDURES
PURPOSE
This bulletin contains revised service information related to manual transmission synchronizers.
BACKGROUND INFORMATION
The design of the manual transmission synchronizers for 1st - 2nd, 3rd - 4th, and 5th - reverse has been changed. Revised component identification and installation procedures related to these new synchronizers are included.
AFFECTED VEHICLES
This bulletin affects vehicles listed below equipped with the 5-speed manual transaxle built before February 1, 2004 (prior to transaxle serial number SG9735).
1997-2002 Mirage
2000-04 Eclipse 2.4L 4-cylinder
2001-04 Eclipse Spyder 2.4L 4-cylinder
2002-04 Lancer (except Evolution)
PROCEDURE

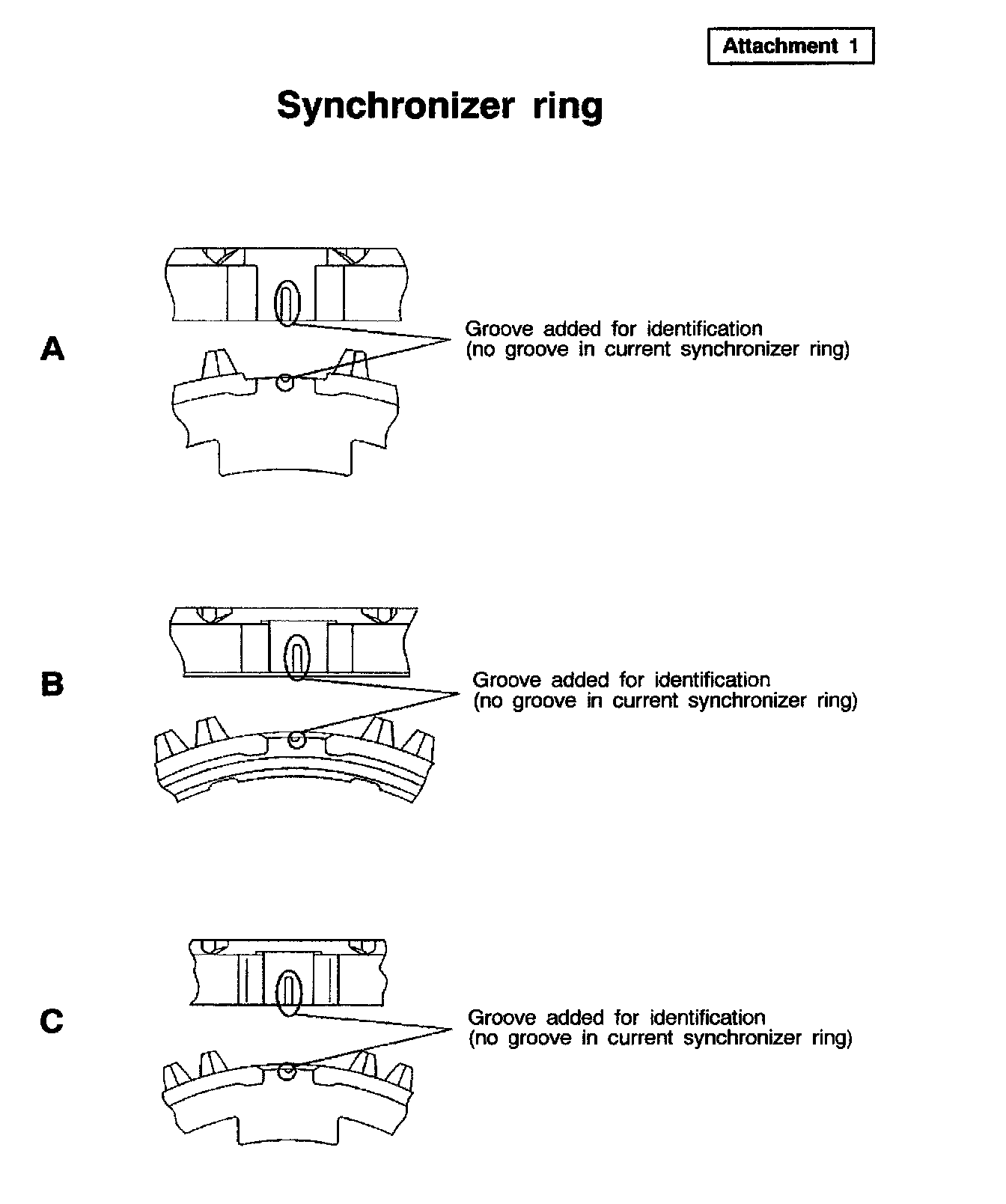

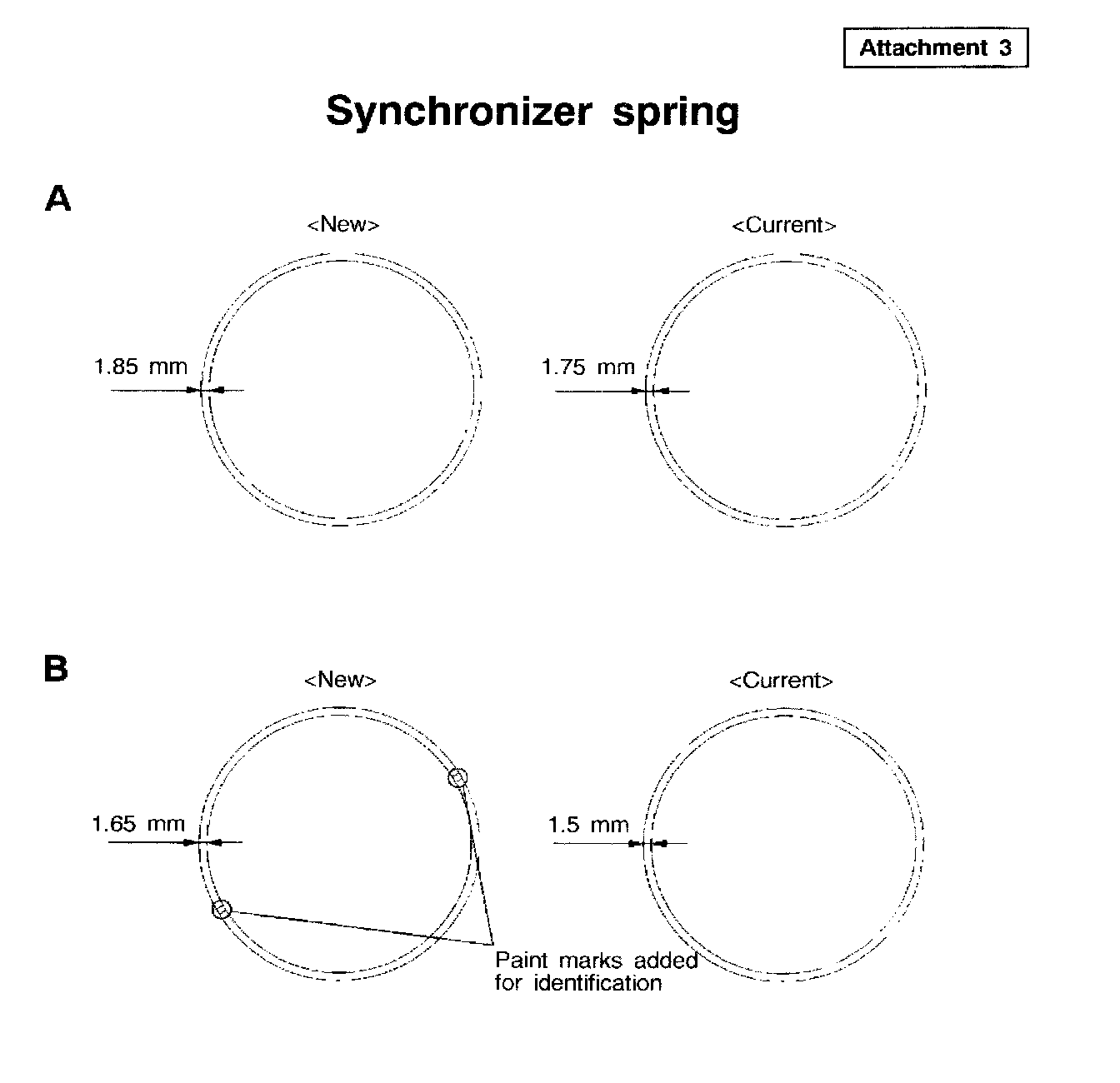

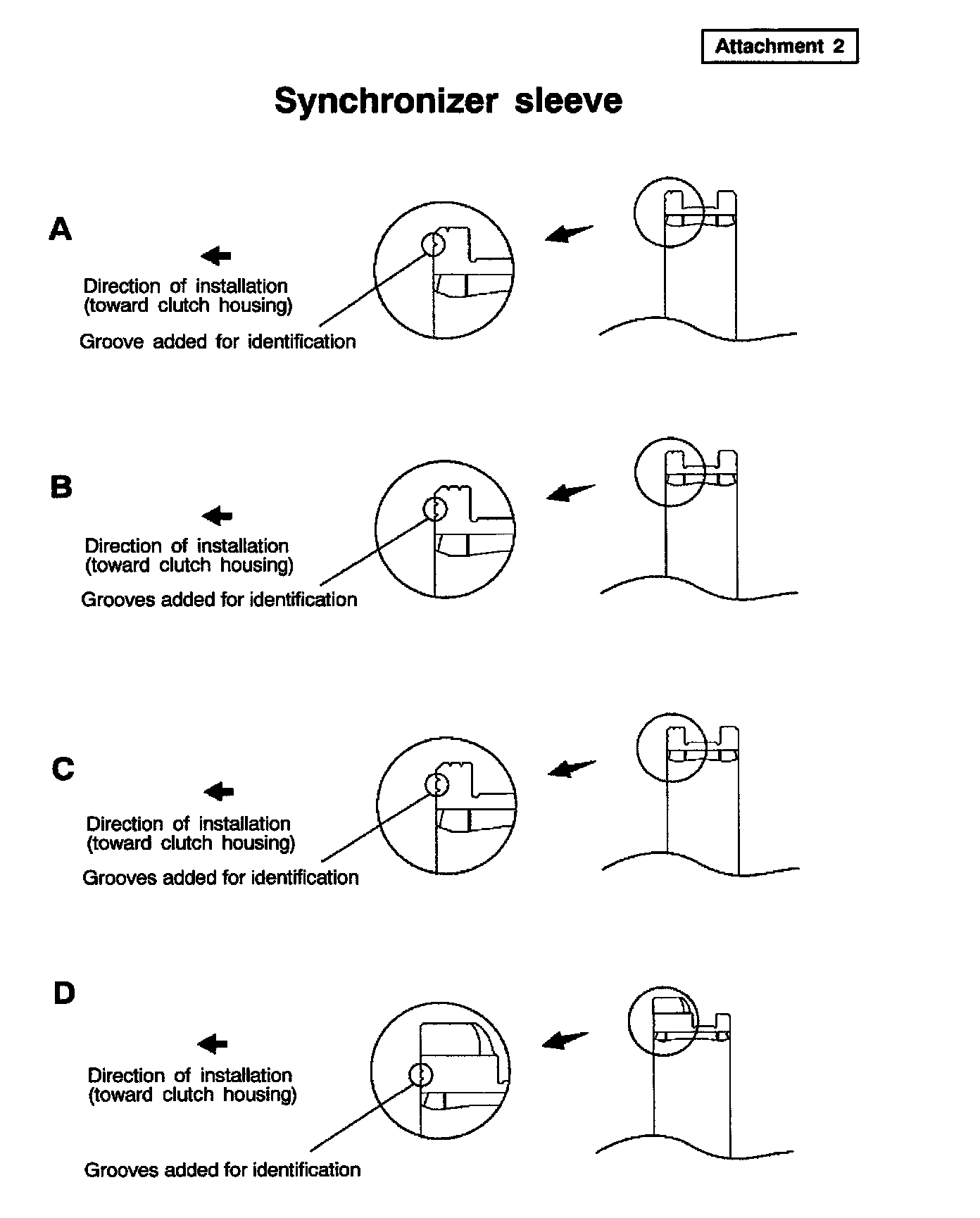

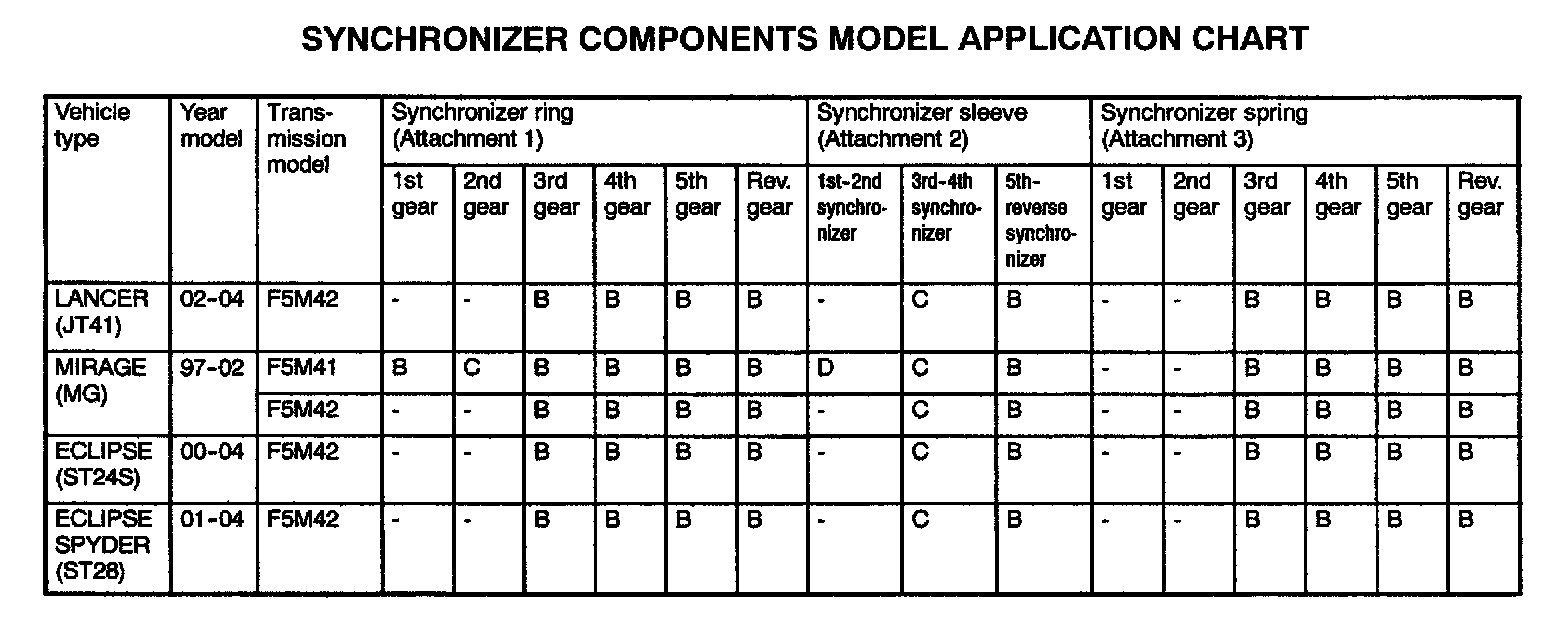

Refer to Attachments 1 through 3 and the synchronizer components application chart.
PARTS INFORMATION
Refer to CAPS for complete service parts information
WARRANTY INFORMATION
This bulletin is for information only, not warranty authorization. Normal warranty procedures apply.
