Transmission Fluid Temperature Sensor Check
TRANSMISSION FLUID TEMPERATURE SENSOR CHECK1. Remove the transmission fluid temperature sensor.

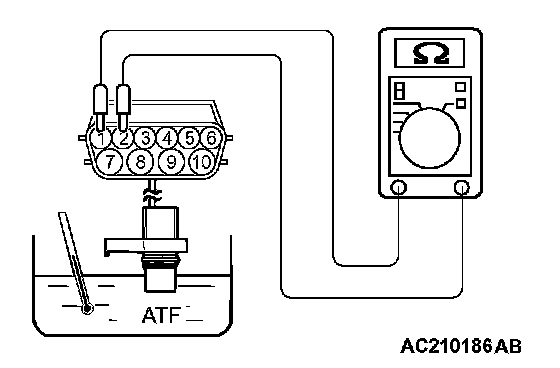

2. Measure the resistance between terminals 1 and 2 of the transmission fluid temperature sensor connector.

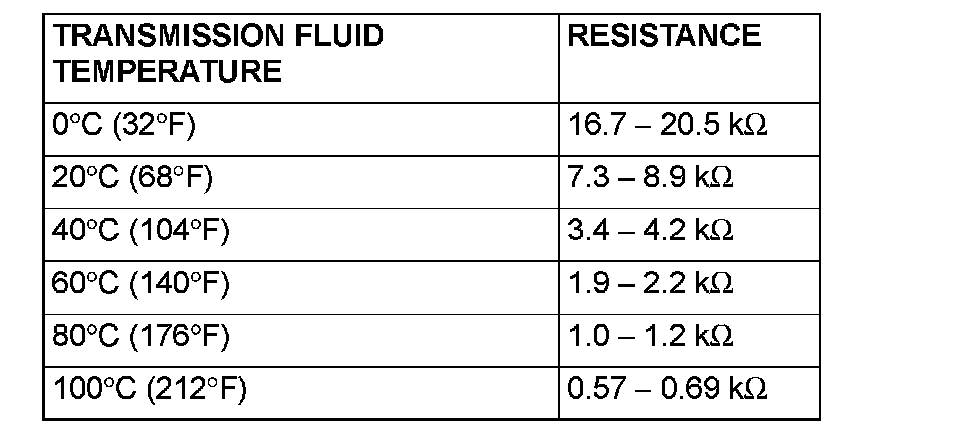

Standard value
3. If the transmission fluid temperature sensor resistance is outside the specified range, replace the transmission fluid temperature sensor.
