Fusible Link: Application and ID

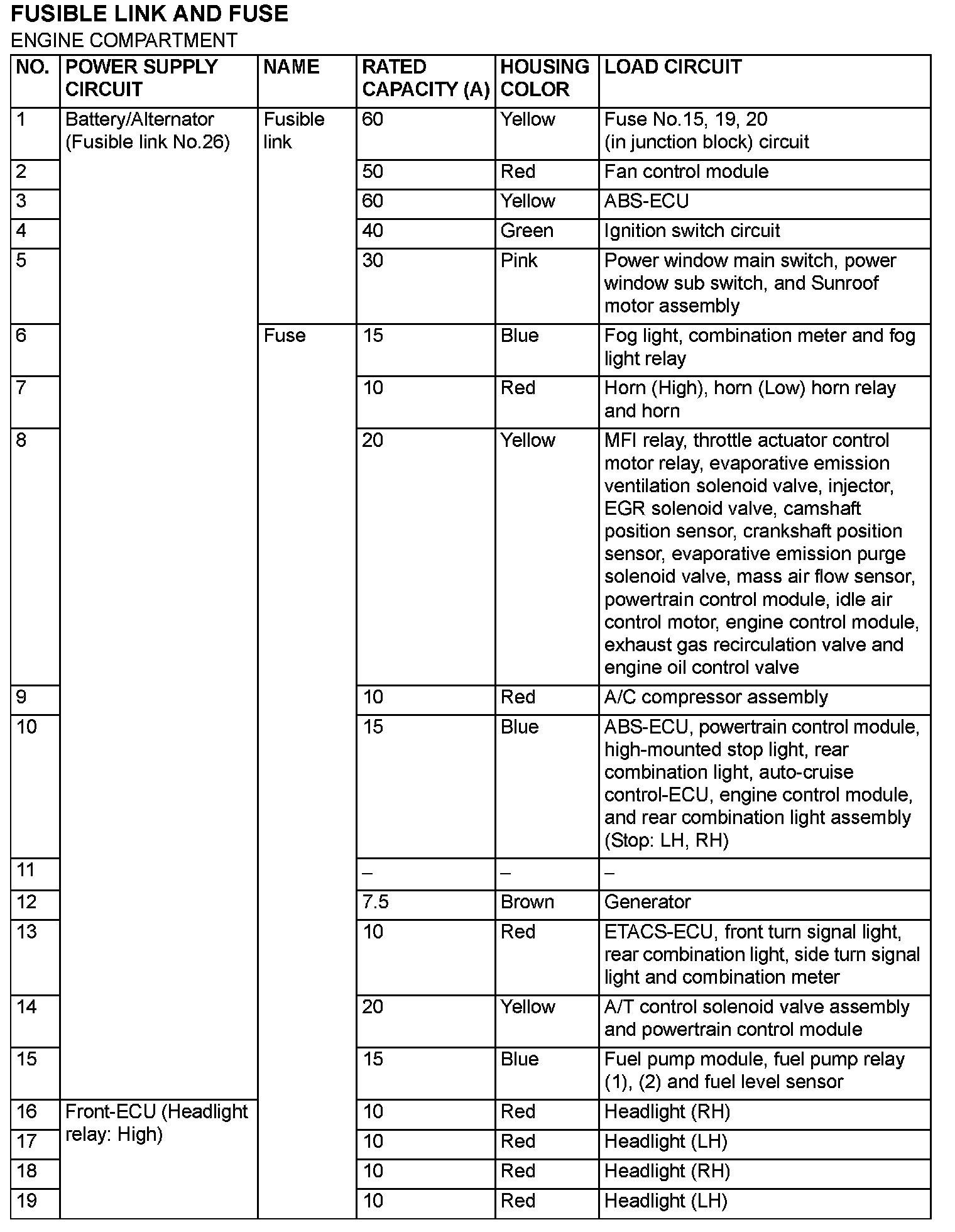

Application Table Part 1:

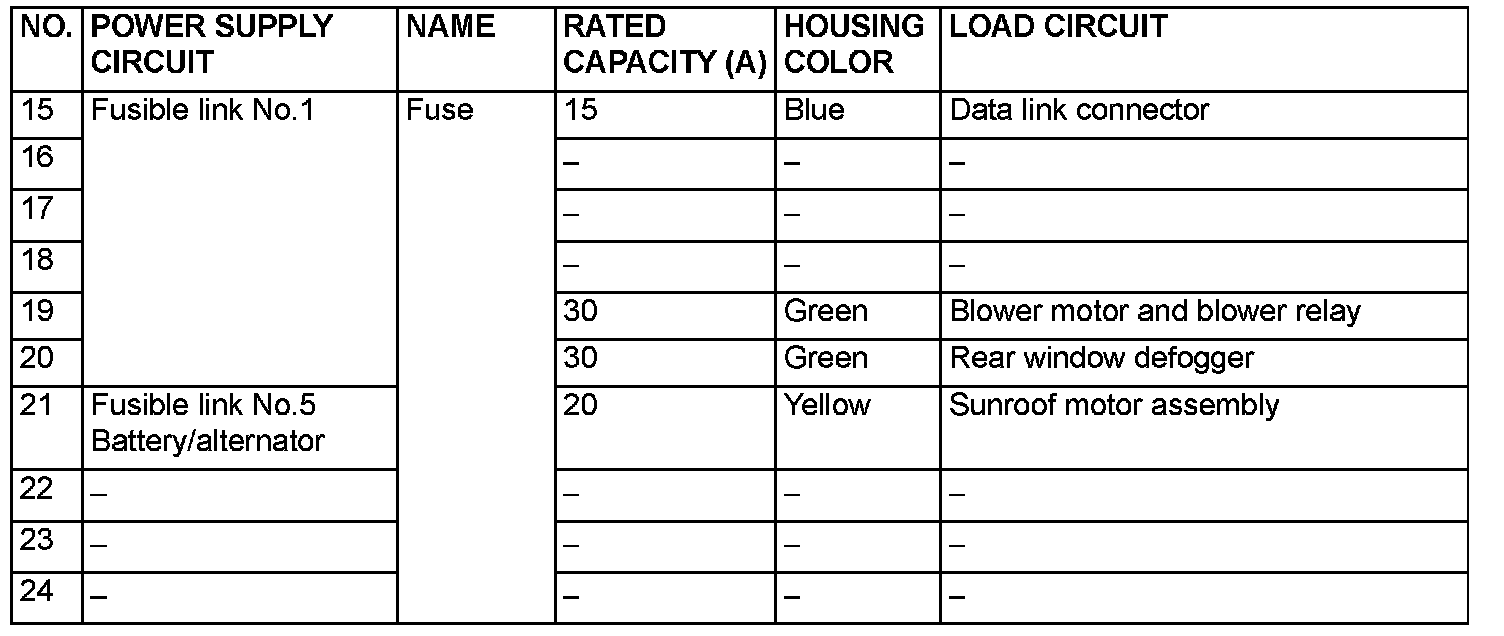

Application Table Part 2:

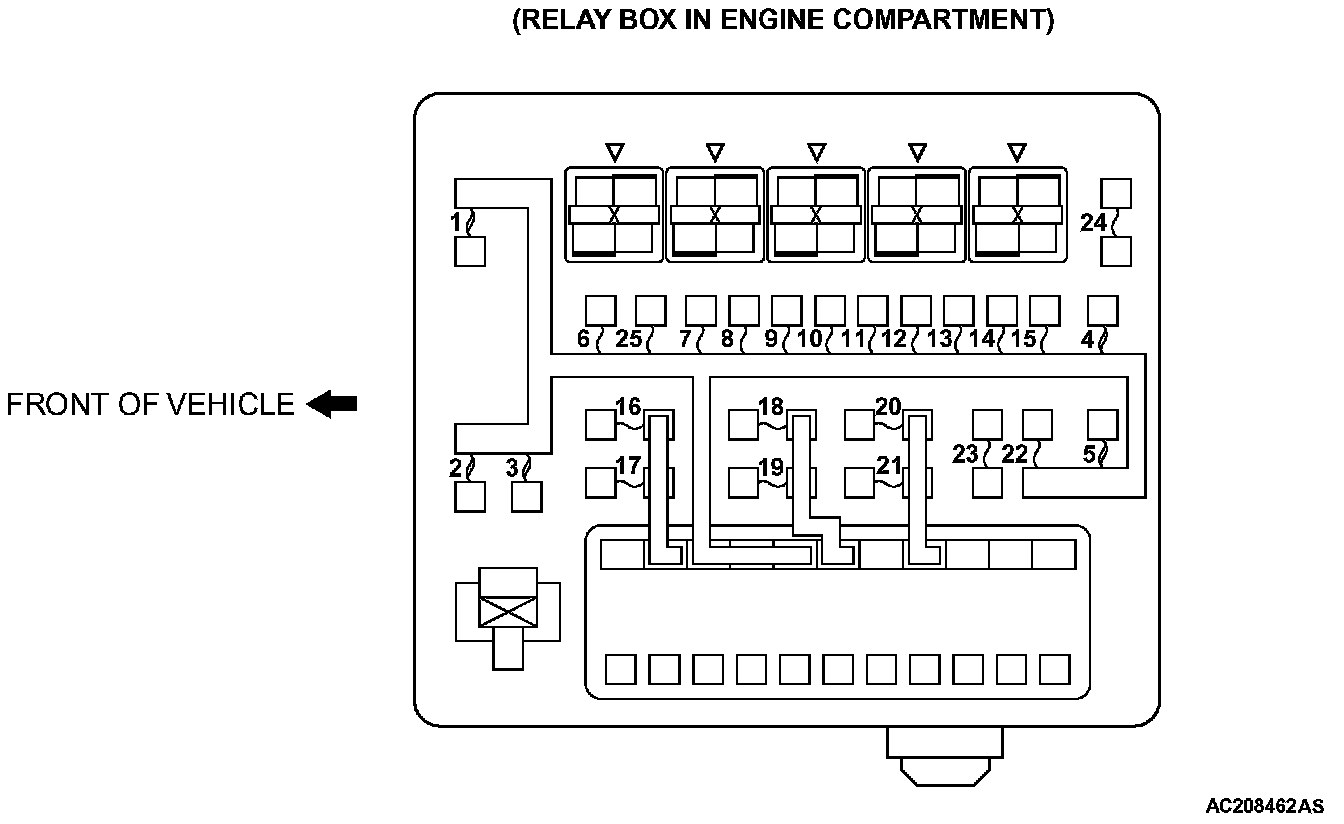

Location View:
Location View:

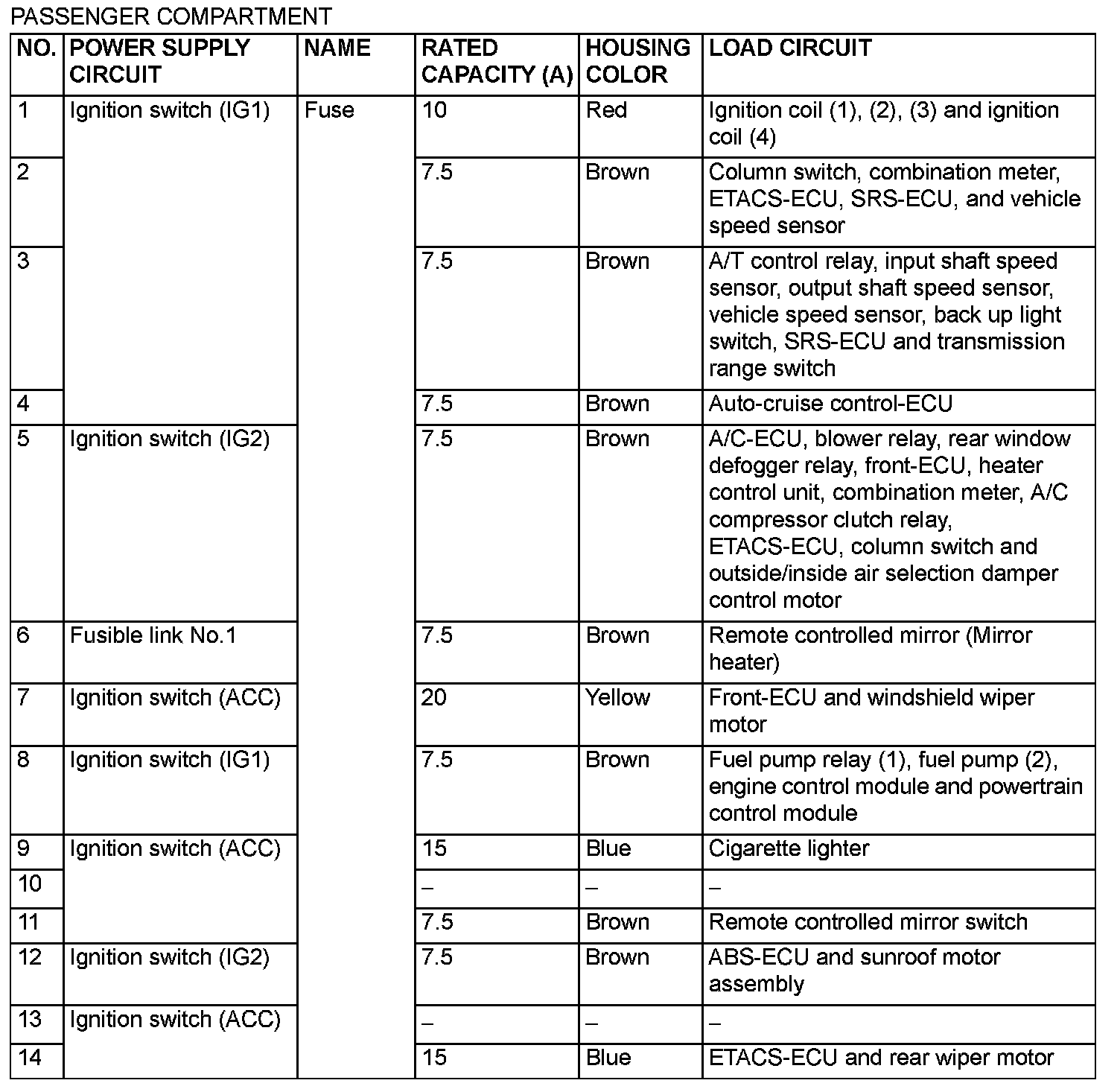

Application Table Part 1:

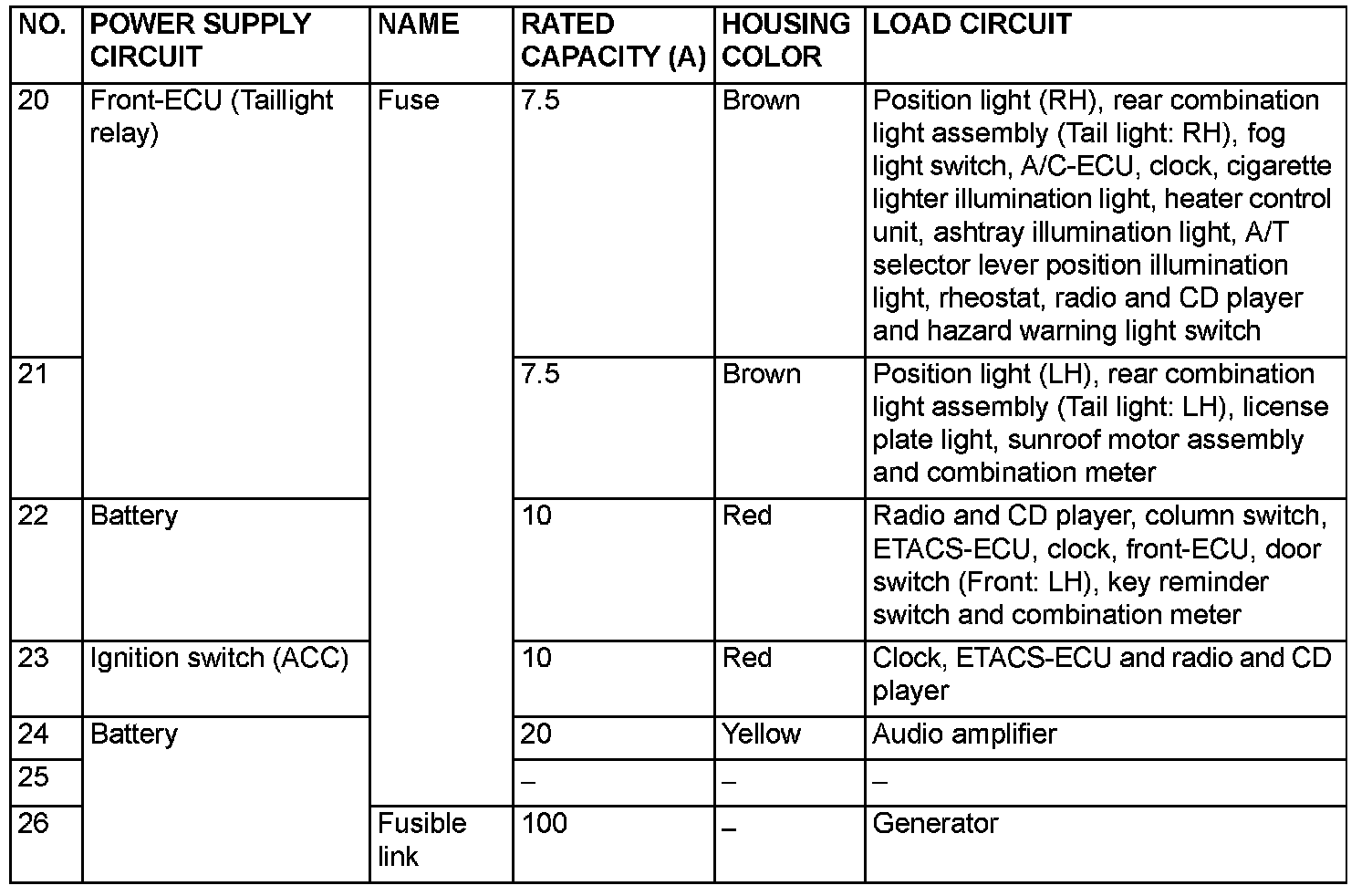

Application Table Part 2:
Location View:
