Refrigerant Temperature Sensor: Testing and Inspection
INSPECTIONREFRIGERANT TEMPERATURE SWITCH

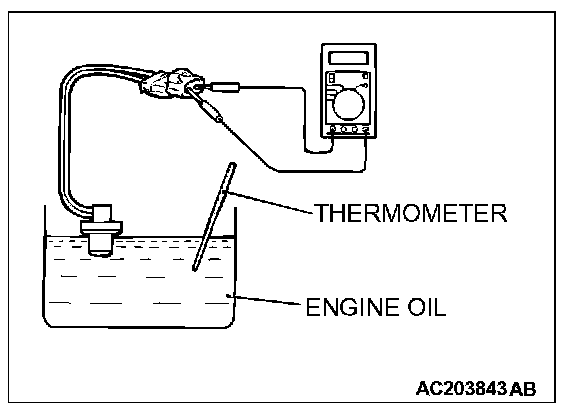

1. Dip the metal part of the refrigerant temperature switch into engine oil and increase the oil temperature using a gas burner or similar.
CAUTION: Do not heat more than necessary.
2. When the oil temperature reaches the standard value, check the continuity between the terminals.

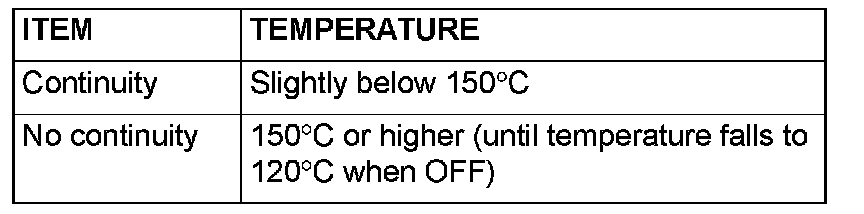

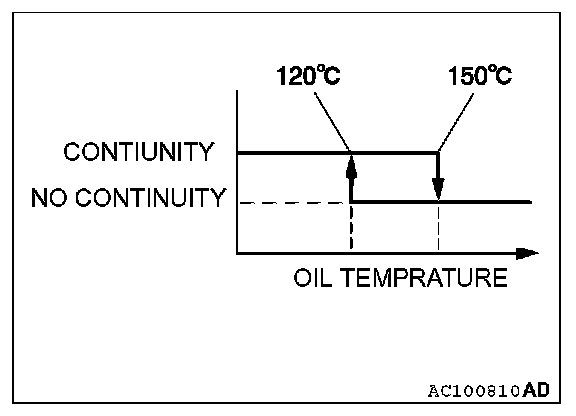

Standard value:
