Seat Belt Systems: Testing and Inspection

INSPECTION

OUTER SEAT BELT CHECK

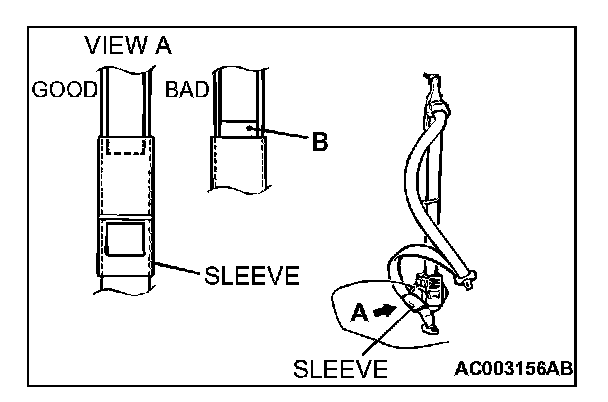

Check that the B section (red) of the label attached to the outer seat belt is not exposed from the outer seat belt sleeve. If it is exposed, replace the outer seat belt.

SEAT BELT BUCKLE SWITCH CONTINUITY CHECK

Seat Belt Buckle Switch Continuity Check:
