Road Test

ROAD TEST

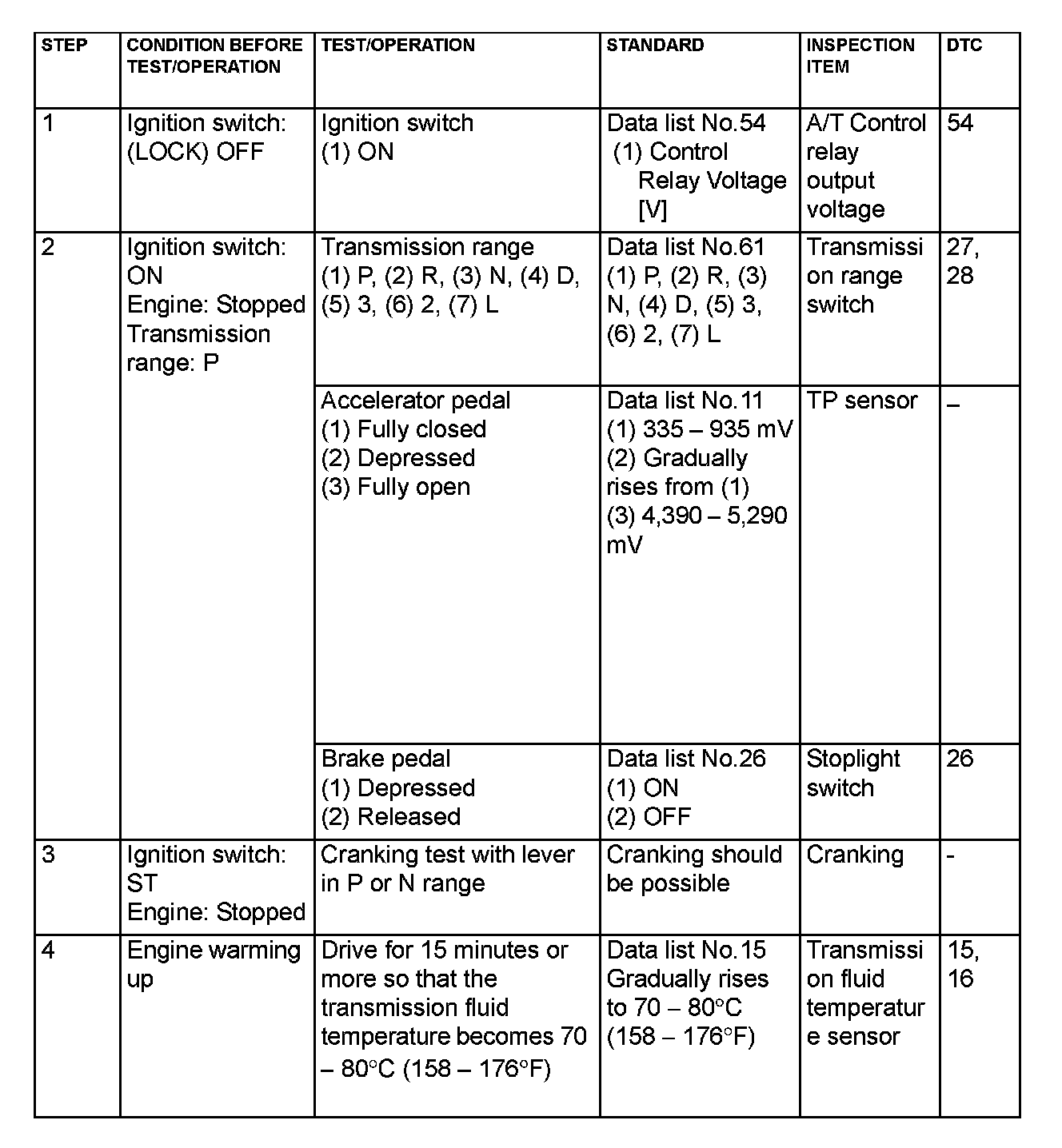

Steps 1-4:

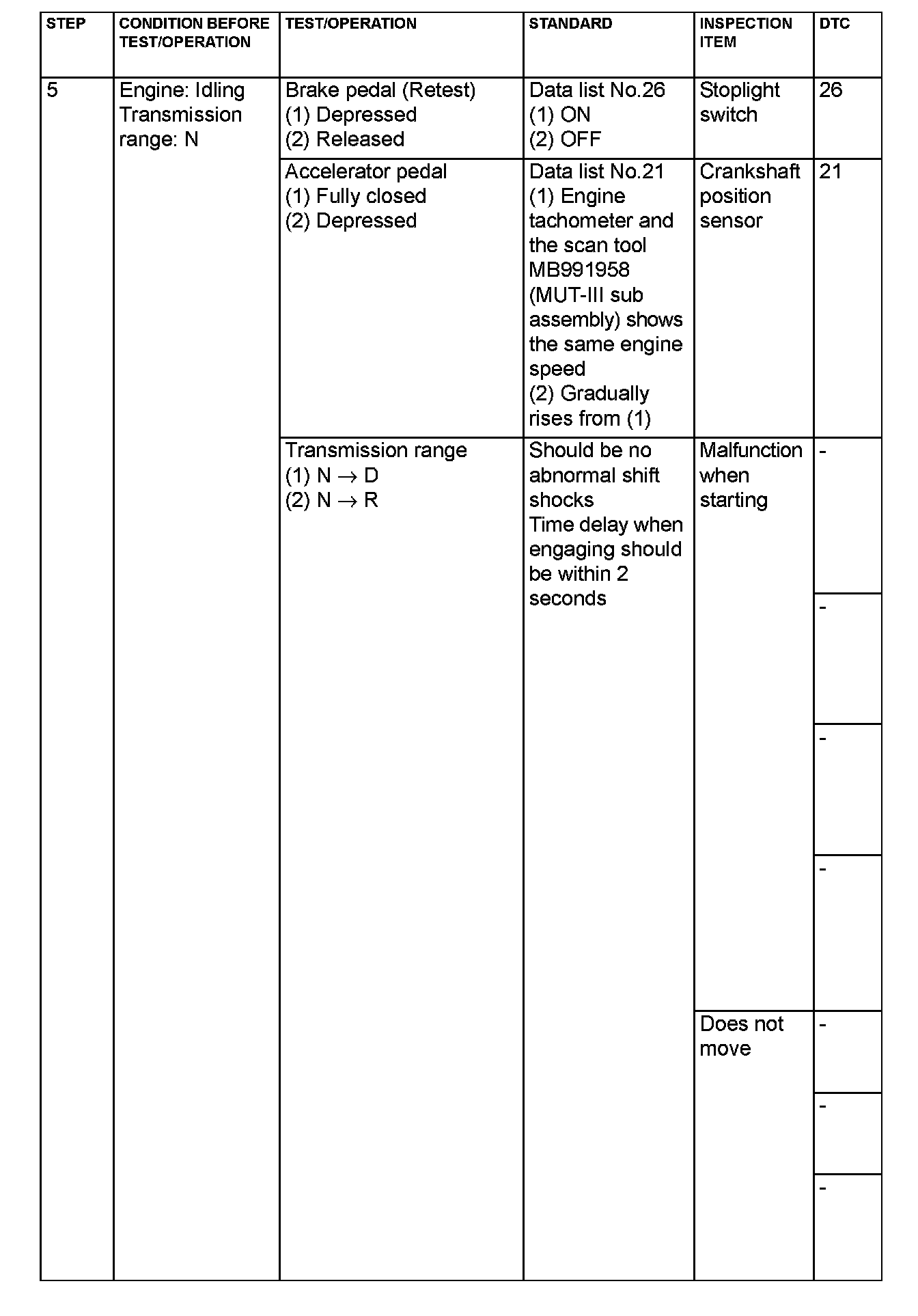

Step 5:

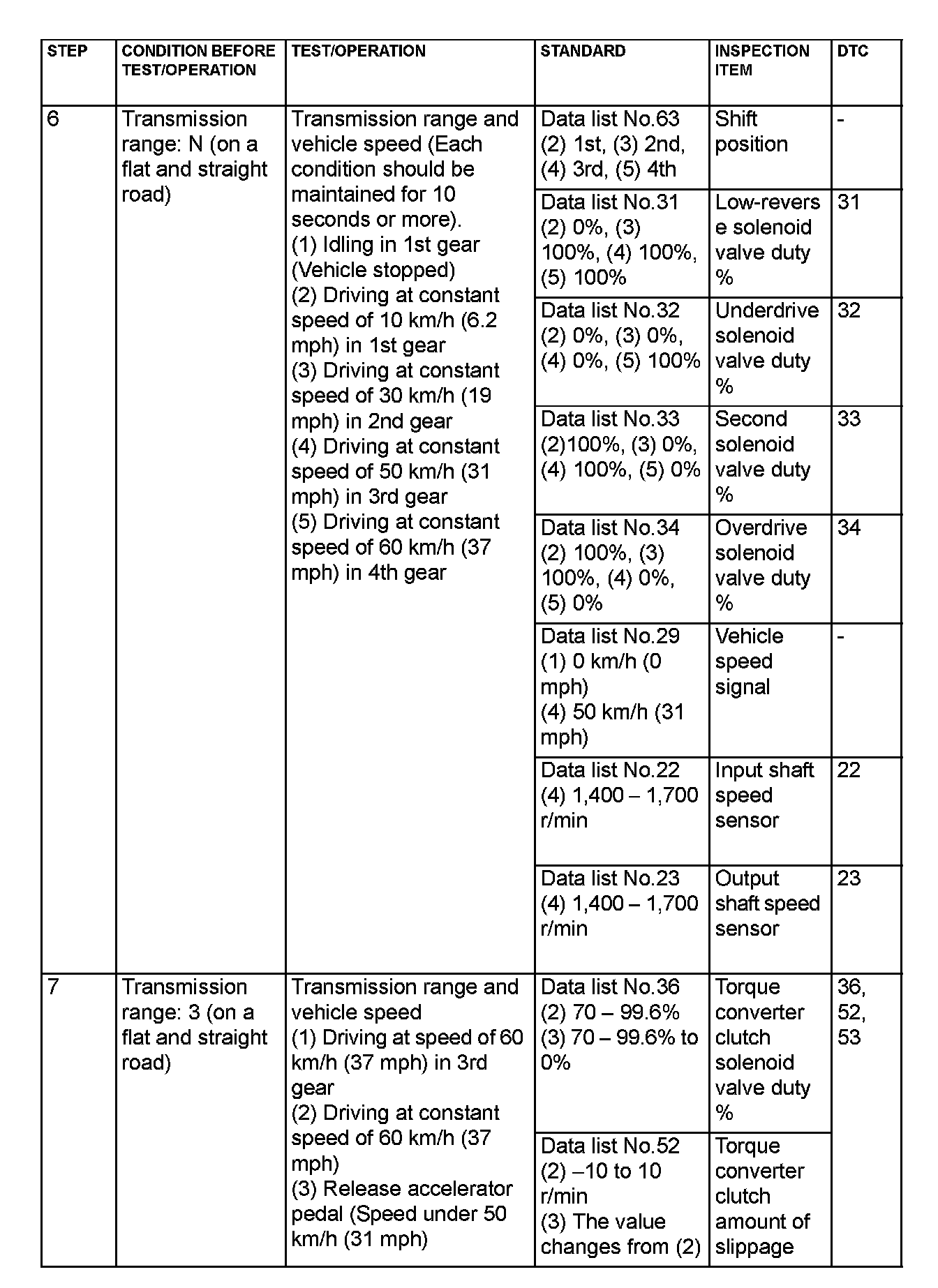

Steps 6 & 7:

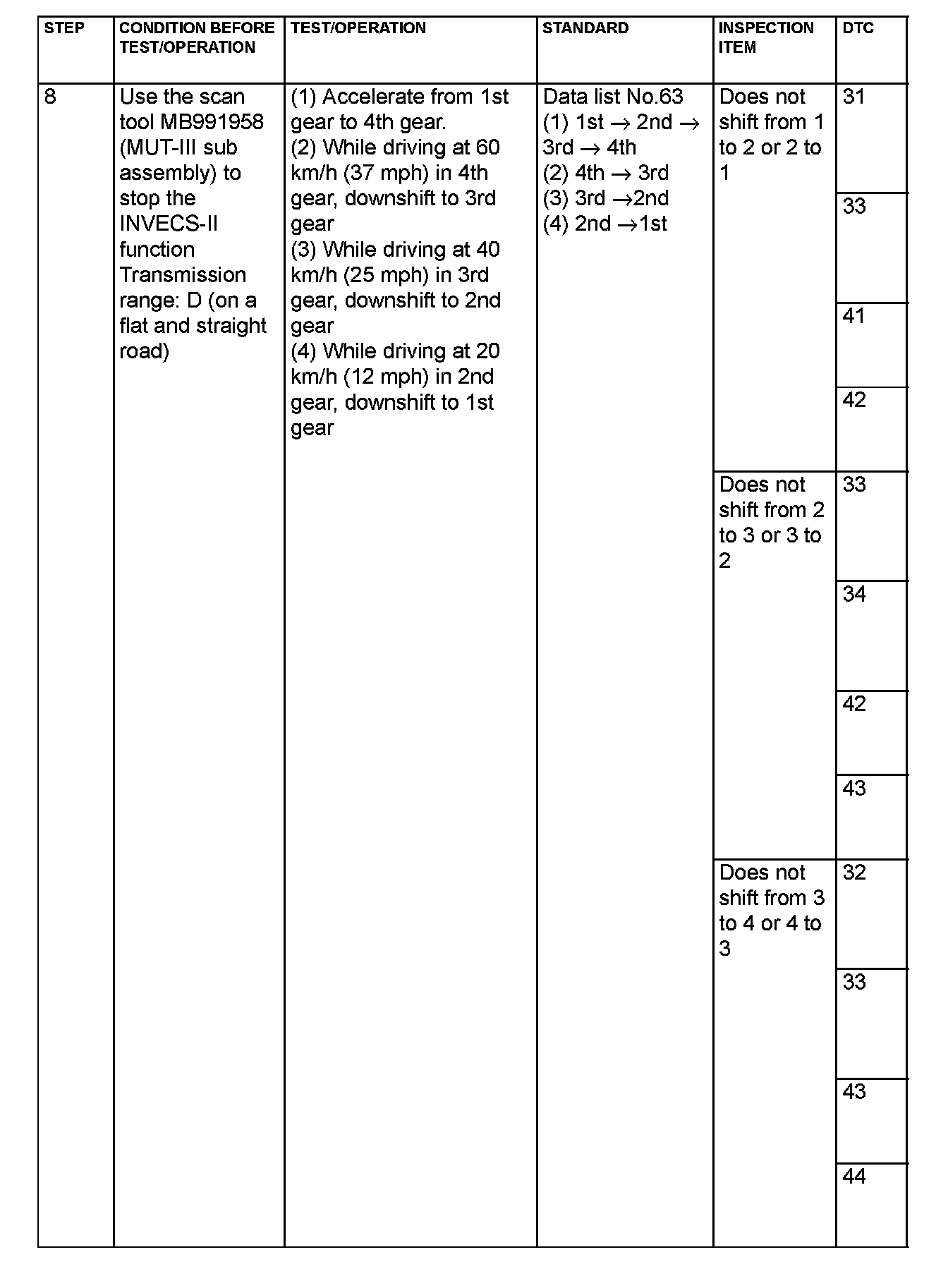

Step 8 (continued):

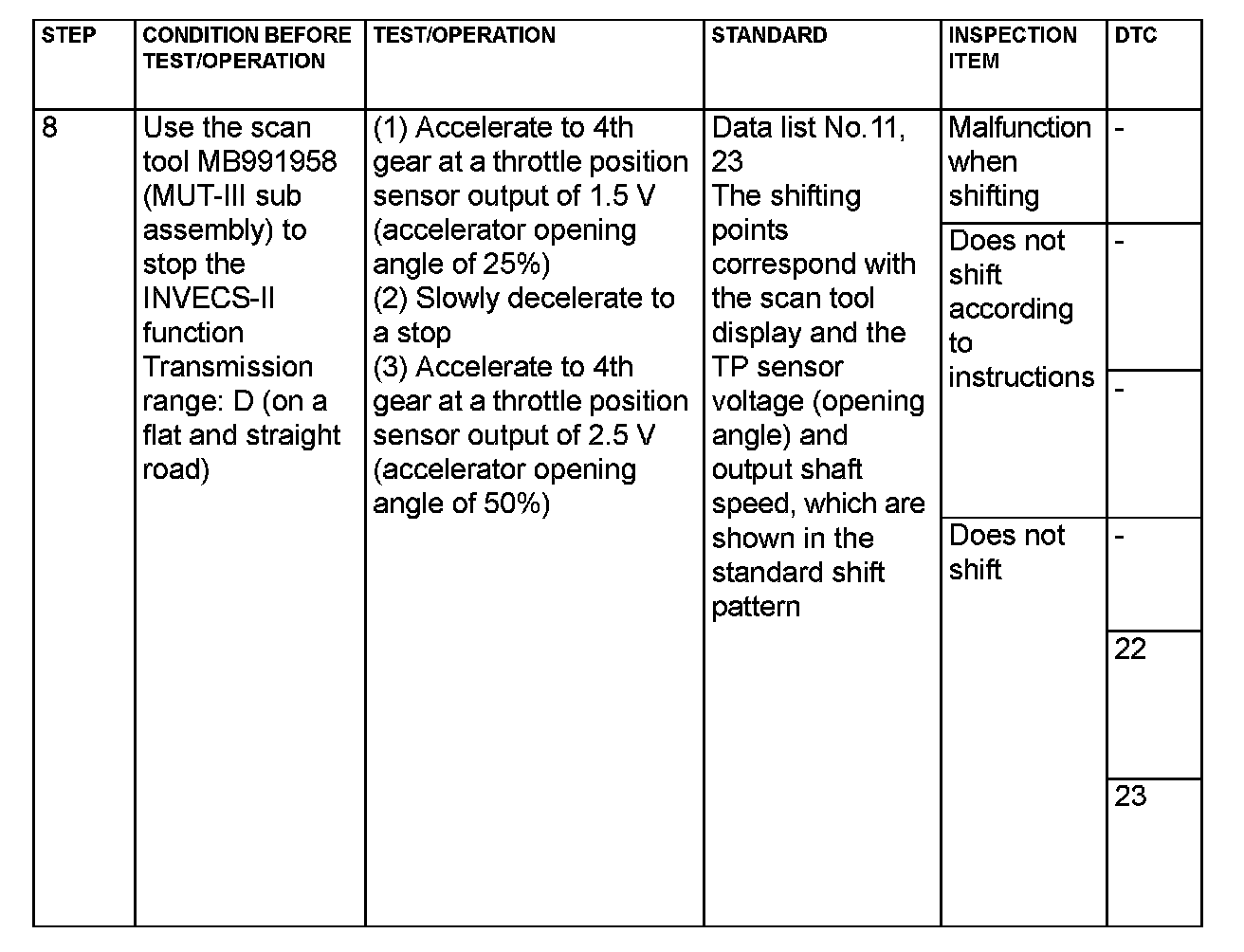

Step 8:

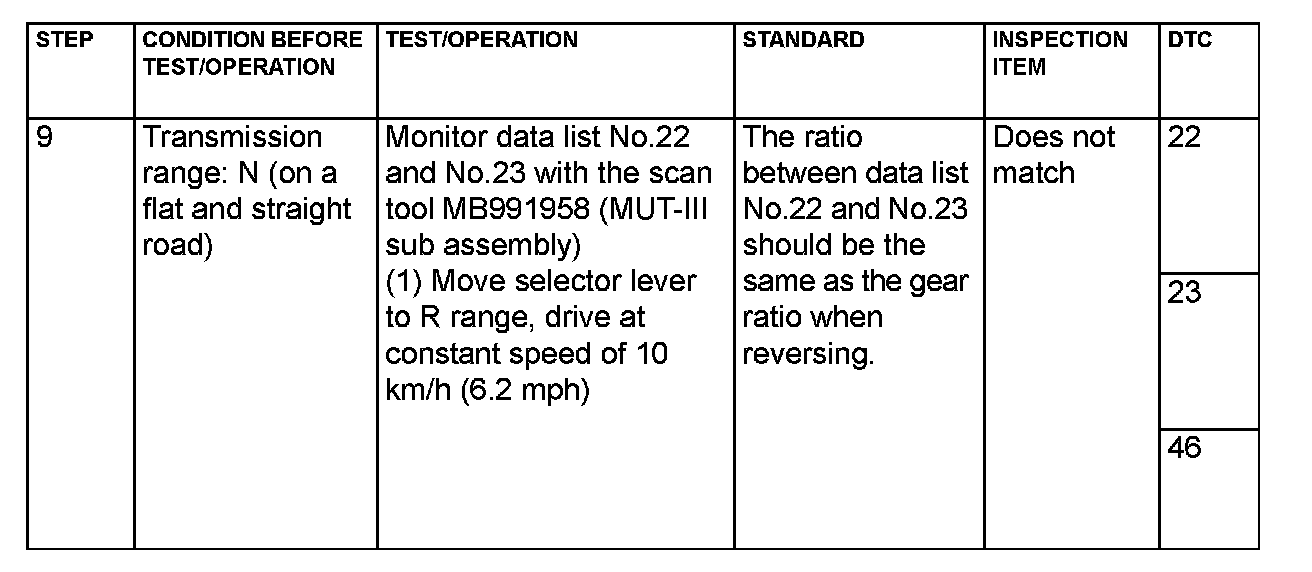

Step 9:





Check using the following procedures.
