Throttle Cable/Linkage: Service and Repair

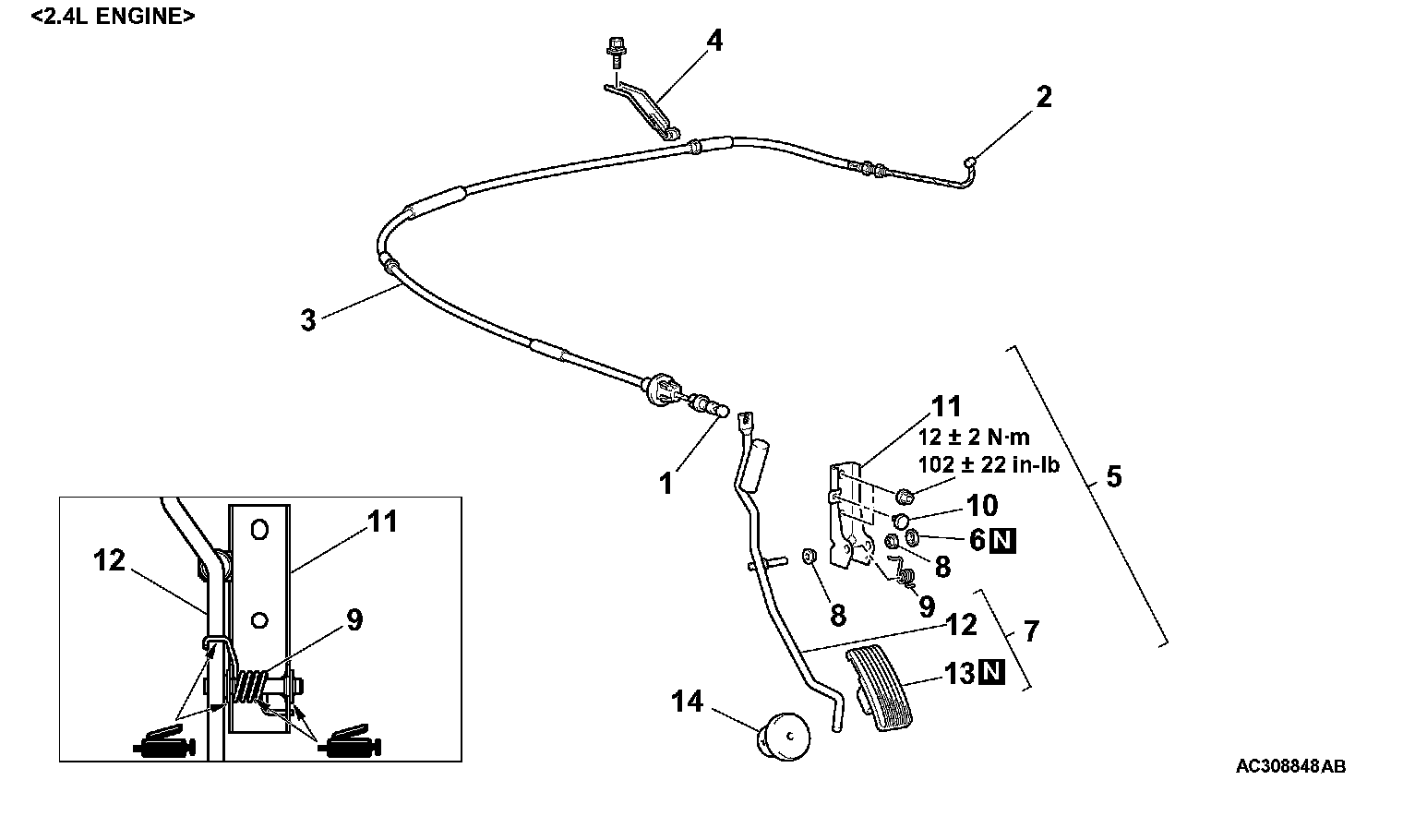

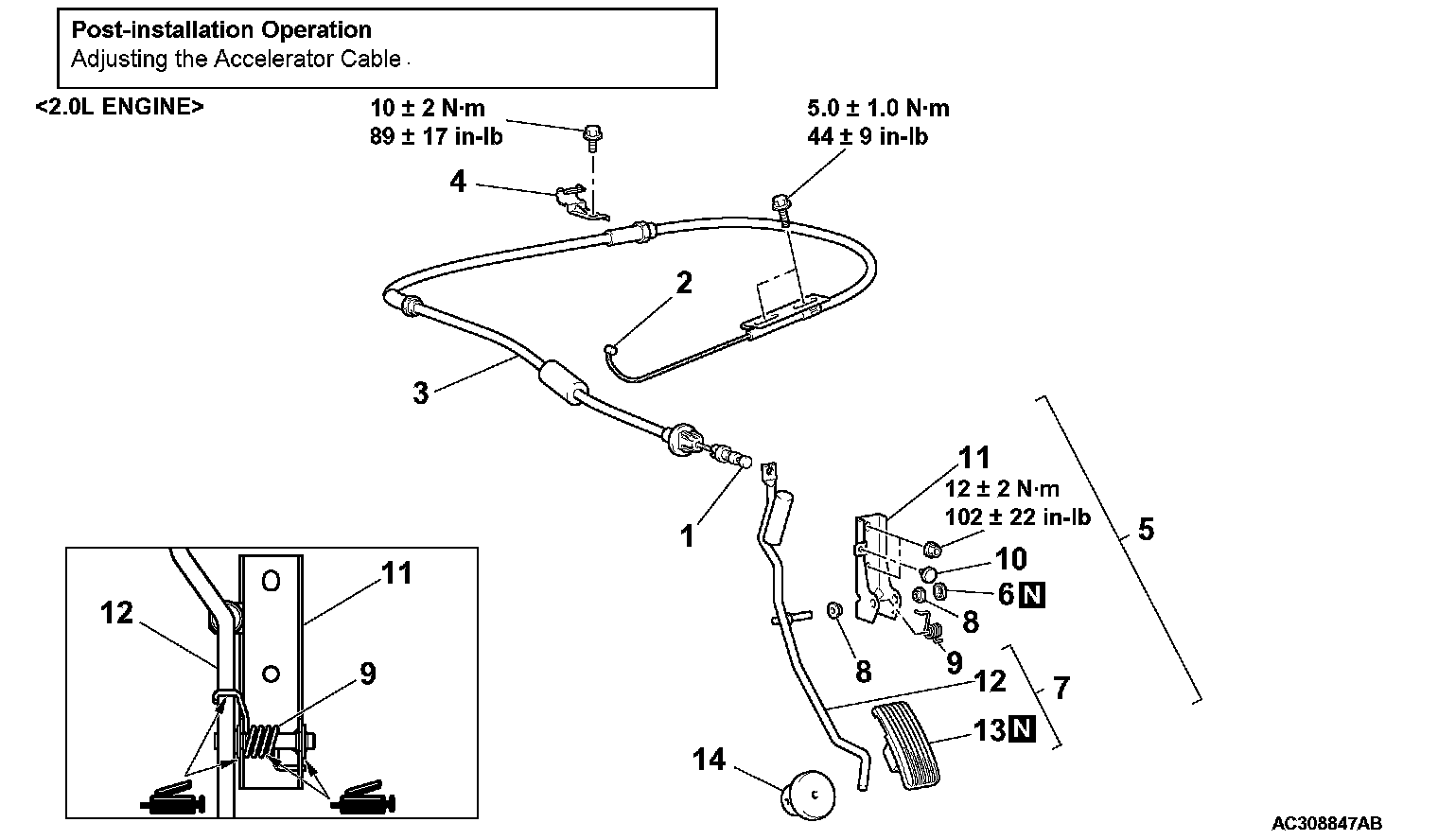

ACCELERATOR CABLE AND PEDAL

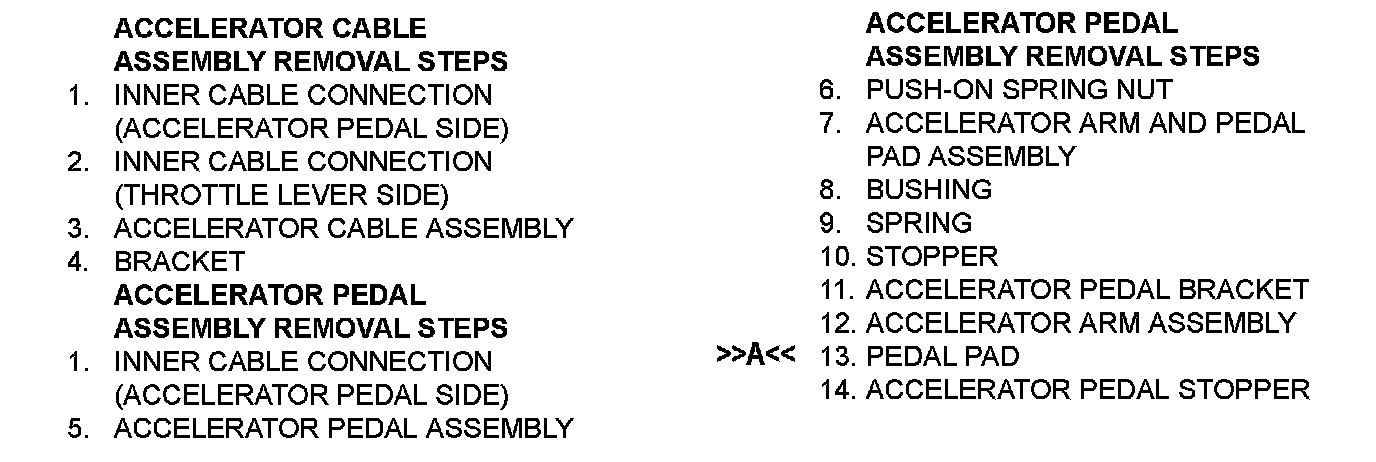

REMOVAL AND INSTALLATION












INSTALLATION SERVICE POINT

>>A<< ACCELERATOR PEDAL PAD INSTALLATION

Warm the peg of the accelerator pedal pad with a dryer before installing the pad.

NOTE: If it is difficult to fit, apply soapy water to the peg lightly.
