Removal and Installation

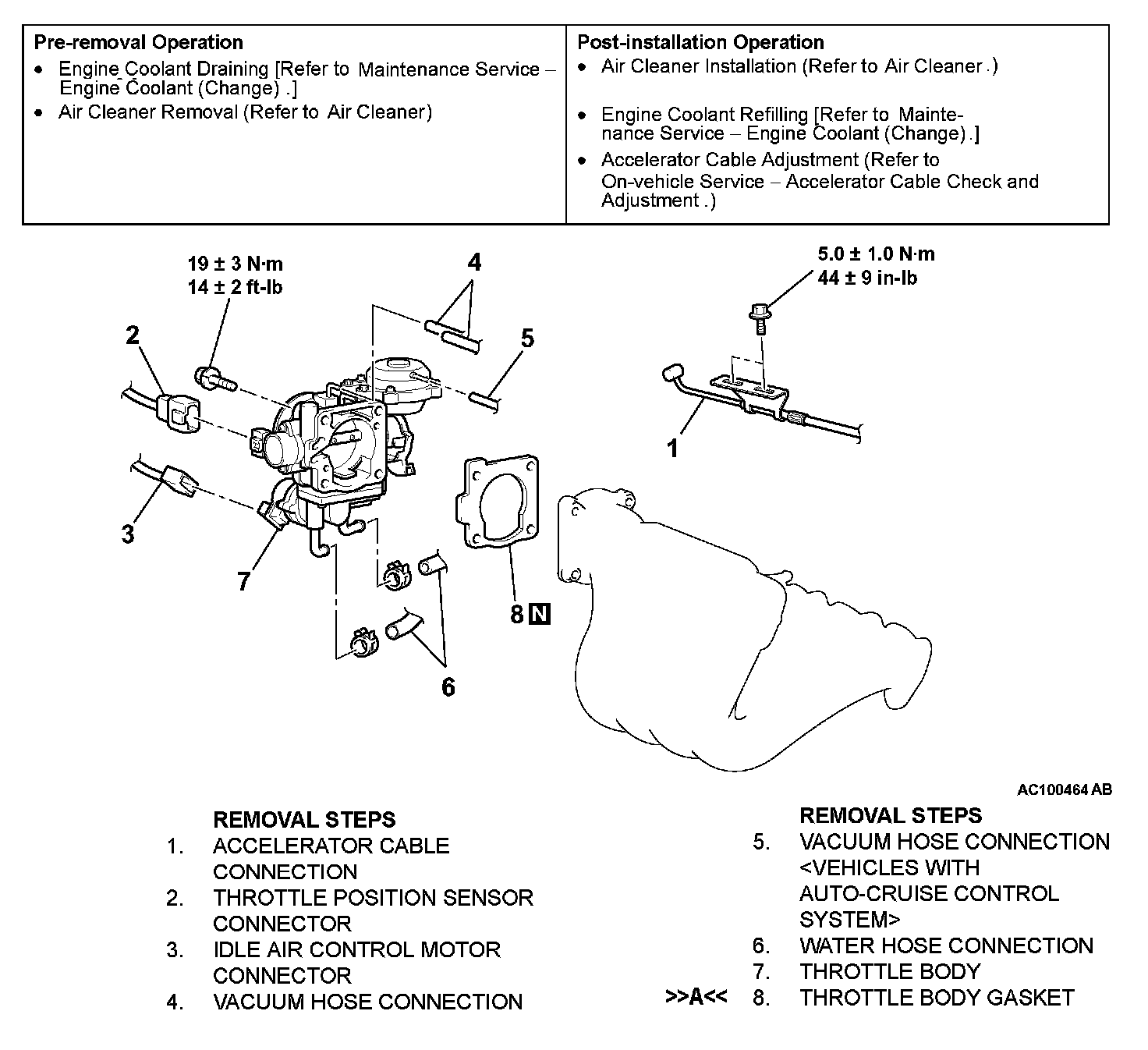

THROTTLE BODY ASSEMBLY

REMOVAL AND INSTALLATION






INSTALLATION SERVICE POINT









>>A<< THROTTLE BODY GASKET INSTALLATION

CAUTION: Poor idling etc. may result if the throttle body gasket is installed incorrectly.

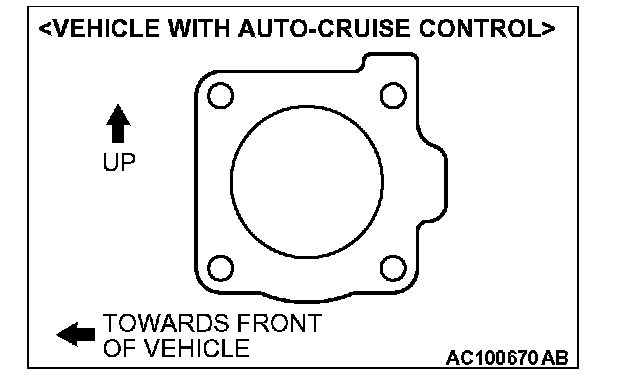

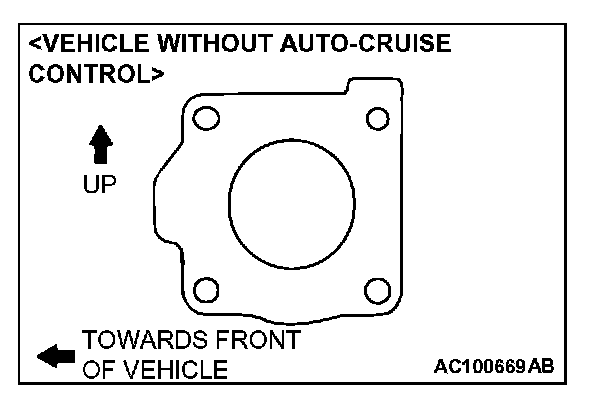

Install the throttle body gasket as shown in the illustration.
